GXV390 K1 DEP3 (GEAD) - Honda Engine, Made in USA (SN: GEAD-6000001 - GEAD-9999999) CARBURETOR (2) Parts Diagram

Engine, Made in USA

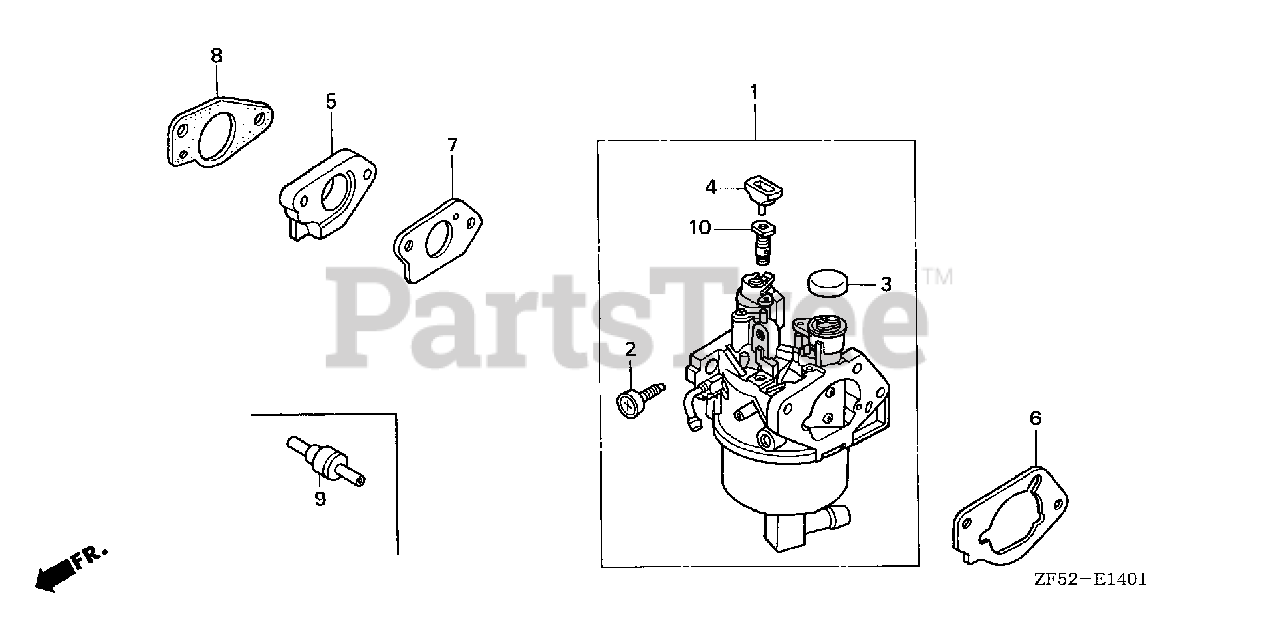

CARBURETOR (2) Parts Diagram

  • Title
1

Honda 16100-ZF5-V53

CARBURETOR ASSY. (BEL7A C)

$130.99

$

Usually ships in 3-6 days

0

2

Honda 16124-ZE0-005

SCREW, THROTTLE STOP

$17.99

$

In Stock, only 1 left!

0

3

Honda 16148-141-881

CAP, CHOKE DUST

$6.49

$

In Stock, only 1 left!

0

4

Honda 16172-ZE3-W10

COLLAR, SETTING

$10.99

$

Usually ships in 3-6 days

0

5

Honda 16211-ZF5-003

INSULATOR, CARBURETOR

$

$

Not available

6

Honda 16220-ZA0-702

SEE PART DETAILS - PRI; SPACER, CARBURETOR

$11.99

$

Usually ships in 3-6 days

0

7

Honda 16221-ZF6-800

GASKET, CARBURETOR

$2.49

$

In Stock, Qty 17

0

8

Honda 16223-ZE9-800

GASKET, INSULATOR

$2.99

$

In Stock, Qty 5

0

9

Honda 36135-PH3-004

VALVE, DASHPOT CHECK

$87.99

$

Usually ships in 3-6 days

0

10

Honda 99104-ZE9-0450

JET, PILOT (#45)
(Superseded to 99204-ZE2-0450)

$15.99

$

In Stock, only 2 left!

0
