GXV390 K1 DAA (GJAA) - Honda Engine, Made in USA (SN: GJAA-6000001 - GJAA-9999999) STARTER MOTOR Parts Diagram

Engine, Made in USA

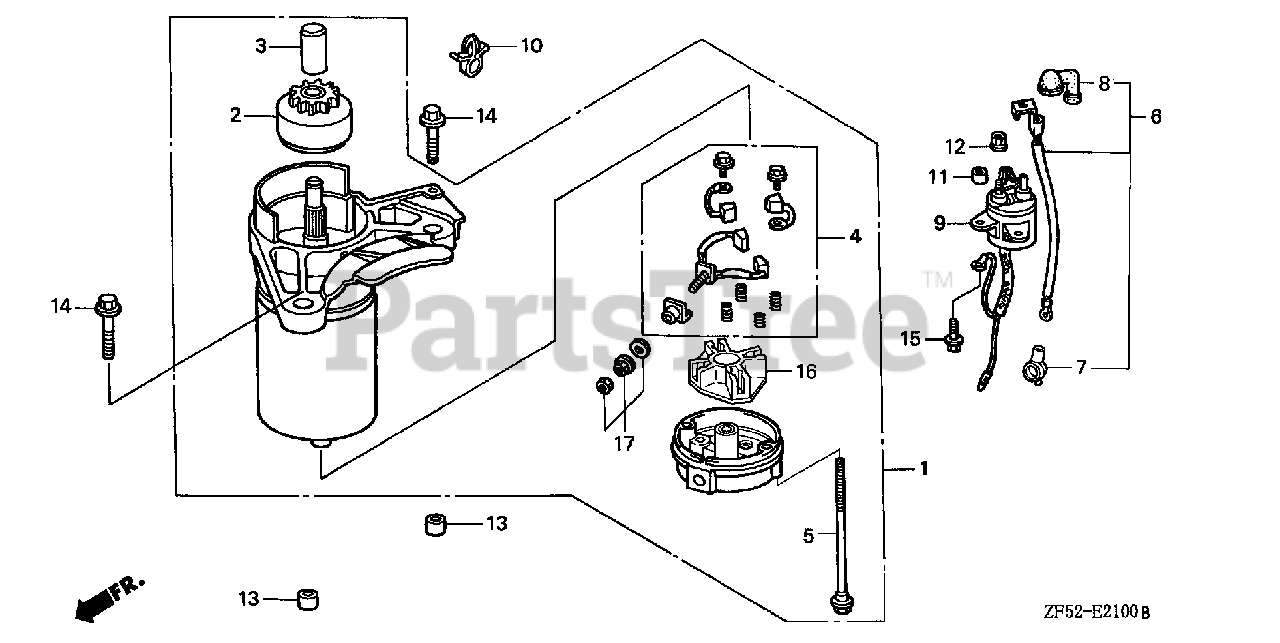

STARTER MOTOR Parts Diagram

  • Title
1

Honda 31200-ZF5-L32

STARTER MOTOR ASSY.

$218.99

$

Usually ships in 3-6 days

0

2

Honda 31206-ZF5-L31

DRIVE ASSY.

$126.99

$

Usually ships in 3-6 days

0

3

Honda 31225-ZF5-L31

STOPPER SET, PINION

$83.99

$

Usually ships in 3-6 days

0

4

Honda 31226-ZJ1-004

SEE PART DETAILS - SUP; BRUSH SET
(Superseded to 31226-ZF5-L31)

$23.99

$

Usually ships in 3-6 days

0

5

Honda 31261-ZJ1-004

BOLT, THROUGH

$3.99

$

Usually ships in 3-6 days

0

13

Honda 94301-10120

SEE PART DETAILS - PRI; PIN, DOWEL (10X12)

$3.49

$

Usually ships in 3-6 days

0

14

Honda 95701-08035-00

BOLT, FLANGE (8X35)

$2.99

$

In Stock, only 4 left!

0
