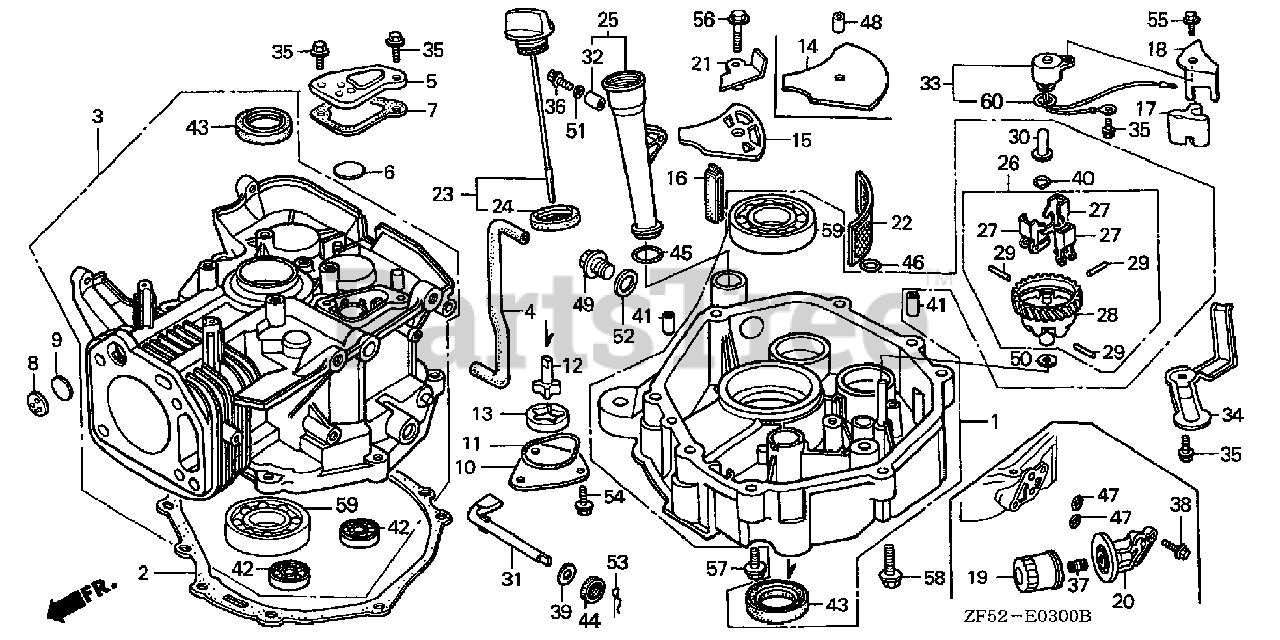

GXV390 K1 DAA (GJAA) - Honda Engine, Made in USA (SN: GJAA-6000001 - GJAA-9999999) CYLINDER + OIL PAN Parts Diagram

Engine, Made in USA

CYLINDER + OIL PAN Parts Diagram

  • Title

1

Honda 11300-ZF5-W22

SEE PART DETAILS - SUP; PAN ASSY., OIL
(Superseded to 11300-Z1E-407)

$454.99

$

Usually ships in 3-6 days

0

2

Honda 11381-ZE9-801

SEE PART DETAILS - PRI; GASKET, OIL PAN

$17.99

$

In Stock, only 3 left!

0

3

Honda 12000-ZF5-040

SEE PART DETAILS - SUP; CYLINDER ASSY.

$

$

Currently unavailable

3

Honda 12000-ZF5-405

SEE PART DETAILS - SUP; CYLINDER ASSY.

$

$

Currently unavailable

4

Honda 12315-ZF5-000

TUBE, BREATHER

$9.49

$

Usually ships in 3-6 days

0

5

Honda 12370-ZF5-000

CAP, BREATHER CHAMBER

$9.49

$

Usually ships in 3-6 days

0

6

Honda 12372-ZE2-300

VALVE, BREATHER

$3.99

$

In Stock, Qty 5

0

7

Honda 12373-ZE8-000

GASKET, BREATHER CAP

$3.49

$

Usually ships in 3-6 days

0

10

Honda 15130-ZE8-000

COVER, OIL PUMP

$9.99

$

Usually ships in 3-6 days

0

11

Honda 15131-ZE9-003

SEE PART DETAILS - PRI; O-RING, PUMP COVER

$4.49

$

In Stock, only 3 left!

0

12

Honda 15330-ZE8-000

ROTOR (INNER)

$23.99

$

Usually ships in 3-6 days

0

13

Honda 15332-891-003

ROTOR, OIL PUMP (OUTER)

$18.99

$

Usually ships in 3-6 days

0

14

Honda 15334-ZE8-010

PLATE, OIL FILTER

$4.99

$

Usually ships in 3-6 days

0

16

Honda 15335-ZE9-000

RUBBER, OIL RETURN

$6.49

$

Usually ships in 3-6 days

0

22

Honda 15421-ZE9-003

SCREEN, OIL FILTER

$15.99

$

In Stock, only 1 left!

0

23

Honda 15600-ZF5-000

CAP ASSY., OIL FILLER
(Superseded to 15600-Z5N-800)

$4.99

$

In Stock, only 2 left!

0

24

Honda 15625-ZE8-000

SEE PART DETAILS - PRI; GASKET, OIL FILLER CAP

$5.49

$

In Stock, only 1 left!

0

25

Honda 15630-ZE8-000

EXTENSION, OIL FILLER
(Superseded to 15630-Z5N-800)

$6.49

$

In Stock, only 1 left!

0

26

Honda 16510-ZE3-000

GOVERNOR ASSY.

$33.99

$

In Stock, only 1 left!

0

27

Honda 16511-ZE8-000

WEIGHT, GOVERNOR

$7.99

$

Usually ships in 3-6 days

0

28

Honda 16512-ZE3-000

HOLDER, GOVERNOR WEIGHT

$19.99

$

Usually ships in 3-6 days

0

29

Honda 16513-ZE2-000

PIN, GOVERNOR WEIGHT

$2.49

$

Usually ships in 3-6 days

0

30

Honda 16531-Z0A-000

SEE PART DETAILS - PRI; SLIDER, GOVERNOR

$3.99

$

In Stock, only 3 left!

0

31

Honda 16541-ZE8-010

SEE PART DETAILS - PRI; SHAFT, GOVERNOR ARM

$15.99

$

Usually ships in 3-6 days

0

32

Honda 17240-ZE6-000

COLLAR, EXTENSION

$4.99

$

In Stock, only 1 left!

0

35

Honda 90013-883-000

BOLT, FLANGE (6X12) (CT200)

$2.49

$

In Stock, Qty 17

0

36

Honda 90014-ZE6-000

BOLT, FLANGE (6X35) (CT200)

$2.99

$

In Stock, Qty 6

0

39

Honda 90406-VM6-000

WASHER, THRUST (8.1MM)

$3.99

$

Usually ships in 3-6 days

0

40

Honda 90602-ZE1-000

SEE PART DETAILS - PRI; CLIP, GOVERNOR HOLDER

$1.99

$

In Stock, only 3 left!

0

41

Honda 90701-HC4-000

PIN, DOWEL (8X12)

$3.99

$

In Stock, only 2 left!

0

42

Honda 91001-ZF5-003

BEARING, RADIAL BALL (6202)

$18.99

$

Usually ships in 3-6 days

0

43

Honda 91201-ZE3-004

OIL SEAL (35X52X8)

$11.99

$

In Stock, Qty 6

0

44

Honda 91201-ZE9-003

SEE PART DETAILS - PRI; OIL SEAL (8X14X5)

$5.49

$

In Stock, Qty 11

0

44

Honda 91203-952-771

SEE PART DETAILS - SUP; OIL SEAL (8X14X5)
(Superseded to 91201-ZE9-003)

$5.49

$

In Stock, Qty 11

0

45

Honda 91301-ZE9-003

SEE PART DETAILS - PRI; O-RING (22.1X2.2)

$2.49

$

In Stock, Qty 12

0

46

Honda 91302-ZE9-003

O-RING (11.8X2.4)

$3.49

$

Usually ships in 3-6 days

0

48

Honda 91501-ZF5-000

COLLAR, OIL FILTER SETTING

$3.99

$

Usually ships in 3-6 days

0

49

Honda 92800-20000

BOLT, DRAIN PLUG (20MM)

$7.49

$

Usually ships in 3-6 days

0

50

Honda 94101-06800

SEE PART DETAILS - PRI; WASHER, PLAIN (6MM)

$0.99

$

In Stock, Qty 20+

0

51

Honda 94103-06700

WASHER, PLAIN (6MM)

$0.99

$

In Stock, Qty 5

0

52

Honda 94109-20000

WASHER, DRAIN PLUG (20MM)

$1.99

$

In Stock, only 3 left!

0

53

Honda 94251-10000

PIN, LOCK (10MM)

$1.99

$

In Stock, Qty 5

0

54

Honda 95701-06012-00

SEE PART DETAILS - PRI; BOLT, FLANGE (6X12)

$2.49

$

In Stock, Qty 20+

0

56

Honda 95701-06025-00

BOLT, FLANGE (6X25)

$2.49

$

In Stock, Qty 8

0

57

Honda 95701-08040-08

BOLT, FLANGE (8X40)

$2.99

$

Usually ships in 3-6 days

0

58

Honda 95701-08060-08

BOLT, FLANGE (8X60)

$3.49

$

In Stock, only 1 left!

0

59

Honda 96100-62070-00

SEE PART DETAILS - PRI; BEARING, RADIAL BALL (6207)

$56.99

$

Usually ships in 3-6 days

0

59

Honda 96100-62073-00

SEE PART DETAILS - SUP; BEARING, RADIAL BALL (6207)
(Superseded to 96100-62070-00)

$56.99

$

Usually ships in 3-6 days

0
