GXV390 DAT (GJAA) - Honda Engine, Made in Japan (SN: GJAA-1000001 - GJAA-2063521) PISTON Parts Diagram

Engine, Made in Japan

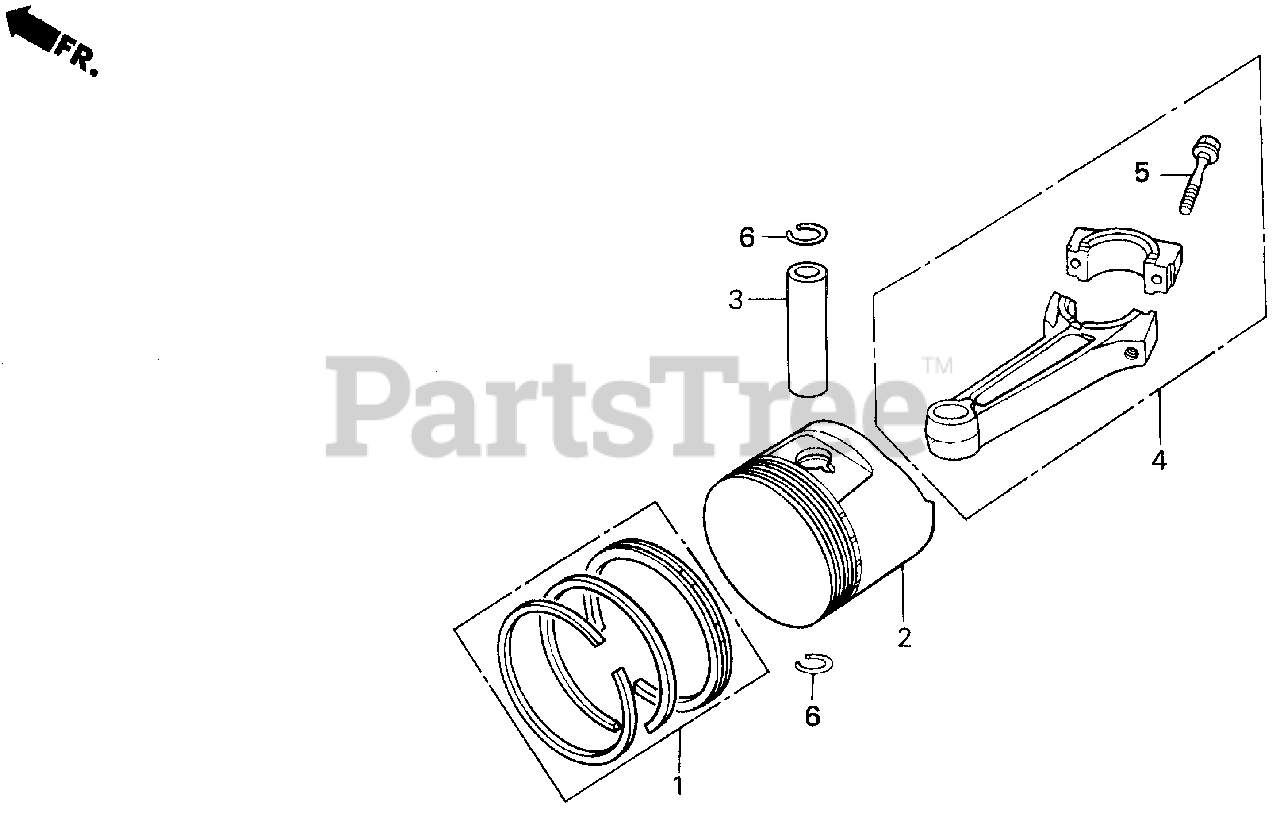

PISTON Parts Diagram

  • Title

1

Honda 13010-ZF6-003

SEE PART DETAILS - PRI; RING SET, PISTON (STD) (Honda Code 3134343).

$46.99

$

In Stock, Qty 5

0

1

Honda 13011-ZF6-003

SEE PART DETAILS - PRI; RING SET, PISTON (OS 0.25) (Honda Code 3134368).

Note: (Optional).

$74.99

$

Usually ships in 3-6 days

0

1

Honda 13012-ZF6-003

SEE PART DETAILS - SUP; RING SET, PISTON (OS 0.50) (Honda Code 3134384).

Note: (Optional).

$

$

Not available

1

Honda 13012-ZF6-005

SEE PART DETAILS - PRI; RING SET, PISTON (OS 0.50) (Honda Code 3134392).

Note: (Optional).

$73.99

$

Usually ships in 3-6 days

0

2

Honda 13101-ZF6-000

PISTON (STD) (Honda Code 3134400).

$135.99

$

Usually ships in 3-6 days

0

2

Honda 13102-ZF6-000

PISTON (OS 0.25) (Honda Code 3134418).

Note: (Optional).

$124.99

$

Usually ships in 3-6 days

0

2

Honda 13103-ZF6-000

PISTON (OS 0.50) (Honda Code 3134426).

Note: (Optional).

$124.99

$

Usually ships in 3-6 days

0

3

Honda 13111-ZF6-000

SEE PART DETAILS - PRI; PIN, PISTON (Honda Code 3134434).

$15.99

$

Usually ships in 3-6 days

0

4

Honda 13200-ZE9-010

SEE PART DETAILS - SUP; ROD ASSY., CONNECTING (Honda Code 2879948).
(Superseded to 13200-Z1E-000)

$154.99

$

Usually ships in 3-6 days

0

4

Honda 13200-ZE9-020

SEE PART DETAILS - PRI; ROD ASSY., CONNECTING (Honda Code 6840847).
(Superseded to 13200-Z1E-000)

$154.99

$

Usually ships in 3-6 days

0

4

Honda 13200-ZE9-315

SEE PART DETAILS - PRI; ROD ASSY., CONNECTING (Honda Code 2953107). (US 0.25)

Note: (Optional).

$

$

Not available

5

Honda 90001-ZE8-000

BOLT, CONNECTING ROD (Honda Code 2160489).

$4.49

$

In Stock, only 1 left!

0

6

Honda 90601-ZE3-000

CLIP, PISTON PIN (20MM) (Honda Code 2108579).

$2.49

$

In Stock, only 3 left!

0
