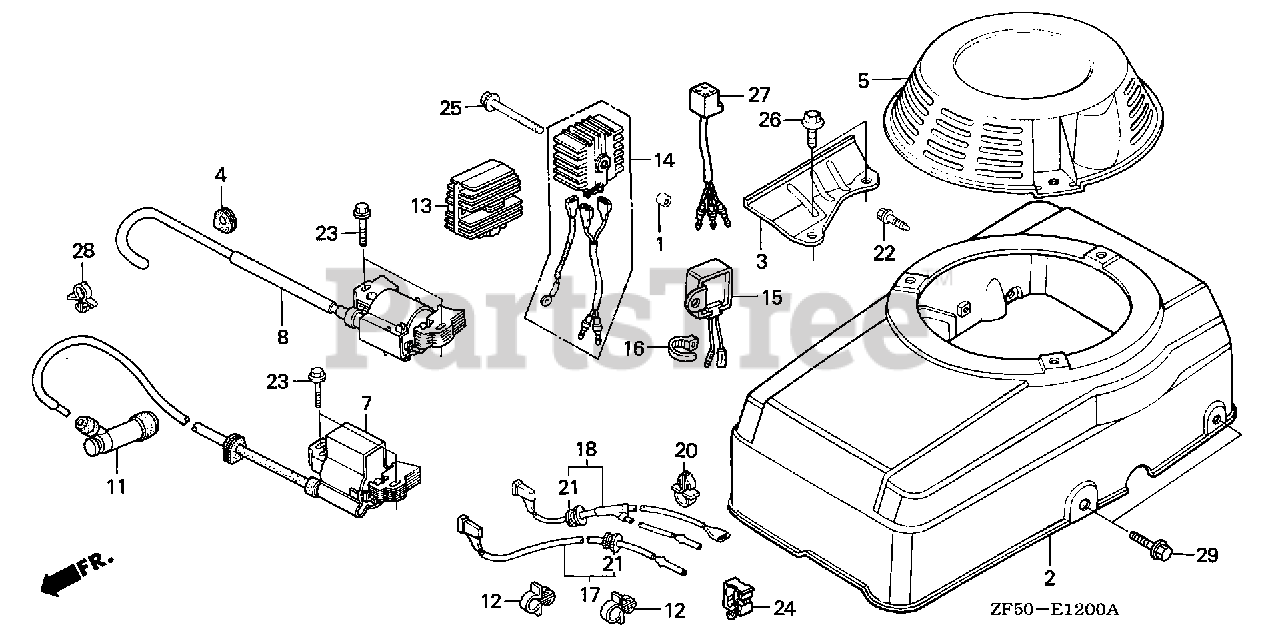

GXV390 DAT (GJAA) - Honda Engine, Made in Japan (SN: GJAA-1000001 - GJAA-2063521) FAN COVER + IGNITION COIL (1) Parts Diagram
Engine, Made in Japan
FAN COVER + IGNITION COIL (1) Parts Diagram
Honda 19610-ZF5-010ZA
SEE PART DETAILS - SUP; COVER, FAN *R8* (BRIGHT RED)
$
$
Not available
Honda 19610-ZF5-505
SEE PART DETAILS - PRI; COVER, FAN *R8* (BRIGHT RED)
$
$
Not available
Honda 19612-ZF5-000
SEE PART DETAILS - SUP; PLATE, SIDE Use up to Engine SN 2033446.
$
$
Currently unavailable
$9.99
$
Usually ships in 3-6 days
Honda 30500-ZF5-003
COIL ASSY., IGNITION
$
$
Not available
Honda 30700-ZF5-013
CAP ASSY., NOISE SUPPRESSOR
$27.99
$
In Stock, only 2 left!
Honda 30701-883-000
SEE PART DETAILS - PRI; CLIP, IGNITION WIRE (8MM)
$3.99
$
In Stock, only 1 left!
Honda 36101-ZE8-810
WIRE, STOP SWITCH
$30.99
$
Usually ships in 3-6 days
Honda 80101-166-000
GROMMET, WIRE CORD
$3.49
$
Usually ships in 3-6 days
Honda 90013-883-000
BOLT, FLANGE (6X12) (CT200)
$2.49
$
In Stock, Qty 20+
Honda 90015-883-000
BOLT, FLANGE (6X28) (CT200)
$3.99
$
In Stock, Qty 9
Honda 95701-08020-08
BOLT, FLANGE (8X20)
$2.49
$
Usually ships in 3-6 days
