GXV390 DAT (GJAA) - Honda Engine, Made in Japan (SN: GJAA-1000001 - GJAA-2063521) CARBURETOR Parts Diagram

Engine, Made in Japan

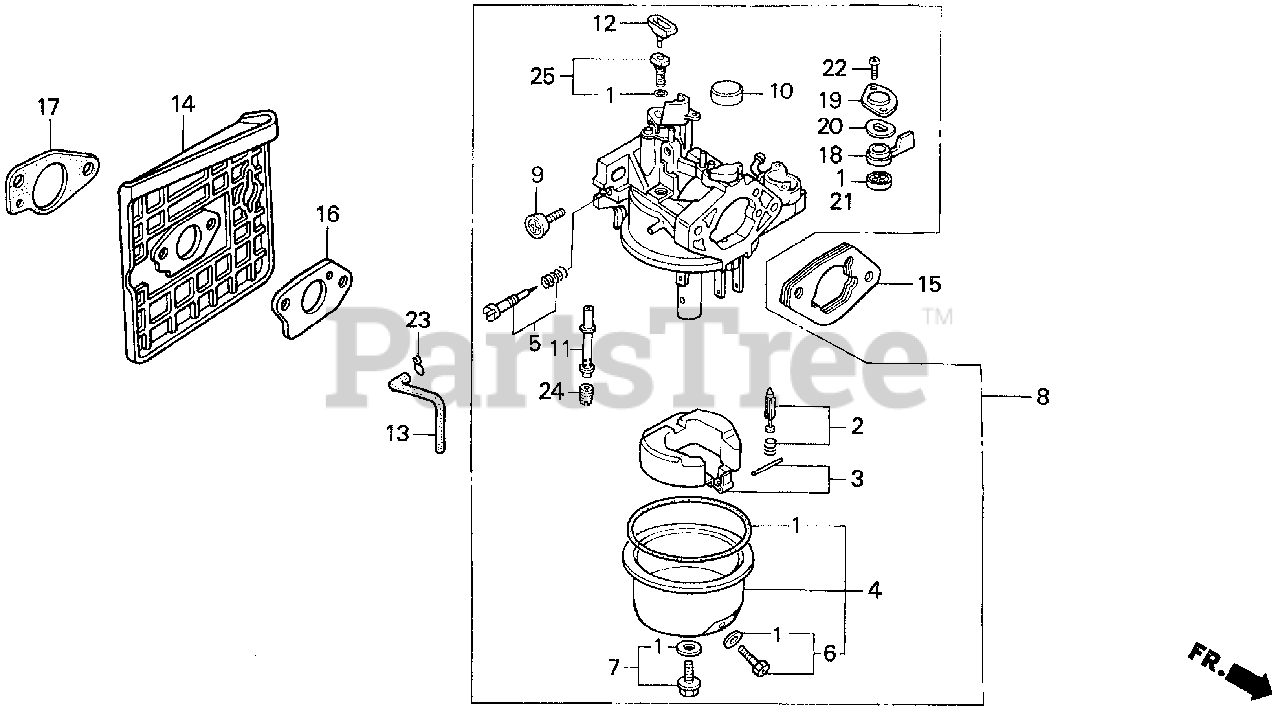

CARBURETOR Parts Diagram

  • Title

1

Honda 16010-ZE2-005

SEE PART DETAILS - SUP; GASKET SET (Honda Code 2089985).
(Superseded to 16010-ZE2-015)

Note: Use up to Engine SN BE32A A.

$21.99

$

In Stock, only 2 left!

0

1

Honda 16010-ZE2-015

SEE PART DETAILS - PRI; GASKET SET (Honda Code 3521176).

Note: Use up to Engine SN BE32A A.

$21.99

$

In Stock, only 2 left!

0

1

Honda 16010-ZE2-015

SEE PART DETAILS - PRI; GASKET SET (Honda Code 3521176).

Note: Use from Engine SN BE32A B.

$21.99

$

In Stock, only 2 left!

0

2

Honda 16011-ZA0-931

VALVE SET, FLOAT (Honda Code 2059236).

$47.99

$

In Stock, only 4 left!

0

3

Honda 16013-ZA0-931

FLOAT SET (Honda Code 2059244).

$53.99

$

In Stock, only 1 left!

0

4

Honda 16015-ZE8-005

SEE PART DETAILS - PRI; CHAMBER SET, FLOAT (Honda Code 2089993).

$48.99

$

Usually ships in 3-6 days

0

5

Honda 16016-ZF6-005

SCREW SET (Honda Code 3134475).

$14.99

$

Usually ships in 3-6 days

0

6

Honda 16024-ZE1-811

SCREW SET, DRAIN (Honda Code 1672187).

$11.99

$

In Stock, only 3 left!

0

7

Honda 16028-ZE0-005

SEE PART DETAILS - PRI; SCREW SET B (Honda Code 1441518).
(Superseded to 16028-ZK7-S91)

$14.99

$

In Stock, Qty 8

0

8

Honda 16100-ZF5-000

SEE PART DETAILS - SUP; CARBURETOR ASSY. (BE32A A) (Honda Code 3134483).

Note: Use up to Engine SN 1003931.

$

$

Currently unavailable

8

Honda 16100-ZF5-025

SEE PART DETAILS - PRI; CARBURETOR ASSY. (BE32A C) (Honda Code 5348479).

Note: Use up to Engine SN 1003931.

$168.99

$

Usually ships in 3-6 days

0

8

Honda 16100-ZF5-025

SEE PART DETAILS - PRI; CARBURETOR ASSY. (BE32A C) (Honda Code 5348479).

Note: Use from Engine SN 1003932.

$168.99

$

Usually ships in 3-6 days

0

9

Honda 16124-ZE0-005

SCREW, THROTTLE STOP (Honda Code 1441559).

$18.99

$

In Stock, only 1 left!

0

10

Honda 16148-141-881

SEE PART DETAILS - PRI; CAP, CHOKE LEVER DUST (Honda Code 2110468).

$7.49

$

Usually ships in 3-6 days

0

11

Honda 16166-ZF6-005

NOZZLE, MAIN (Honda Code 3134491).

$33.99

$

Usually ships in 3-6 days

0

13

Honda 16199-ZE8-000

TUBE, AIR VENT (75MM) (Honda Code 2278406).

$6.49

$

Usually ships in 3-6 days

0

14

Honda 16211-ZF5-003

INSULATOR, CARBURETOR (Honda Code 3134509).

$

$

Not available

15

Honda 16220-ZA0-702

SEE PART DETAILS - PRI; SPACER, CARBURETOR (Honda Code 2686533).

$12.99

$

In Stock, Qty 20+

0

16

Honda 16221-ZF6-000

SEE PART DETAILS - SUP; GASKET, CARBURETOR (Honda Code 3134517). (NOT AVAILABLE)

$

$

Currently unavailable

16

Honda 16221-ZF6-800

SEE PART DETAILS - PRI; GASKET, CARBURETOR (Honda Code 3713161).

$2.99

$

In Stock, Qty 20+

0

17

Honda 16223-ZE9-000

SEE PART DETAILS - SUP; GASKET, INSULATOR (Honda Code 2271385). (NOT AVAILABLE)

$

$

Currently unavailable

17

Honda 16223-ZE9-800

SEE PART DETAILS - PRI; GASKET, INSULATOR (Honda Code 4145777).

$3.49

$

In Stock, only 1 left!

0

18

Honda 16953-ZE1-405

SEE PART DETAILS - PRI; LEVER, VALVE (Honda Code 6365407).

$

$

Not available

19

Honda 16954-ZE1-812

SEE PART DETAILS - PRI; PLATE, LEVER SETTING (Honda Code 5148135).

$4.49

$

In Stock, Qty 11

0

20

Honda 16956-ZE1-811

SPRING, VALVE LEVER (Honda Code 1807809).

$4.49

$

In Stock, Qty 9

0

21

Honda 16957-ZE1-811

SEE PART DETAILS - SUP; GASKET, VALVE (Honda Code 1807817).
(Superseded to 16957-ZE1-812)

Note: Use up to Engine SN BE32A A.

$4.99

$

In Stock, Qty 20+

0

21

Honda 16957-ZE1-812

SEE PART DETAILS - PRI; GASKET, VALVE (Honda Code 3440708).

Note: Use up to Engine SN BE32A A.

$4.99

$

In Stock, Qty 20+

0

21

Honda 16957-ZE1-812

SEE PART DETAILS - PRI; GASKET, VALVE (Honda Code 3440708).

Note: Use from Engine SN BE32A B.

$4.99

$

In Stock, Qty 20+

0

22

Honda 93500-03008-0G

SEE PART DETAILS - PRI; SCREW, PAN (3X8) (Honda Code 0420505).

Note: Use from Engine SN BE32A B.

$

$

Not available

22

Honda 93500-03008-0H

SEE PART DETAILS - PRI; SCREW, PAN (3X8) (Honda Code 0374694).

Note: Use up to Engine SN BE32A A.

$0.99

$

In Stock, Qty 8

0

23

Honda 95002-02080

CLIP, TUBE (B8) (Honda Code 0250647).

$2.49

$

In Stock, Qty 20+

0

24

Honda 99101-ZF5-0900

JET, MAIN (#90) (Honda Code 3134640).
(Superseded to 99101-ZH8-0900)

Note: (Optional).

$8.99

$

In Stock, only 2 left!

0

24

Honda 99101-ZF5-0920

JET, MAIN (#92) (Honda Code 3134657).

Note: (Optional).

$12.99

$

Usually ships in 3-6 days

0

24

Honda 99101-ZF5-0950

JET, MAIN (#95) (Honda Code 3134665).

$12.99

$

In Stock, only 2 left!

0

25

Honda 99204-ZA0-0400

JET SET, PILOT (#40) (Honda Code 2097400).

$25.99

$

Usually ships in 3-6 days

0
