GXV390 DAET (GJAA) - Honda Engine, Made in Japan (SN: GJAA-1000001 - GJAA-2063521) RECOIL STARTER (1) Parts Diagram

Engine, Made in Japan

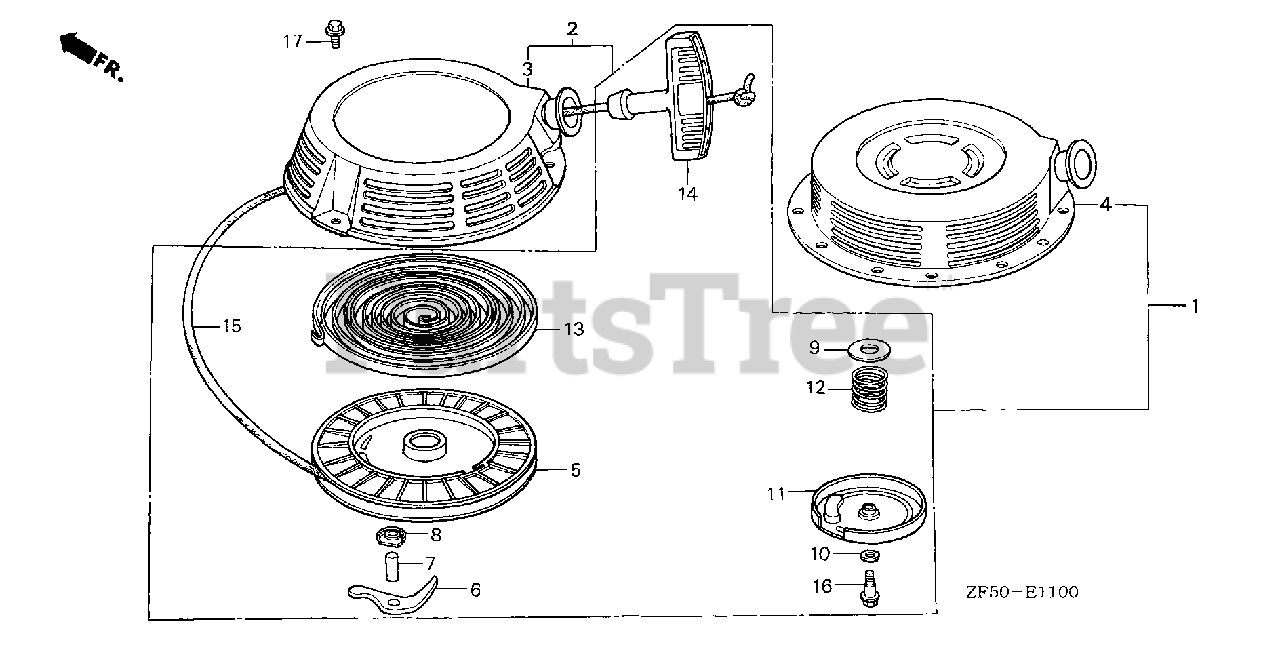

RECOIL STARTER (1) Parts Diagram

  • Title

2

Honda 28400-ZE9-003ZA

SEE PART DETAILS - SUP; STARTER ASSY., RECOIL *R8* Use up to Engine SN 2013098.

$

$

Not available

3

Honda 28410-ZE8-003ZA

CASE, RECOIL STARTER *R8* Use up to Engine SN 2013098.

$

$

Currently unavailable

5

Honda 28420-ZE8-812

SEE PART DETAILS - PRI; REEL, STARTER

Note: Use up to Engine SN 2013098.

$56.99

$

In Stock, only 2 left!

0

6

Honda 28422-ZE8-811

RATCHET, STARTER

Note: Use up to Engine SN 2013098.

$

$

Not available

7

Honda 28423-ZE1-711

SHAFT, RATCHET

Note: Use up to Engine SN 2013098.

$8.99

$

Usually ships in 3-6 days

0

8

Honda 28424-ZE1-711

SEE PART DETAILS - SUP; PLATE, GUIDE
(Superseded to 28424-ZE1-712)

Note: Use up to Engine SN 2013098.

$4.99

$

Usually ships in 3-6 days

0

8

Honda 28424-ZE1-712

SEE PART DETAILS - PRI; PLATE, GUIDE

Note: Use up to Engine SN 2013098.

$4.99

$

Usually ships in 3-6 days

0

9

Honda 28431-ZE1-711

PLATE A, FRICTION

Note: Use up to Engine SN 2013098.

$3.99

$

Usually ships in 3-6 days

0

10

Honda 28432-ZG0-003

SEE PART DETAILS - SUP; PLATE B, FRICTION

Note: Use up to Engine SN 2013098.

$2.99

$

Usually ships in 3-6 days

0

10

Honda 28432-ZG0-004

SEE PART DETAILS - SUP; PLATE B, FRICTION
(Superseded to 28432-883-T20)

Note: Use up to Engine SN 2013098.

$2.99

$

Usually ships in 3-6 days

0

11

Honda 28434-ZE8-811

SEE PART DETAILS - SUP; COVER, STARTER REEL
(Superseded to 28434-ZE8-812)

Note: Use up to Engine SN 2013098.

$10.99

$

Usually ships in 3-6 days

0

11

Honda 28434-ZE8-812

SEE PART DETAILS - PRI; COVER, STARTER REEL

Note: Use up to Engine SN 2013098.

$10.99

$

Usually ships in 3-6 days

0

12

Honda 28441-ZE1-711

SEE PART DETAILS - SUP; SPRING, FRICTION

Note: Use up to Engine SN 2013098.

$3.49

$

Usually ships in 3-6 days

0

13

Honda 28442-ZE1-711

SEE PART DETAILS - SUP; SPRING, RETURN
(Superseded to 28442-ZE1-713)

Note: Use up to Engine SN 2013098.

$21.99

$

Usually ships in 3-6 days

0

13

Honda 28442-ZE1-713

SEE PART DETAILS - PRI; SPRING, RETURN

Note: Use up to Engine SN 2013098.

$21.99

$

Usually ships in 3-6 days

0

14

Honda 28461-889-631

GRIP, STARTER

Note: Use up to Engine SN 2013098.

$10.99

$

In Stock, Qty 14

0

15

Honda 28462-ZE8-811

ROPE, STARTER (N/A: USE ALT P/N 08560-ZG921-11)

Note: Use up to Engine SN 2013098.

$

$

Currently unavailable

16

Honda 90003-ZG0-003

BOLT, REEL COVER

Note: Use up to Engine SN 2013098.

$

$

Not available

17

Honda 96001-06010-00

BOLT, FLANGE (6X10)

Note: Use up to Engine SN 2013098.

$2.49

$

Usually ships in 3-6 days

0
