GXV390 DAET (GJAA) - Honda Engine, Made in Japan (SN: GJAA-1000001 - GJAA-2063521) FLYWHEEL Parts Diagram

Engine, Made in Japan

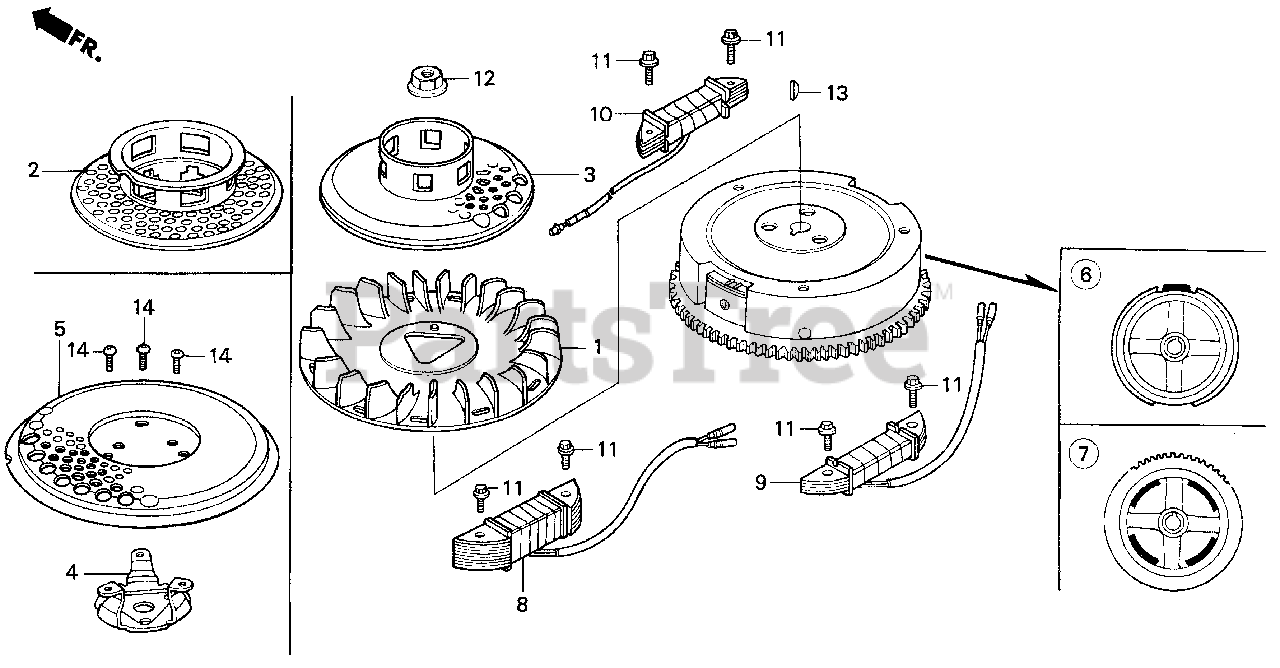

FLYWHEEL Parts Diagram

  • Title

1

Honda 19511-ZE9-010

SEE PART DETAILS - PRI; FAN, COOLING (Honda Code 2485407).
(Superseded to 19511-ZE9-020)

$10.99

$

Usually ships in 3-6 days

0

2

Honda 28450-ZE9-003

PULLEY, STARTER (Honda Code 2271583).

Note: Use up to Engine SN 2013098.

$

$

Currently unavailable

3

Honda 28450-ZE9-004

PULLEY, STARTER (SCREEN GRID) (Honda Code 4186342).

Note: Use from Engine SN 2013099.

$73.99

$

Usually ships in 3-6 days

0

7

Honda 31100-ZE9-804

SEE PART DETAILS - PRI; FLYWHEEL (Honda Code 5335914).

$

$

Not available

9

Honda 31630-ZF5-003

COIL ASSY., CHARGE (Honda Code 3132198).

$83.99

$

Usually ships in 3-6 days

0

11

Honda 90015-883-000

BOLT, FLANGE (6X28) (Honda Code 0636852).

$3.99

$

In Stock, Qty 8

0

12

Honda 90201-ZE3-790

NUT, SPECIAL (16MM) (Honda Code 2326908).

$12.99

$

Usually ships in 3-6 days

0

13

Honda 90741-ZE2-000

KEY, SPECIAL WOODRUFF (25X18) (Honda Code 2027159).

$4.49

$

In Stock, Qty 16

0
