GXV390 DAET (GJAA) - Honda Engine, Made in Japan (SN: GJAA-1000001 - GJAA-2063521) FLYWHEEL Parts Diagram

Engine, Made in Japan

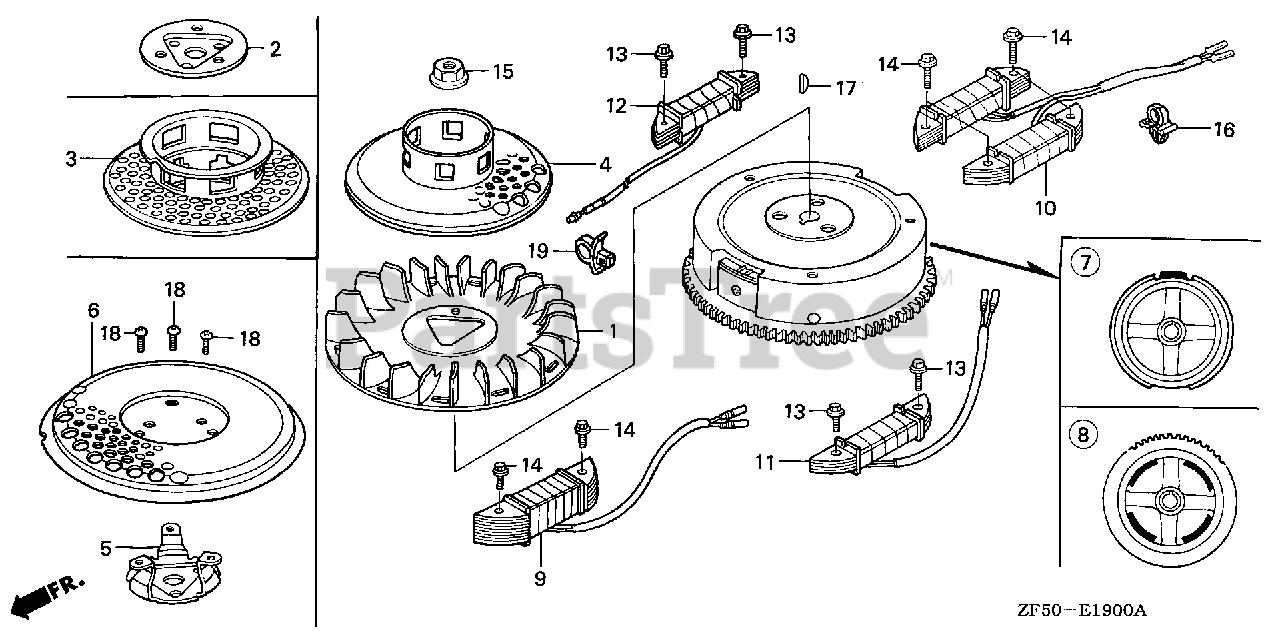

FLYWHEEL Parts Diagram

  • Title

1

Honda 19511-ZE9-010

FAN, COOLING
(Superseded to 19511-ZE9-020)

$9.99

$

Usually ships in 3-6 days

0

3

Honda 28450-ZE9-003

PULLEY, STARTER Use up to Engine SN 2013098.

$

$

Currently unavailable

4

Honda 28450-ZE9-004

PULLEY, STARTER (SCREEN GRID)

Note: Use from Engine SN 2013099.

$65.99

$

Usually ships in 3-6 days

0

8

Honda 31100-ZE9-804

FLYWHEEL (SEL-4POLE)

$

$

Not available

11

Honda 31630-ZF5-003

COIL ASSY., CHARGE (4A)

$76.99

$

Usually ships in 3-6 days

0

13

Honda 90015-883-000

BOLT, FLANGE (6X28) (CT200)

$3.99

$

In Stock, Qty 8

0

15

Honda 90201-ZE3-V00

NUT, SPECIAL (16MM)

Note: Use from Engine SN 2063198.

$9.99

$

Usually ships in 3-6 days

0

15

Honda 90201-ZE3-790

SEE PART DETAILS - PRI; NUT, SPECIAL (16MM)

Note: Use up to Engine SN 2063197.

$11.99

$

Usually ships in 3-6 days

0

17

Honda 90741-ZE2-000

KEY, SPECIAL WOODRUFF (25X18)

$3.99

$

In Stock, Qty 17

0
