GXV390 DAE (GJAA) - Honda Engine, Made in Japan (SN: GJAA-1000001 - GJAA-2063521) STARTER MOTOR Parts Diagram

Engine, Made in Japan

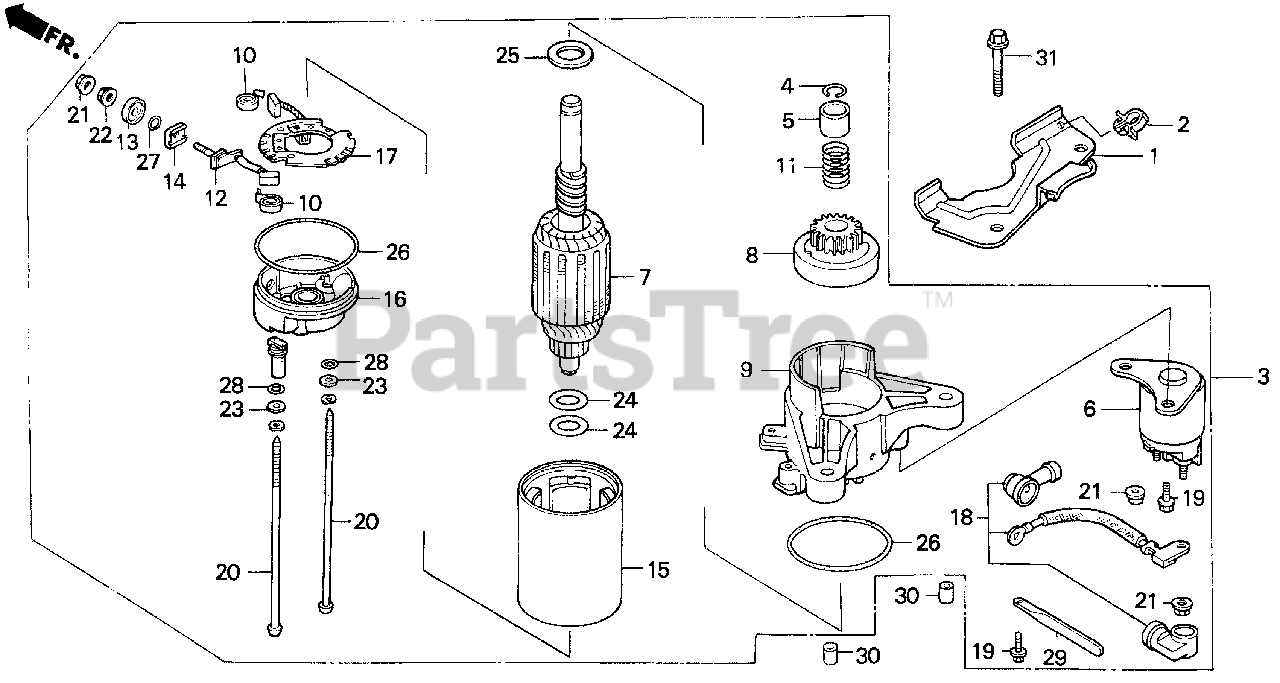

STARTER MOTOR Parts Diagram

  • Title

1

Honda 19612-ZF5-800

PLATE, SIDE (Honda Code 3132107).
(Superseded to 19612-ZF5-801)

Note: Use up to Engine SN 2013741.

$10.99

$

Usually ships in 3-6 days

0

1

Honda 19612-ZF5-801

PLATE, SIDE (Honda Code 4221164).

Note: Use from Engine SN 2013742.

$10.99

$

Usually ships in 3-6 days

0

2

Honda 30701-883-000

CLIP, IGNITION WIRE (8MM) (Honda Code 0636787).

$3.99

$

In Stock, only 1 left!

0

3

Honda 31200-ZE8-801

MOTOR ASSY., STARTER (Honda Code 2106482).

$661.99

$

Usually ships in 3-6 days

0

4

Honda 31201-ZA1-003

RING, SNAP (Honda Code 1238195).

$2.99

$

Usually ships in 3-6 days

0

5

Honda 31202-ZA1-003

COLLAR, CLUTCH (Honda Code 1238203).

$20.99

$

Usually ships in 3-6 days

0

6

Honda 31204-ZA0-003

SEE PART DETAILS - PRI; CONTACTOR ASSY. (Honda Code 2108298).

$155.99

$

In Stock, only 2 left!

0

7

Honda 31206-ZA1-003

ARMATURE (Honda Code 1238211).

$230.99

$

Usually ships in 3-6 days

0

8

Honda 31207-ZA1-003

CLUTCH, OVERRUNNING (Honda Code 1238229).

$199.99

$

Usually ships in 3-6 days

0

9

Honda 31208-ZE8-013

HOUSING, DRIVE SIDE (Honda Code 2171247).

$145.99

$

Usually ships in 3-6 days

0

10

Honda 31212-ZA0-700

SPRING, BRUSH (Honda Code 2110260).

$10.99

$

In Stock, only 1 left!

0

11

Honda 31212-ZE8-003

SPRING (Honda Code 2278984).

$5.49

$

Usually ships in 3-6 days

0

12

Honda 31215-ZA1-013

BRUSH (Honda Code 2059608).

$14.99

$

In Stock, only 3 left!

0

13

Honda 31216-ZA1-013

BUSHING, INSULATION (Honda Code 2059616).

$8.99

$

Usually ships in 3-6 days

0

14

Honda 31217-ZA1-013

BUSHING, INSULATION (Honda Code 2059624).

$14.99

$

Usually ships in 3-6 days

0

15

Honda 31218-ZA1-013

YOKE (Honda Code 2059632).

$168.99

$

Usually ships in 3-6 days

0

16

Honda 31219-ZE8-003

FRAME, STARTER END (Honda Code 2091254).

$58.99

$

Usually ships in 3-6 days

0

17

Honda 31206-HA0-004

SEE PART DETAILS - PRI; PLATE, BRUSH HOLDER (Honda Code 2379436).
(Superseded to 31231-ZA1-003)

$35.99

$

Usually ships in 3-6 days

0

18

Honda 31232-ZE8-003

WIRE, WATER COVER (Honda Code 2278992).

$15.99

$

Usually ships in 3-6 days

0

19

Honda 90101-ZA1-003

BOLT (Honda Code 1412410).

$

$

Not available

20

Honda 90102-ZA1-003

BOLT, THROUGH (Honda Code 1412428).

Note: Use up to Engine SN 2008435.

$

$

Not available

20

Honda 90102-ZA1-013

BOLT, THROUGH (Honda Code 4146692).

Note: Use from Engine SN 2008436.

$12.99

$

Usually ships in 3-6 days

0

21

Honda 90201-ZA1-003

NUT (Honda Code 1412436).

$3.49

$

Usually ships in 3-6 days

0

22

Honda 90202-ZA1-003

NUT (Honda Code 1412444).

$3.99

$

Usually ships in 3-6 days

0

23

Honda 90401-ZA1-003

WASHER, STEEL PLATE (Honda Code 1412451).

Note: Use up to Engine SN 2008435.

$

$

Currently unavailable

24

Honda 31214-HA0-682

SEE PART DETAILS - PRI; WASHER (Honda Code 2379477).

$

$

Not available

25

Honda 90403-ZA1-003

WASHER (Honda Code 1412477).

$3.49

$

Usually ships in 3-6 days

0

26

Honda 31212-HA0-682

SEE PART DETAILS - PRI; O-RING (Honda Code 2379469).

Note: Use up to Engine SN 2008435.

$4.99

$

Usually ships in 3-6 days

0

26

Honda 31212-HA0-682

SEE PART DETAILS - PRI; O-RING (Honda Code 2379469).

Note: Use from Engine SN 2008436.

$4.99

$

Usually ships in 3-6 days

0

27

Honda 91302-ZA1-013

O-RING (Honda Code 2060382).

$2.99

$

Usually ships in 3-6 days

0

28

Honda 91303-ZA1-003

O-RING (Honda Code 1412501).

Note: Use up to Engine SN 2008435.

$3.99

$

Usually ships in 3-6 days

0

29

Honda 91406-ZE8-000

CLAMP, WIRE (Honda Code 2106672).

$

$

Not available

30

Honda 94301-10160

SEE PART DETAILS - PRI; PIN A, DOWEL (10X16) (Honda Code 0058206).

$3.49

$

In Stock, only 3 left!

0

31

Honda 95701-08035-00

SEE PART DETAILS - PRI; BOLT, FLANGE (8X35) (Honda Code 2724029).

$3.49

$

Usually ships in 3-6 days

0

32

Honda 46391-VM0-003

CLIP A, BRAKE PIPE (Honda Code 1769652).

$3.49

$

Usually ships in 3-6 days

0
