GXV390 DA2 (GJAA) - Honda Engine, Made in Japan (SN: GJAA-1000001 - GJAA-2063521) CRANKSHAFT Parts Diagram

Engine, Made in Japan

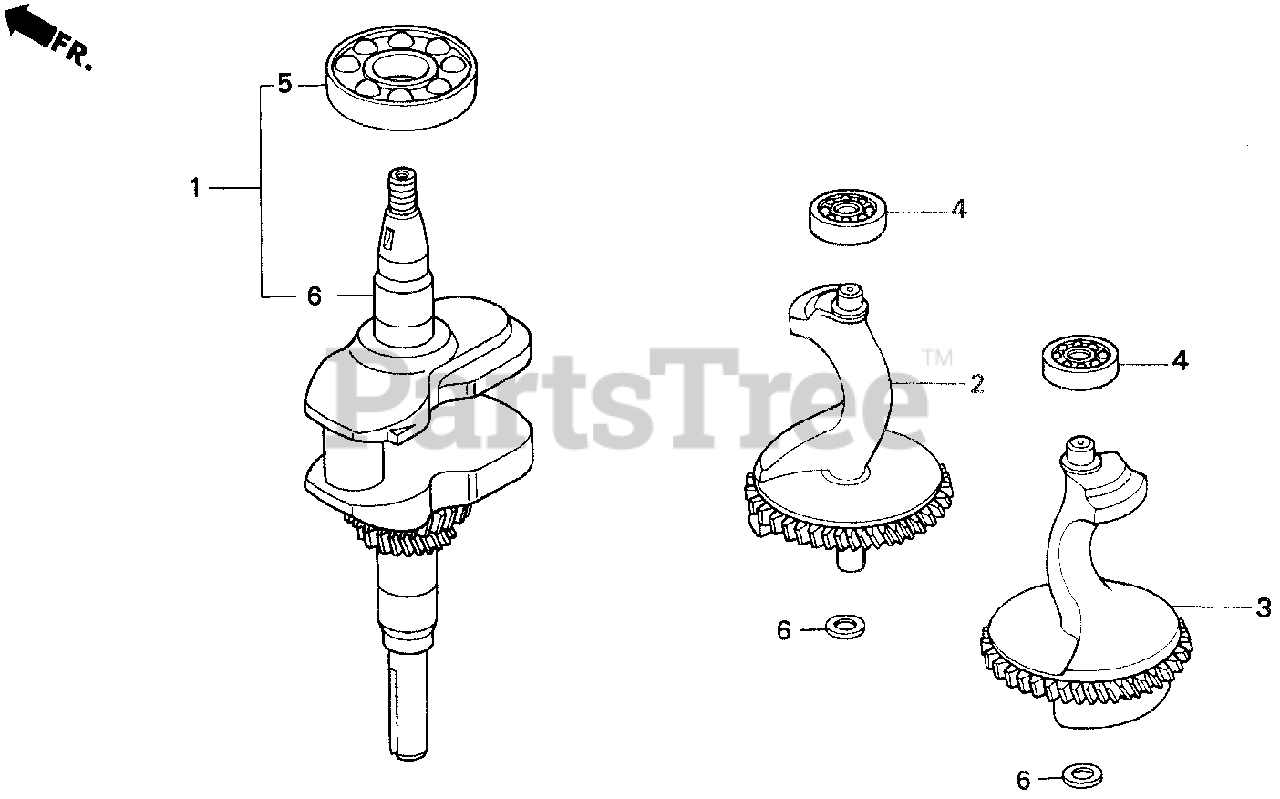

CRANKSHAFT Parts Diagram

  • Title
1

Honda 13310-ZF5-010

SEE PART DETAILS - PRI; CRANKSHAFT (Honda Code 3223781).

Note: Use up to Engine SN 1000149.

$

$

Currently unavailable

1

Honda 13310-ZF5-010

SEE PART DETAILS - PRI; CRANKSHAFT (Honda Code 3223781).

Note: Use up to Engine SN 2025307.

$

$

Currently unavailable

1

Honda 13310-ZF5-020

CRANKSHAFT (Honda Code 4618435).

Note: Use from Engine SN 2025308.

$

$

Not available

2

Honda 13351-ZF5-000

WEIGHT A, BALANCER (Honda Code 3134442).

Note: Use up to Engine SN 2025252.

$196.99

$

Usually ships in 3-6 days

0

2

Honda 13351-ZF5-010

WEIGHT A, BALANCER (Honda Code 4608360).

Note: Use from Engine SN 2025253 to 2052276.

$223.99

$

Usually ships in 3-6 days

0

2

Honda 13351-ZF5-020

WEIGHT A, BALANCER (Honda Code 4892899).

Note: Use from Engine SN 2052277 to 2061107.

$

$

Currently unavailable

2

Honda 13351-ZF5-030

WEIGHT A, BALANCER (Honda Code 4947917).

Note: Use from Engine SN 2061108.

$272.99

$

Usually ships in 3-6 days

0

3

Honda 13356-ZF5-000

WEIGHT B, BALANCER (Honda Code 3134459).

Note: Use up to Engine SN 2025252.

$

$

Not available

3

Honda 13356-ZF5-010

WEIGHT B, BALANCER (Honda Code 4608378).

Note: Use from Engine SN 2025253 to 2052276.

$223.99

$

Usually ships in 3-6 days

0

3

Honda 13356-ZF5-030

SEE PART DETAILS - PRI; WEIGHT B, BALANCER (Honda Code 4906830).

Note: Use from Engine SN 2052277 to 2061107.

$

$

Currently unavailable

3

Honda 13356-ZF5-040

WEIGHT B, BALANCER (Honda Code 4949780).

Note: Use from Engine SN 2061108.

$268.99

$

Usually ships in 3-6 days

0

4

Honda 91001-ZF5-003

BEARING, RADIAL BALL (6202) (Honda Code 3132263).

$18.99

$

Usually ships in 3-6 days

0

5

Honda 96100-62070-00

BEARING, RADIAL BALL (6207) (Honda Code 0997320).

Note: Use up to Engine SN 2059326.

$56.99

$

Usually ships in 3-6 days

0

5

Honda 96100-62073-00

SEE PART DETAILS - PRI; BEARING, RADIAL BALL (6207) (Honda Code 0572206).
(Superseded to 96100-62070-00)

Note: Use up to Engine SN 2059326.

$56.99

$

Usually ships in 3-6 days

0

6

Honda 13310-ZF5-030

SEE PART DETAILS - SUP; CRANKSHAFT (Honda Code 4788683).

Note: Use from Engine SN 2059327.

$

$

Currently unavailable

6

Honda 90417-HA0-000

WASHER, THRUST (14MM) (Honda Code 1824507).

Note: Use from Engine SN 2052277.

$5.49

$

Usually ships in 3-6 days

0
