GXV340 UT2 DN4 (GJACT) - Honda Engine, Made in Thailand (SN: GJACT-1000001 - GJACT-9999999) CARBURETOR (1) Parts Diagram

Engine, Made in Thailand

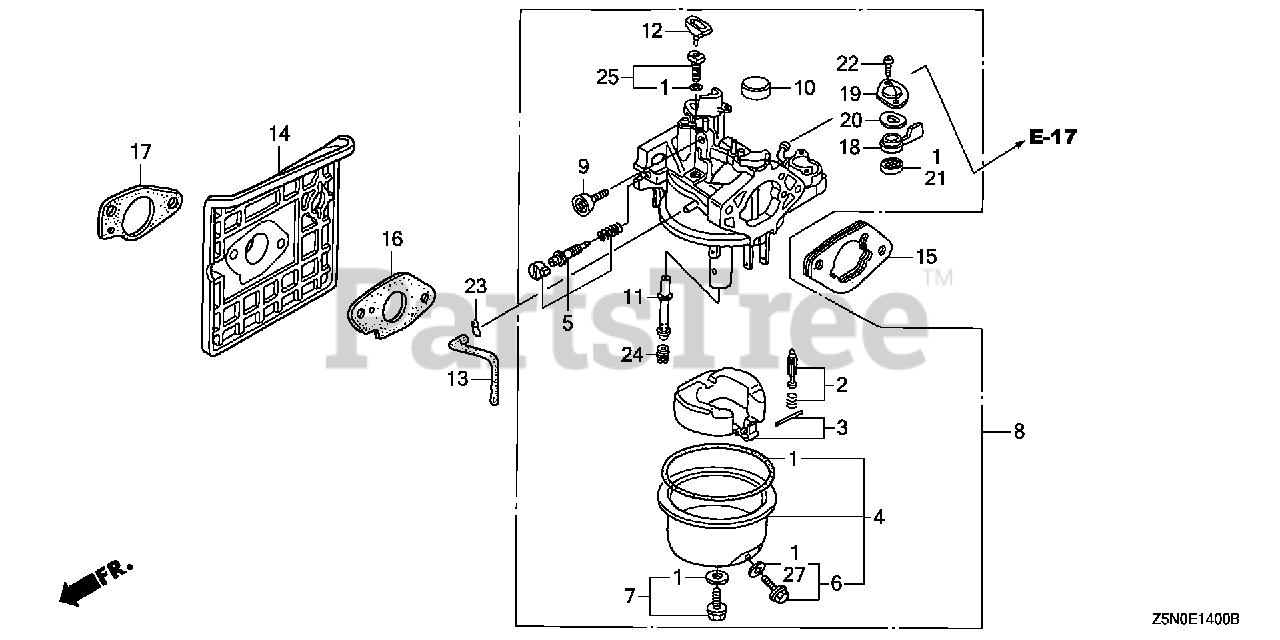

CARBURETOR (1) Parts Diagram

  • Title

1

Honda 16010-ZE2-015

SEE PART DETAILS - PRI; GASKET SET (EXCEPT 16173-001-004)

$20.99

$

In Stock, only 2 left!

0

2

Honda 16011-ZA0-931

VALVE SET, FLOAT

$45.99

$

In Stock, only 1 left!

0

3

Honda 16013-Z1C-003

FLOAT SET

$55.99

$

Usually ships in 3-6 days

0

4

Honda 16015-ZE8-005

CHAMBER SET, FLOAT

$46.99

$

Usually ships in 3-6 days

0

5

Honda 16016-ZH7-W01

SCREW SET, PILOT

$21.99

$

In Stock, only 1 left!

0

6

Honda 16024-ZE1-811

SCREW SET, DRAIN

$10.99

$

In Stock, only 3 left!

0

7

Honda 16028-ZE0-005

SEE PART DETAILS - SUP; SCREW SET
(Superseded to 16028-ZK7-S91)

$13.99

$

In Stock, only 1 left!

0

7

Honda 16028-ZK7-S91

SEE PART DETAILS - PRI; SCREW SET

$13.99

$

In Stock, only 1 left!

0

8

Honda 16100-Z1F-W02

SEE PART DETAILS - PRI; CARBURETOR ASSY. (BE81H B)

Note: Use up to Engine SN 1046840.

$46.99

$

Usually ships in 3-6 days

0

8

Honda 16100-Z5N-801

CARBURETOR ASSY. (BE81M A)

Note: Use from Engine SN 1046841.

$52.99

$

Usually ships in 3-6 days

0

9

Honda 16124-ZE0-005

SCREW, THROTTLE STOP

$17.99

$

In Stock, only 1 left!

0

10

Honda 16148-141-881

SEE PART DETAILS - PRI; CAP, CHOKE DUST

$6.99

$

In Stock, only 1 left!

0

11

Honda 16166-ZE9-W01

NOZZLE, MAIN

$24.99

$

Usually ships in 3-6 days

0

12

Honda 16172-ZE3-W10

COLLAR, SETTING

$10.99

$

Usually ships in 3-6 days

0

13

Honda 16199-ZE8-000

TUBE, AIR VENT (75MM)

$5.99

$

Usually ships in 3-6 days

0

14

Honda 16211-ZE9-601

INSULATOR, CARBURETOR

$23.99

$

In Stock, only 1 left!

0

15

Honda 16220-ZA0-702

SPACER, CARBURETOR

$11.99

$

In Stock, Qty 5

0

16

Honda 16221-ZE3-800

SEE PART DETAILS - PRI; GASKET, CARBURETOR

Note: Use up to Engine SN 1036815.

$2.99

$

In Stock, Qty 20+

0

16

Honda 16221-Z8T-000

GASKET, CARBURETOR

Note: Use from Engine SN 1036816.

$4.99

$

In Stock, Qty 11

0

17

Honda 16223-ZE9-800

GASKET, INSULATOR

$3.49

$

In Stock, Qty 5

0

18

Honda 16953-ZE1-712

LEVER, PETCOCK

$11.99

$

Usually ships in 3-6 days

0

19

Honda 16954-ZE1-812

PLATE, LEVER SETTING

$4.49

$

In Stock, only 1 left!

0

20

Honda 16956-ZE1-811

SEE PART DETAILS - PRI; SPRING, PETCOCK LEVER

$4.49

$

Usually ships in 3-6 days

0

21

Honda 16957-ZE1-812

SEE PART DETAILS - PRI; GASKET, PETCOCK

$4.49

$

In Stock, Qty 20+

0

22

Honda 93500-03006-0H

SCREW, PAN (3X6)

$1.49

$

In Stock, only 3 left!

0

23

Honda 95002-02080

CLIP, TUBE (B8)

$2.49

$

In Stock, Qty 20+

0

24

Honda 99101-ZH8-0880

SEE PART DETAILS - PRI; JET, MAIN (#88)

Note: (Optional).

$8.49

$

In Stock, only 1 left!

0

24

Honda 99101-ZH8-0900

JET, MAIN (#90)

Note: (Optional).

$8.49

$

In Stock, only 2 left!

0

24

Honda 99101-ZH8-0920

JET, MAIN (#92)

$8.49

$

In Stock, only 1 left!

0

25

Honda 99204-ZE0-0380

JET SET, PILOT (#38)

$23.99

$

In Stock, only 2 left!

0
