GXV340 UT2 DN2 (GJACT) - Honda Engine, Made in Thailand (SN: GJACT-1000001 - GJACT-9999999) MUFFLER Parts Diagram

Engine, Made in Thailand

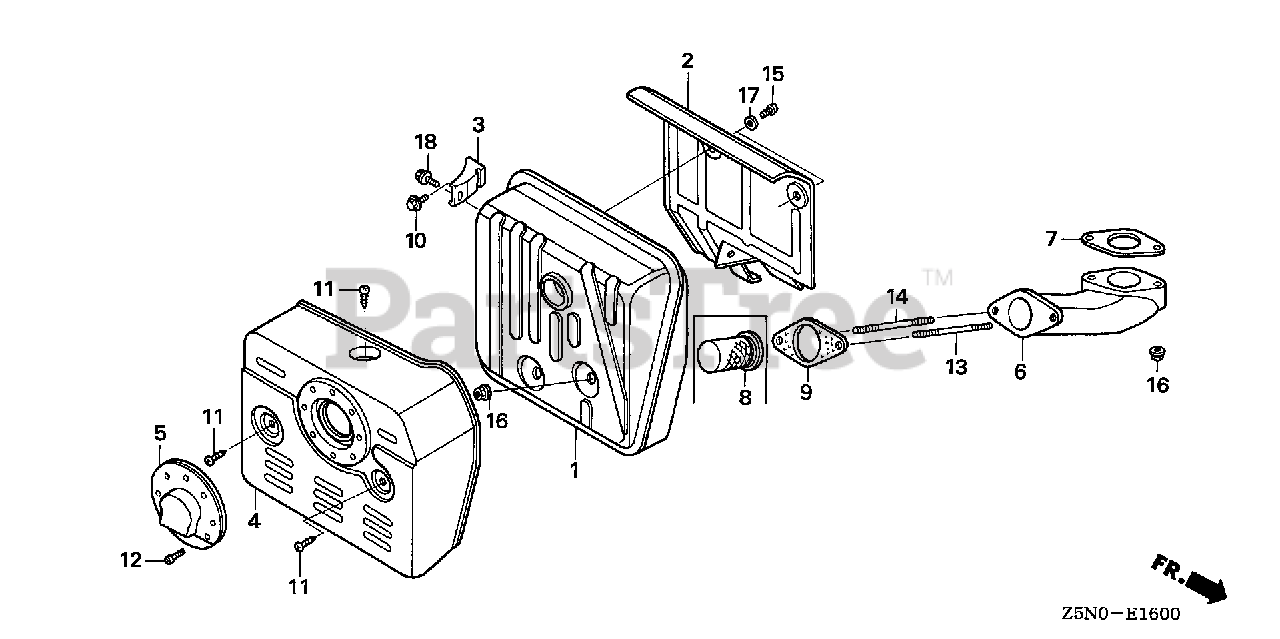

MUFFLER Parts Diagram

  • Title
1

Honda 18310-Z1E-000

MUFFLER
(Superseded to 18310-Z1E-010)

Note: Use up to Engine SN 1046388.

$153.99

$

Usually ships in 3-6 days

0

1

Honda 18310-Z1E-010

MUFFLER

Note: Use from Engine SN 1046389.

$153.99

$

Usually ships in 3-6 days

0

2

Honda 18316-ZF5-V00

SEPARATOR, MUFFLER

$

$

Not available

3

Honda 18318-ZE8-000

STAY, MUFFLER

$11.99

$

Usually ships in 3-6 days

0

4

Honda 18321-ZF5-010

PROTECTOR, MUFFLER

$15.99

$

Usually ships in 3-6 days

0

5

Honda 18331-ZE2-810

CAP, MUFFLER

$11.99

$

Usually ships in 3-6 days

0

6

$76.99

$

Usually ships in 3-6 days

0

7

Honda 18333-ZE3-800

SEE PART DETAILS - SUP; GASKET, EX. PIPE
(Superseded to 18333-ZK6-Y00)

Note: Use up to Engine SN 1018581.

$4.99

$

In Stock, Qty 20+

0

7

Honda 18333-ZK6-Y00

SEE PART DETAILS - PRI; GASKET, EX. PIPE

Note: Use up to Engine SN 1018581.

$4.99

$

In Stock, Qty 20+

0

7

Honda 18333-Z1C-801

GASKET, EX. PIPE

Note: Use from Engine SN 1018582.

$3.49

$

In Stock, only 1 left!

0

9

Honda 18382-ZE9-800

GASKET, EX. PIPE

Note: Use up to Engine SN 1018581.

$12.99

$

In Stock, only 1 left!

0

9

Honda 18382-Z1F-801

GASKET, EX. PIPE

Note: Use from Engine SN 1018582.

$8.49

$

In Stock, only 1 left!

0

10

Honda 90031-883-000

BOLT, FLANGE (8X16)

$5.99

$

In Stock, only 1 left!

0

11

Honda 90050-ZE1-000

SCREW, TAPPING (5X8)

$2.49

$

In Stock, Qty 20+

0

12

Honda 90055-ZE1-000

SCREW, TAPPING (4X6)

$1.49

$

In Stock, Qty 11

0

13

Honda 92900-08060-1B

BOLT, STUD (8X60)

$3.99

$

In Stock, only 1 left!

0

14

Honda 92900-08070-1B

BOLT, STUD (8X70)

$3.99

$

In Stock, only 1 left!

0

15

Honda 93500-06006-0A

SCREW, PAN (6X6)

$1.49

$

Usually ships in 3-6 days

0

16

Honda 94050-08000

NUT, FLANGE (8MM)

$1.49

$

In Stock, Qty 20+

0

17

Honda 94101-06800

WASHER, PLAIN (6MM)

$0.99

$

In Stock, Qty 20+

0

18

Honda 95701-08014-00

BOLT, FLANGE (8X14)

$2.49

$

In Stock, Qty 20+

0
