GXV340 UT2 DCA1 (GJACT) - Honda Engine, Made in Thailand (SN: GJACT-1000001 - GJACT-9999999) PISTON Parts Diagram

Engine, Made in Thailand

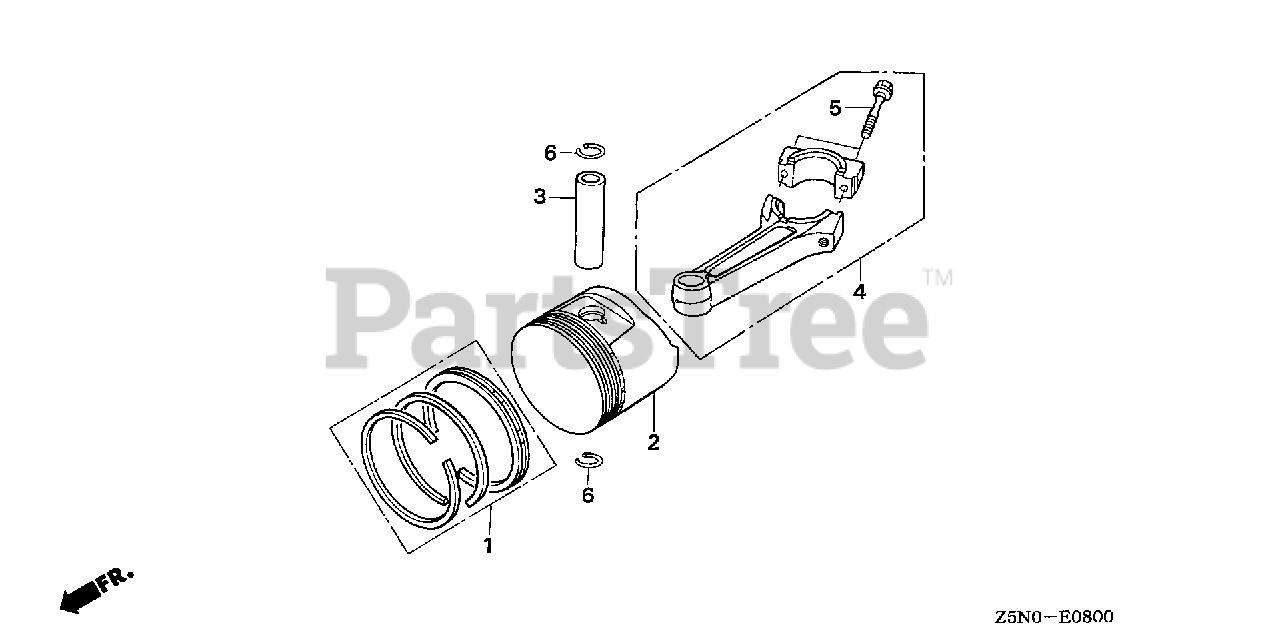

PISTON Parts Diagram

  • Title

1

Honda 13010-Z1F-800

RING SET, PISTON (STD) (RIKEN)

Note: Use up to Engine SN 1020361.

$76.99

$

Usually ships in 3-6 days

0

1

Honda 13010-Z5L-004

RING SET, PISTON (STD) (TPR)

Note: Use from Engine SN 1020362.

$59.99

$

Usually ships in 3-6 days

0

1

Honda 13011-Z1F-800

RING SET, PISTON (0.25) (RIKEN)

Note: (Optional). Use up to Engine SN 1020361.

$79.99

$

Usually ships in 3-6 days

0

1

Honda 13011-Z5L-004

RING SET, PISTON (0.25) (TPR)

Note: (Optional). Use from Engine SN 1020362.

$

$

Not available

1

Honda 13011-Z5N-003

RING SET, PISTON (0.25) (RIKEN)
(Superseded to 13011-Z5L-004)

Note: (Optional). Use from Engine SN 1020362.

$

$

Not available

1

Honda 13012-Z1F-800

RING SET, PISTON (0.50) (RIKEN)

Note: (Optional). Use up to Engine SN 1020361.

$79.99

$

Usually ships in 3-6 days

0

1

Honda 13012-Z5L-004

RING SET, PISTON (0.50) (TPR)

Note: (Optional). Use from Engine SN 1020362.

$

$

Not available

1

Honda 13012-Z5N-003

RING SET, PISTON (0.50) (RIKEN)

Note: (Optional). Use from Engine SN 1020362.

$

$

Not available

1

Honda 13013-Z1F-800

RING SET, PISTON (0.75) (RIKEN)

Note: (Optional). Use up to Engine SN 1020361.

$79.99

$

Usually ships in 3-6 days

0

1

Honda 13013-Z5L-004

SEE PART DETAILS - PRI; RING SET, PISTON (0.75) (TPR)

Note: (Optional). Use from Engine SN 1020362.

$

$

Not available

1

Honda 13013-Z5N-003

SEE PART DETAILS - SUP; RING SET, PISTON (0.75) (RIKEN)
(Superseded to 13013-Z5L-004)

Note: (Optional). Use from Engine SN 1020362.

$

$

Not available

2

Honda 13101-ZE3-W00

PISTON (STD)

Note: Use up to Engine SN 1020361.

$62.99

$

Usually ships in 3-6 days

0

2

Honda 13101-ZE3-W01

PISTON (STD)

Note: Use from Engine SN 1020362.

$77.99

$

Usually ships in 3-6 days

0

2

Honda 13102-ZE3-W00

PISTON (0.25)

Note: (Optional). Use up to Engine SN 1020361.

$

$

Not available

2

Honda 13102-ZE3-W01

SEE PART DETAILS - PRI; PISTON (0.25)

Note: (Optional). Use from Engine SN 1020362.

$

$

Not available

2

Honda 13103-ZE3-W00

PISTON (0.50)

Note: (Optional). Use up to Engine SN 1020361.

$

$

Not available

2

Honda 13103-ZE3-W01

PISTON (0.50)

Note: (Optional). Use from Engine SN 1020362.

$

$

Not available

2

Honda 13104-ZE3-W00

PISTON (0.75)

Note: (Optional). Use up to Engine SN 1020361.

$

$

Not available

2

Honda 13104-ZE3-W01

PISTON (0.75)

Note: (Optional). Use from Engine SN 1020362.

$

$

Not available

3

Honda 13111-ZF6-000

PIN, PISTON

$15.99

$

In Stock, only 1 left!

0

4

Honda 13200-Z1E-000

SEE PART DETAILS - PRI; ROD ASSY., CONNECTING (STD)

$160.99

$

Usually ships in 3-6 days

0

4

Honda 13200-Z1E-305

ROD ASSY., CONNECTING (0.25 LOWER SIZE)

Note: (Optional).

$

$

Not available

5

Honda 90001-ZE8-000

BOLT, CONNECTING ROD

$4.99

$

In Stock, only 1 left!

0

6

Honda 90601-ZE3-000

CLIP, PISTON PIN (20MM)

$2.49

$

In Stock, only 3 left!

0
