GXV340 T2 DP23 (GEABT) - Honda Engine, Made in Thailand (SN: GEABT-1000001 - GEABT-9999999) CYLINDER@OIL PAN Parts Diagram

Engine, Made in Thailand

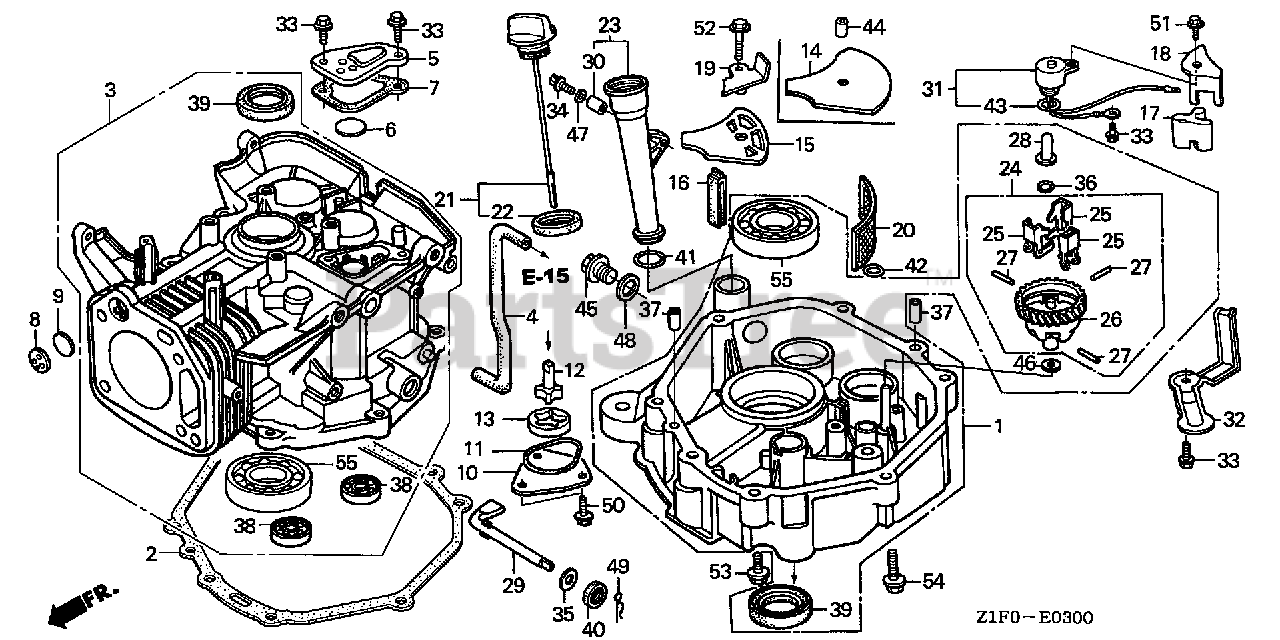

CYLINDER@OIL PAN Parts Diagram

  • Title

1

Honda 11300-Z1E-408

SEE PART DETAILS - PRI; PAN ASSY., OIL

$444.99

$

Usually ships in 3-6 days

0

2

Honda 11381-ZE9-801

SEE PART DETAILS - PRI; GASKET, OIL PAN (Honda Code 6495758).

$17.99

$

In Stock, only 3 left!

0

3

Honda 12000-Z1F-405

CYLINDER ASSY.

$875.99

$

Usually ships in 3-6 days

0

4

Honda 12315-ZF5-000

TUBE, BREATHER (Honda Code 3131828).

$9.49

$

Usually ships in 3-6 days

0

5

Honda 12370-ZF5-000

CAP, BREATHER CHAMBER (Honda Code 3131836).

$9.49

$

Usually ships in 3-6 days

0

6

Honda 12372-ZE2-300

VALVE, BREATHER (Honda Code 2061620).

$3.99

$

In Stock, Qty 5

0

7

Honda 12373-ZE8-000

GASKET, BREATHER CAP (Honda Code 2089647).

$3.49

$

Usually ships in 3-6 days

0

8

Honda 12375-ZE9-010

PLATE, ONE-WAY VALVE (Honda Code 2484954).

$4.99

$

Usually ships in 3-6 days

0

9

Honda 12376-ZE8-000

VALVE, ONE-WAY (Honda Code 2089662).

$2.99

$

Usually ships in 3-6 days

0

10

Honda 15130-ZE8-000

COVER, OIL PUMP (Honda Code 2089886).

$9.99

$

Usually ships in 3-6 days

0

11

Honda 15131-ZE9-003

SEE PART DETAILS - PRI; O-RING, PUMP COVER (Honda Code 2278331).

$4.49

$

In Stock, only 3 left!

0

12

Honda 15330-ZE8-000

ROTOR (INNER) (Honda Code 2089902).

$23.99

$

Usually ships in 3-6 days

0

13

Honda 15332-891-003

ROTOR, OIL PUMP (OUTER) (Honda Code 0800219).

$18.99

$

Usually ships in 3-6 days

0

15

Honda 15334-ZE8-811

SEE PART DETAILS - PRI; PLATE, OIL FILTER (Honda Code 2577294).

$8.99

$

Usually ships in 3-6 days

0

16

Honda 15335-ZE9-000

RUBBER, OIL RETURN (Honda Code 2278349).

$6.49

$

Usually ships in 3-6 days

0

17

Honda 15336-ZE8-000

STOPPER, OIL (Honda Code 2485043).

$5.99

$

Usually ships in 3-6 days

0

18

Honda 15337-ZE8-000

PLATE, OIL STOPPER (Honda Code 2485050).

$5.99

$

Usually ships in 3-6 days

0

19

Honda 15420-ZE8-000

SEE PART DETAILS - PRI; PLATE, SUCTION (Honda Code 2461663).

$9.49

$

Usually ships in 3-6 days

0

20

Honda 15421-ZE9-003

SEE PART DETAILS - PRI; SCREEN, OIL FILTER (Honda Code 2608644).

$15.99

$

In Stock, only 1 left!

0

21

Honda 15600-Z5N-800

SEE PART DETAILS - PRI; CAP ASSY., OIL FILLER

$4.99

$

In Stock, only 2 left!

0

22

Honda 15625-ZE8-000

SEE PART DETAILS - PRI; GASKET, OIL FILLER CAP

$5.49

$

In Stock, only 1 left!

0

23

Honda 15630-Z5N-800

EXTENSION, OIL FILLER

$6.49

$

In Stock, only 1 left!

0

24

Honda 16510-ZE3-000

GOVERNOR ASSY. (Honda Code 3713187).

$33.99

$

Usually ships in 3-6 days

0

25

Honda 16511-ZE8-000

WEIGHT, GOVERNOR (Honda Code 2090090).

$7.99

$

Usually ships in 3-6 days

0

26

Honda 16512-ZE3-000

HOLDER, GOVERNOR WEIGHT (Honda Code 3713195).

$19.99

$

Usually ships in 3-6 days

0

27

Honda 16513-ZE2-000

PIN, GOVERNOR WEIGHT (Honda Code 2025971).

$2.49

$

Usually ships in 3-6 days

0

28

Honda 16531-Z0A-000

SEE PART DETAILS - PRI; SLIDER, GOVERNOR (Honda Code 6605117).

$3.99

$

In Stock, only 3 left!

0

29

Honda 16541-ZE8-010

SEE PART DETAILS - PRI; SHAFT, GOVERNOR ARM (Honda Code 4751293).

$15.99

$

Usually ships in 3-6 days

0

30

Honda 17240-ZE6-000

COLLAR, EXTENSION Use up to Engine SN 1257294.

$4.99

$

In Stock, only 1 left!

0

31

Honda 35410-ZF5-013

SEE PART DETAILS - PRI; SWITCH, OIL LEVEL (Honda Code 7100449).

$71.99

$

Usually ships in 3-6 days

0

32

Honda 35419-ZF5-000

PROTECTOR, SWITCH (Honda Code 3132214).

$9.49

$

Usually ships in 3-6 days

0

33

Honda 90013-883-000

SEE PART DETAILS - PRI; BOLT, FLANGE (6X12) (CT200) (Honda Code 0636845).

$2.49

$

In Stock, Qty 17

0

34

Honda 90014-ZE6-000

BOLT, FLANGE (6X35) (Honda Code 1688076).

$2.99

$

In Stock, Qty 6

0

35

Honda 90406-VM6-000

WASHER, THRUST (8.1MM) (Honda Code 1806934).

$3.99

$

Usually ships in 3-6 days

0

36

Honda 90602-ZE1-000

SEE PART DETAILS - PRI; CLIP, GOVERNOR HOLDER (Honda Code 2456697).

$1.99

$

In Stock, only 3 left!

0

37

Honda 90701-HC4-000

PIN, DOWEL (8X12) (Honda Code 2978443).

$3.99

$

In Stock, only 2 left!

0

38

Honda 91001-ZF5-003

BEARING, RADIAL BALL (6202) (Honda Code 3132263).

$18.99

$

Usually ships in 3-6 days

0

39

Honda 91201-Z1C-003

OIL SEAL (35X52X8) (NOK)

$9.99

$

In Stock, only 4 left!

0

40

Honda 91201-ZE9-003

SEE PART DETAILS - PRI; OIL SEAL (8X14X5) (Honda Code 2461713).

$5.49

$

In Stock, Qty 11

0

40

Honda 91203-952-771

SEE PART DETAILS - SUP; OIL SEAL (8X14X5) (Honda Code 0744326).
(Superseded to 91201-ZE9-003)

$5.49

$

In Stock, Qty 11

0

41

Honda 91301-ZE9-003

SEE PART DETAILS - PRI; O-RING (22.5X2.2) Use from Engine SN 1257295.

$2.49

$

In Stock, Qty 12

0

42

Honda 91302-ZE9-003

SEE PART DETAILS - PRI; O-RING (11.8X2.4)

$3.49

$

Usually ships in 3-6 days

0

43

Honda 91302-ZL8-003

O-RING (11.8X2.4)

$1.49

$

In Stock, only 2 left!

0

45

Honda 92800-20000

SEE PART DETAILS - PRI; BOLT, DRAIN PLUG (20MM) (Honda Code 0209635).

$7.49

$

Usually ships in 3-6 days

0

46

Honda 94101-06800

SEE PART DETAILS - PRI; WASHER, PLAIN (6MM) (Honda Code 0345900).

$0.99

$

In Stock, Qty 20+

0

47

Honda 94103-06700

WASHER, PLAIN (6MM) (Honda Code 0622324).

$0.99

$

In Stock, Qty 5

0

48

Honda 94109-20000

SEE PART DETAILS - PRI; WASHER, DRAIN PLUG (20MM) (Honda Code 0251728).

$1.99

$

In Stock, only 3 left!

0

49

Honda 94251-10000

PIN, LOCK (10MM) (Honda Code 0159269).

$1.99

$

In Stock, Qty 5

0

50

Honda 95701-06012-00

SEE PART DETAILS - PRI; BOLT, FLANGE (6X12) Use up to Engine SN 1543277.

$2.49

$

In Stock, Qty 20+

0

51

Honda 95701-06016-00

SEE PART DETAILS - PRI; BOLT, FLANGE (6X16) Use from Engine SN 2056820.

$2.49

$

In Stock, Qty 9

0

52

Honda 95701-06025-00

SEE PART DETAILS - PRI; BOLT, FLANGE (6X25) (Honda Code 2105831).

$2.49

$

In Stock, Qty 8

0

53

Honda 95701-08040-08

SEE PART DETAILS - PRI; BOLT, FLANGE (8X40) (Honda Code 2374775).

$2.99

$

Usually ships in 3-6 days

0

54

Honda 95701-08060-08

SEE PART DETAILS - PRI; BOLT, FLANGE (8X60) (Honda Code 2488526).

$3.49

$

In Stock, only 1 left!

0

55

Honda 96100-62070-00

SEE PART DETAILS - PRI; BEARING, RADIAL BALL (6207)

$56.99

$

Usually ships in 3-6 days

0

55

Honda 96100-62073-00

SEE PART DETAILS - PRI; BEARING, RADIAL BALL (6207) (Honda Code 0572206).
(Superseded to 96100-62070-00)

$56.99

$

Usually ships in 3-6 days

0
