GXV340 T2 DP23 (GEABT) - Honda Engine, Made in Thailand (SN: GEABT-1000001 - GEABT-9999999) CARBURETOR (2) Parts Diagram

Engine, Made in Thailand

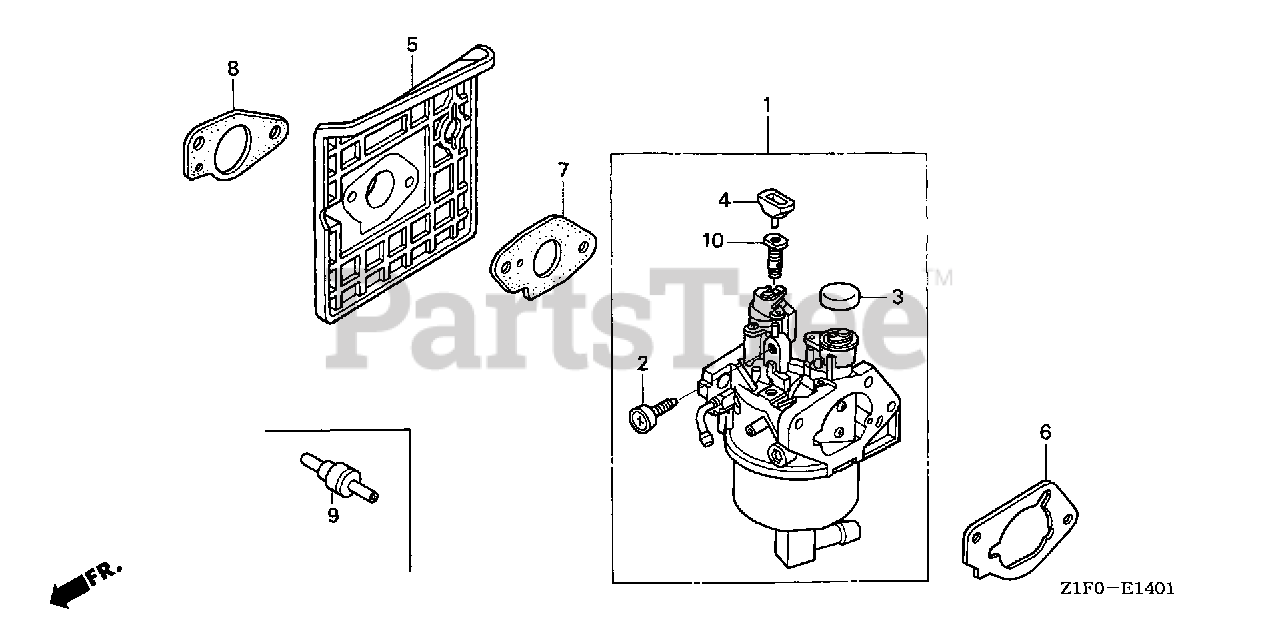

CARBURETOR (2) Parts Diagram

  • Title
1

Honda 16100-ZE9-V44

SEE PART DETAILS - PRI; CARBURETOR ASSY. (BEL6A D)

$160.99

$

Usually ships in 3-6 days

0

2

Honda 16124-ZE0-005

SCREW, THROTTLE STOP (Honda Code 1441559).

$17.99

$

In Stock, only 1 left!

0

3

Honda 16148-141-881

SEE PART DETAILS - PRI; CAP, CHOKE LEVER DUST (Honda Code 2110468).

$6.49

$

In Stock, only 1 left!

0

4

Honda 16172-ZE3-W10

COLLAR, SET (Honda Code 3738358).

$10.99

$

Usually ships in 3-6 days

0

5

Honda 16211-ZE9-601

INSULATOR, CARBURETOR (Honda Code 3131950).

$21.99

$

In Stock, only 1 left!

0

6

Honda 16220-ZA0-702

SEE PART DETAILS - PRI; SPACER, CARBURETOR (Honda Code 2686533).

$11.99

$

Usually ships in 3-6 days

0

7

Honda 16221-ZE3-800

SEE PART DETAILS - PRI; GASKET, CARBURETOR (Honda Code 3795358).

Note: Use up to Engine SN 1000653.

$2.99

$

In Stock, Qty 20+

0

7

Honda 16221-Z8T-000

GASKET, CARBURETOR

Note: Use from Engine SN 1000654.

$4.99

$

In Stock, Qty 12

0

8

Honda 16223-ZE9-800

SEE PART DETAILS - PRI; GASKET, INSULATOR (Honda Code 4145777).

$2.99

$

In Stock, Qty 5

0

9

Honda 36135-PH3-004

VALVE, DASHPOT CHECK

Note: (Optional).

$87.99

$

Usually ships in 3-6 days

0

10

Honda 99204-ZE2-0450

SEE PART DETAILS - PRI; JET SET, PILOT (#45)

$15.99

$

In Stock, only 2 left!

0
