GXV340 T2 DP23 (GEABT) - Honda Engine, Made in Thailand (SN: GEABT-1000001 - GEABT-9999999) AIR CLEANER (2) Parts Diagram

Engine, Made in Thailand

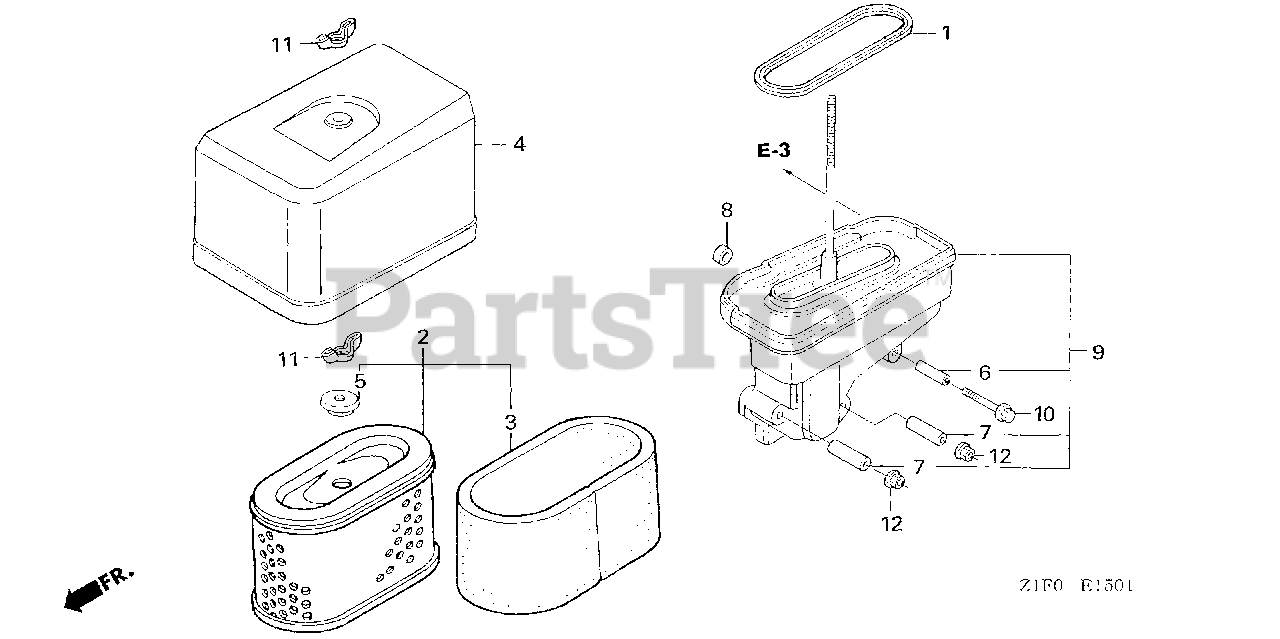

AIR CLEANER (2) Parts Diagram

  • Title

1

Honda 16271-ZE8-000

GASKET, ELBOW (Honda Code 2090082).

$4.99

$

Usually ships in 3-6 days

0

2

Honda 17210-ZF5-010

ELEMENT, AIR CLEANER (METAL BASE)

$37.99

$

In Stock, only 2 left!

0

3

Honda 17218-ZF5-505

SEE PART DETAILS - PRI; FILTER (OUTER) (Honda Code 5183777).
(Superseded to 17218-ZF5-305)

$9.49

$

In Stock, only 1 left!

0

4

Honda 17230-ZE8-900

SEE PART DETAILS - SUP; COVER, AIR CLEANER (DUAL)
(Superseded to 17230-ZE8-901)

Note: Use up to Engine SN 1000568.

$38.99

$

Usually ships in 3-6 days

0

4

Honda 17230-ZE8-901

COVER, AIR CLEANER (DUAL)

$38.99

$

Usually ships in 3-6 days

0

5

Honda 17232-891-000

GROMMET, AIR CLEANER (Honda Code 0999763).

$5.99

$

In Stock, Qty 15

0

6

Honda 17238-ZE1-000

COLLAR, AIR CLEANER Use up to Engine SN 1786084.

$5.99

$

Usually ships in 3-6 days

0

7

Honda 17238-ZE2-310

SEE PART DETAILS - PRI; COLLAR, AIR CLEANER (Honda Code 2384105).

$4.99

$

In Stock, Qty 10

0

8

Honda 17239-ZE8-700

SPACER, AIR CLEANER ELBOW (Honda Code 2090223).

$5.99

$

Usually ships in 3-6 days

0

9

Honda 17410-ZE8-900

SEE PART DETAILS - SUP; ELBOW, AIR CLEANER
(Superseded to 17410-ZE8-901)

Note: Use up to Engine SN 1000568.

$33.99

$

Usually ships in 3-6 days

0

9

Honda 17410-ZE8-901

SEE PART DETAILS - PRI; ELBOW, AIR CLEANER

Note: Use from Engine SN 1000569.

$33.99

$

Usually ships in 3-6 days

0

10

Honda 90014-ZE6-000

BOLT, FLANGE (6X35) (Honda Code 1688076).

$2.99

$

In Stock, Qty 6

0

11

Honda 90325-044-000

SEE PART DETAILS - PRI; WINGNUT, TOOL BOX SETTING (Honda Code 0127720).

$5.49

$

In Stock, Qty 20+

0

12

Honda 94050-06000

SEE PART DETAILS - PRI; NUT, FLANGE (6MM) (Honda Code 0471623).

$0.99

$

In Stock, Qty 20+

0
