GXV340 K2 DP23 (GEAA) - Honda Engine, Made in USA (SN: GEAA-6000001 - GEAA-9999999) IGNITION COIL Parts Diagram

Engine, Made in USA

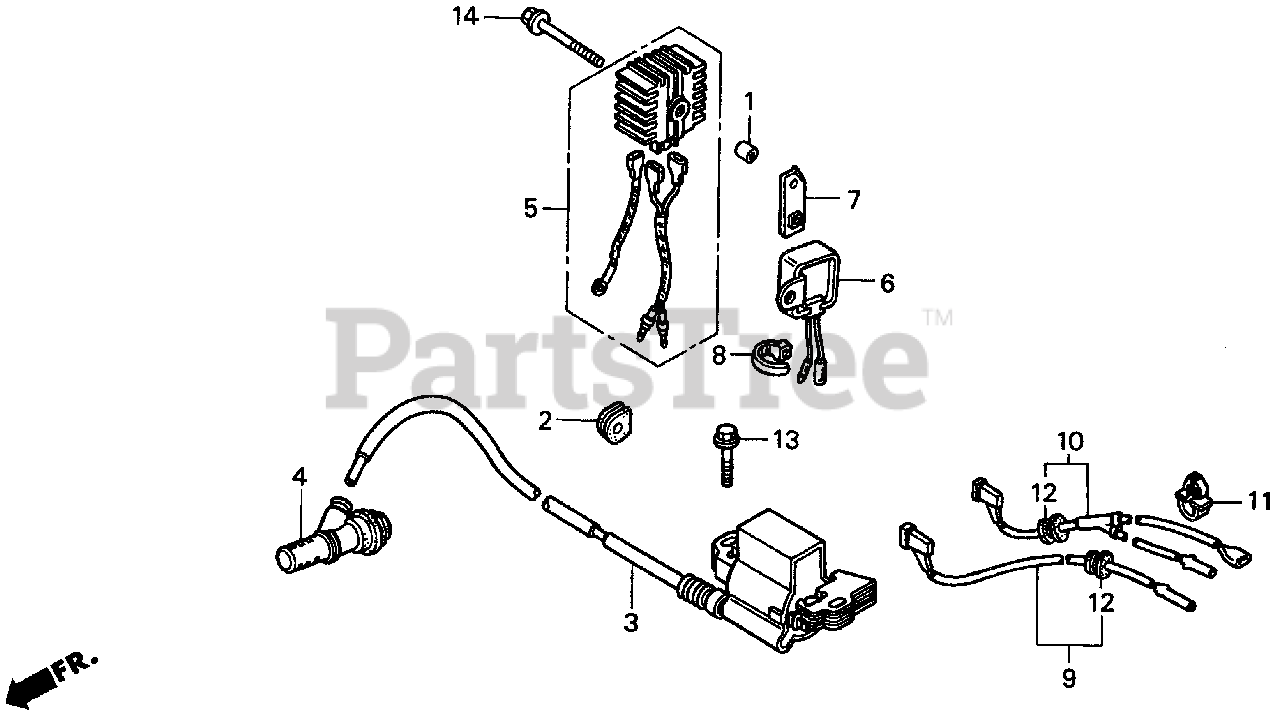

IGNITION COIL Parts Diagram

  • Title

1

Honda 17239-ZE8-700

SPACER, AIR CLEANER ELBOW

Note: (Honda Code 2090223).

$6.49

$

Usually ships in 3-6 days

0

2

Honda 19613-ZA8-000

GROMMET, WIRE

Note: (Honda Code 1787951).

$4.49

$

Usually ships in 3-6 days

0

3

Honda 30500-ZE9-L32

SEE PART DETAILS - SUP; COIL ASSY., IGNITION
(Superseded to 30500-Z1C-023)

Note: (Honda Code 4542528).

$61.99

$

Usually ships in 3-6 days

0

4

Honda 30700-ZF5-013

SEE PART DETAILS - PRI; CAP ASSY., NOISE SUPPRESSOR

Note: (Honda Code 3803467).

$27.99

$

Usually ships in 3-6 days

0

5

Honda 31700-ZE8-901

RECTIFIER ASSY., SILICON

Note: (Honda Code 2324176).

$136.99

$

Usually ships in 3-6 days

0

10

Honda 36101-ZE8-810

WIRE, STOP SWITCH

Note: (Honda Code 2461739).

$30.99

$

Usually ships in 3-6 days

0

11

Honda 36103-ZE1-000

HOLDER, STOP SWITCH WIRE

Note: (Honda Code 1429141).

$2.99

$

In Stock, only 1 left!

0

12

Honda 80101-166-000

GROMMET, WIRE

Note: (Honda Code 1085471).

$3.49

$

Usually ships in 3-6 days

0

13

Honda 90015-883-000

BOLT, FLANGE (6X28)

Note: (Honda Code 0636852).

$3.99

$

In Stock, Qty 8

0

14

Honda 95701-06040-00

SEE PART DETAILS - PRI; BOLT, FLANGE (6X40)

Note: (Honda Code 2410942).

$2.99

$

Usually ships in 3-6 days

0
