GXV340 K2 DP2 (GEAA) - Honda Engine, Made in USA (SN: GEAA-6000001 - GEAA-9999999) CAMSHAFT Parts Diagram

Engine, Made in USA

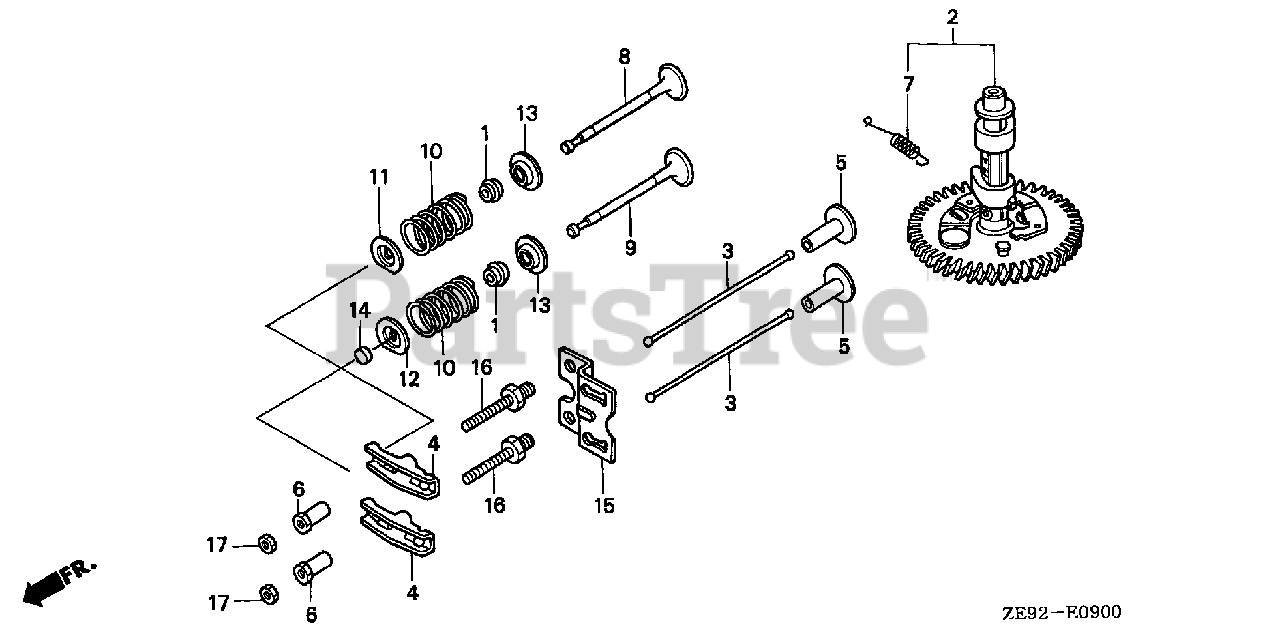

CAMSHAFT Parts Diagram

  • Title

1

Honda 12209-ZE8-003

SEAL, VALVE STEM

$8.49

$

In Stock, Qty 8

0

2

Honda 14100-ZE8-602

CAMSHAFT ASSY.

$208.99

$

Usually ships in 3-6 days

0

3

Honda 14410-ZE3-013

SEE PART DETAILS - PRI; ROD, PUSH

$7.99

$

In Stock, Qty 5

0

4

Honda 14431-ZE2-010

SEE PART DETAILS - PRI; ARM, VALVE ROCKER

$9.49

$

In Stock, only 4 left!

0

5

Honda 14441-ZE2-000

SEE PART DETAILS - PRI; LIFTER, VALVE

$16.99

$

In Stock, only 2 left!

0

6

Honda 14451-ZE1-013

SEE PART DETAILS - PRI; PIVOT, ROCKER ARM
(Superseded to 14451-Z4M-000)

$5.99

$

In Stock, Qty 7

0

7

Honda 14568-ZE1-000

SPRING, WEIGHT RETURN

$3.49

$

In Stock, only 2 left!

0

8

Honda 14711-ZE9-900

VALVE, IN. (STELLITE)

$27.99

$

Usually ships in 3-6 days

0

9

Honda 14721-ZE9-900

VALVE, EX. (STELLITE)

$65.99

$

Usually ships in 3-6 days

0

10

Honda 14751-ZE2-003

SPRING, VALVE

$5.49

$

In Stock, only 2 left!

0

11

Honda 14771-ZE2-000

SEE PART DETAILS - SUP; RETAINER, IN. VALVE SPRING
(Superseded to 14771-Z8S-000)

$2.49

$

In Stock, only 1 left!

0

12

Honda 14771-ZE2-000

SEE PART DETAILS - SUP; RETAINER, IN. VALVE SPRING
(Superseded to 14771-Z8S-000)

$2.49

$

In Stock, only 1 left!

0

13

Honda 14775-ZE2-010

SEAT, VALVE SPRING

$3.99

$

In Stock, only 2 left!

0

15

Honda 14791-ZE9-010

SEE PART DETAILS - PRI; GUIDE, PUSH ROD

$4.99

$

Usually ships in 3-6 days

0

16

Honda 90012-ZE0-010

BOLT, PIVOT (8MM)

$8.49

$

In Stock, only 2 left!

0

17

Honda 90206-ZE1-000

NUT, PIVOT ADJUSTING

$4.49

$

In Stock, Qty 8

0
