GXV340 K2 DNE3 (GJ02) - Honda Engine, Made in USA (SN: GJ02-6000001 - GJ02-9999999) RECOIL STARTER Parts Diagram

Engine, Made in USA

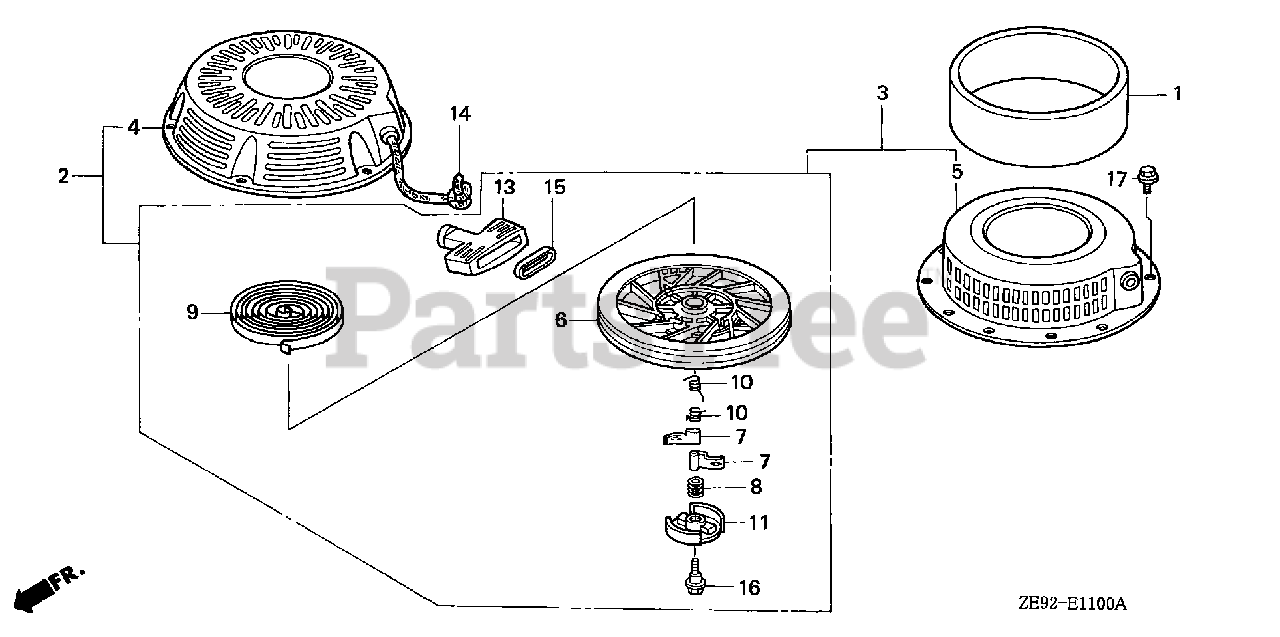

RECOIL STARTER Parts Diagram

  • Title

2

Honda 28400-ZE3-W01ZB

SEE PART DETAILS - SUP; STARTER ASSY., RECOIL *NH1* (BLACK)

$

$

Currently unavailable

2

Honda 28400-ZE3-W01ZP

SEE PART DETAILS - SUP; STARTER ASSY., RECOIL *R280* (POWER RED)
(Superseded to 28400-ZE3-W02ZP)

$123.99

$

In Stock, only 3 left!

0

4

Honda 28410-ZE3-W01ZB

CASE, RECOIL STARTER *NH1* (BLACK)

$112.99

$

In Stock, only 1 left!

0

4

Honda 28410-ZE3-W01ZP

SEE PART DETAILS - PRI; CASE, RECOIL STARTER *R280* (POWER RED)

$130.99

$

Usually ships in 3-6 days

0

6

Honda 28421-ZE3-W01

PULLEY, RECOIL STARTER

$44.99

$

In Stock, only 1 left!

0

7

Honda 28422-ZE2-W01

RATCHET, STARTER

$7.49

$

Usually ships in 3-6 days

0

8

Honda 28441-ZE2-W01

SPRING, FRICTION

$6.49

$

In Stock, Qty 10

0

9

Honda 28442-ZE2-W01

SPRING, STARTER RETURN

$18.99

$

In Stock, only 2 left!

0

10

Honda 28443-ZE2-W01

SPRING, RATCHET

$5.49

$

In Stock, Qty 12

0

11

Honda 28444-ZE2-W01

RETAINER, SPRING

$14.99

$

Usually ships in 3-6 days

0

13

Honda 28461-ZE2-W02

SEE PART DETAILS - SUP; GRIP, STARTER
(Superseded to 28461-ZE2-W03)

$7.99

$

In Stock, Qty 11

0

14

Honda 28462-ZE3-W01

ROPE, RECOIL STARTER

$14.99

$

In Stock, Qty 6

0

15

Honda 28469-ZE2-W01

GRIP, REINFORCEMENT

Note: Use up to Engine SN 6025008.

$6.99

$

In Stock, only 1 left!

0

16

Honda 90004-ZE2-W01

SCREW, CENTER

$4.49

$

In Stock, Qty 10

0

17

Honda 96001-06010-00

BOLT, FLANGE (6X10)

$2.49

$

Usually ships in 3-6 days

0
