GXV340 K2 DE33 (GJ02) - Honda Engine, Made in USA (SN: GJ02-6000001 - GJ02-9999999) FUEL TANK Parts Diagram

Engine, Made in USA

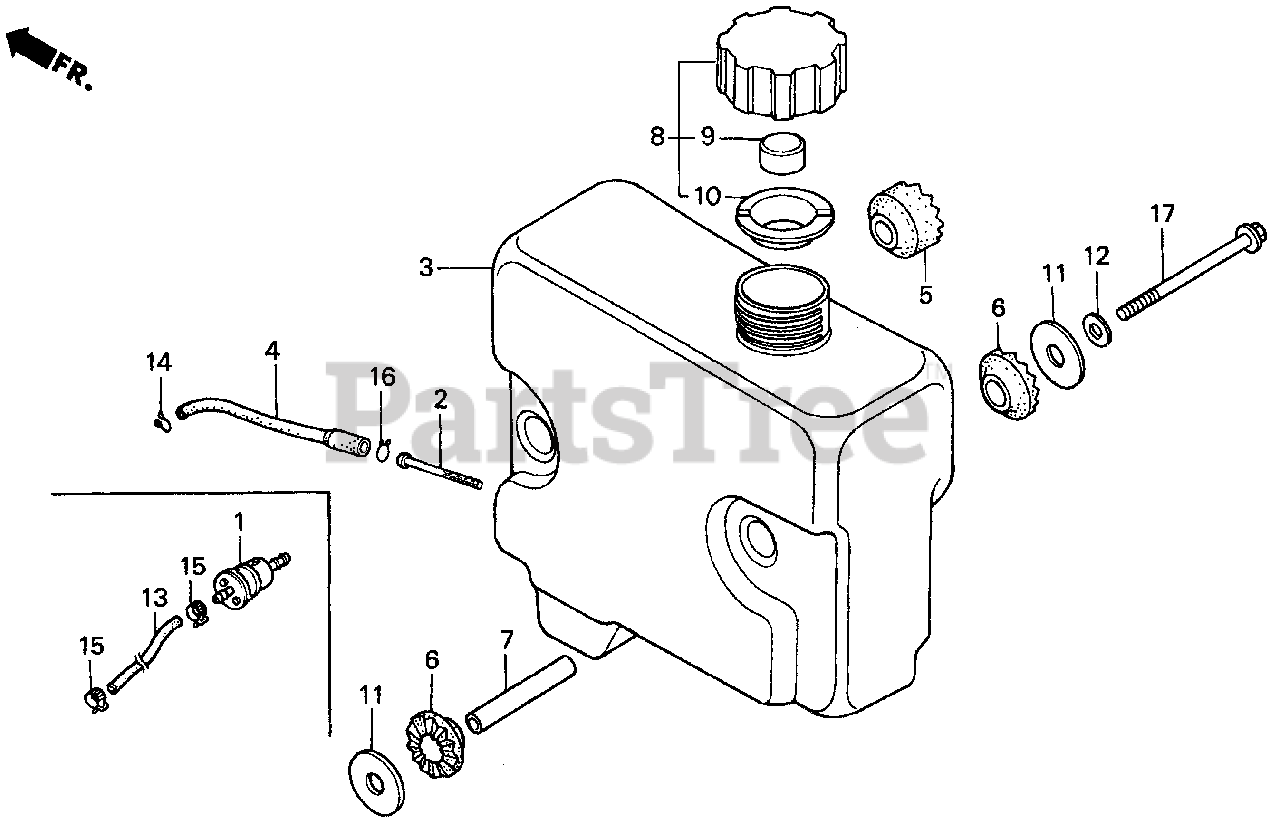

FUEL TANK Parts Diagram

  • Title

2

Honda 16952-ZE6-000

FILTER, FUEL

Note: (Honda Code 1452945).

$9.49

$

In Stock, only 2 left!

0

3

Honda 17510-ZE9-000

TANK, FUEL

Note: (Honda Code 2278646).

$123.99

$

Usually ships in 3-6 days

0

4

Honda 17512-ZE9-000

SEE PART DETAILS - PRI; TUBE, FUEL

Note: (Honda Code 2278653).

$11.99

$

In Stock, Qty 9

0

5

Honda 17516-ZE8-000

RUBBER B, TANK MOUNTING

Note: (Honda Code 2106250).

$10.99

$

Usually ships in 3-6 days

0

6

Honda 17516-896-700

RUBBER B, TANK MOUNTING

Note: (Honda Code 0933416).

$9.49

$

In Stock, Qty 12

0

7

Honda 17518-ZE8-000

COLLAR, TANK SETTING

Note: (Honda Code 2106268).

$10.99

$

Usually ships in 3-6 days

0

8

Honda 17620-ZE7-000

SEE PART DETAILS - PRI; CAP ASSY., FUEL TANK
(Superseded to 17620-ZG9-000)

Note: (Honda Code 2289833).

$13.99

$

In Stock, only 1 left!

0

9

Honda 17622-888-010

SEE PART DETAILS - PRI; SPONGE, FUEL CAP BREATHER

Note: (Honda Code 0810341).

$2.49

$

In Stock, only 4 left!

0

10

Honda 17624-ZE7-000

GASKET, FUEL CAP

Note: (Honda Code 2507689).

$5.49

$

Usually ships in 3-6 days

0

11

Honda 90455-896-700

WASHER, TANK MOUNTING

Note: (Honda Code 0933325).

$4.49

$

In Stock, only 2 left!

0

12

Honda 90471-SB0-000

WASHER, PLAIN (8MM)

Note: (Honda Code 2372183).

$8.99

$

Usually ships in 3-6 days

0

14

Honda 95002-02080

CLIP, TUBE (B8)

Note: (Honda Code 0250647).

$2.49

$

In Stock, Qty 20+

0

16

Honda 95002-70000

CLIP, TUBE (C11)

Note: (Honda Code 0053595).

$2.49

$

In Stock, Qty 5

0

17

Honda 95701-08095-00

BOLT, FLANGE (8X95)

Note: (Honda Code 4949988).

$2.99

$

Usually ships in 3-6 days

0
