GXV340 K1 DAP2 (GJ02) - Honda Engine, Made in Japan (SN: GJ02-1100001 - GJ02-5999999) RECOIL STARTER (2029295-) Parts Diagram

Engine, Made in Japan

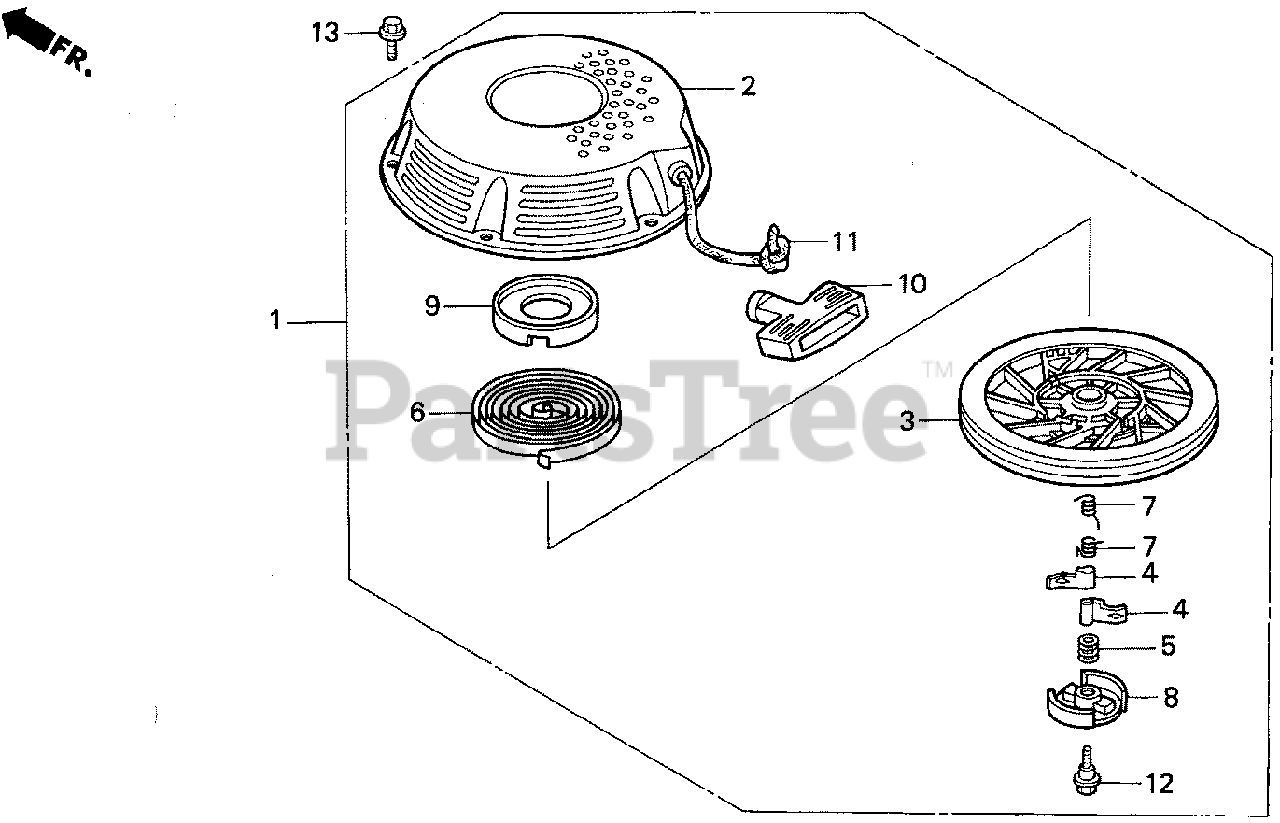

RECOIL STARTER (2029295-) Parts Diagram

  • Title

1

Honda 28400-ZE8-821ZA

STARTER ASSY., RECOIL *R8* (Honda Code 4820049). (BRIGHT RED)

Note: Use from Engine SN 2049069.

$

$

Currently unavailable

2

Honda 28410-ZE8-821ZA

SEE PART DETAILS - SUP; CASE, RECOIL STARTER *R8* (Honda Code 5040241). (BRIGHT RED)

Note: Use from Engine SN 2049069.

$

$

Currently unavailable

3

Honda 28421-ZE8-821

PULLEY, RECOIL STARTER (Honda Code 4820064).

Note: Use from Engine SN 2049069.

$48.99

$

Usually ships in 3-6 days

0

4

Honda 28422-ZE2-W01

RATCHET, STARTER (Honda Code 3678877).

Note: Use from Engine SN 2049069.

$7.49

$

Usually ships in 3-6 days

0

5

Honda 28441-ZE2-W01

SPRING, FRICTION (Honda Code 3678885).

Note: Use from Engine SN 2049069.

$6.49

$

In Stock, Qty 10

0

6

Honda 28442-ZE2-W01

SPRING, STARTER RETURN (Honda Code 3678893).

Note: Use from Engine SN 2049069.

$18.99

$

Usually ships in 3-6 days

0

7

Honda 28443-ZE2-W01

SPRING, RATCHET (Honda Code 3678901).

Note: Use from Engine SN 2049069.

$5.49

$

In Stock, Qty 12

0

8

Honda 28444-ZE2-W01

RETAINER, SPRING (Honda Code 3678919).

Note: Use from Engine SN 2049069.

$14.99

$

Usually ships in 3-6 days

0

9

Honda 28445-ZE2-W01

HOLDER, SPRING (Honda Code 3678927).

Note: Use from Engine SN 2049069.

$18.99

$

Usually ships in 3-6 days

0

10

Honda 28461-ZE2-W01

SEE PART DETAILS - SUP; GRIP, STARTER (Honda Code 3678950).

Note: Use from Engine SN 2049069.

$

$

Currently unavailable

10

Honda 28461-ZE2-W02

SEE PART DETAILS - PRI; GRIP, STARTER (Honda Code 6133649).
(Superseded to 28461-ZE2-W03)

Note: Use from Engine SN 2049069.

$7.99

$

Usually ships in 3-6 days

0

11

Honda 28462-ZE2-W01

SEE PART DETAILS - SUP; ROPE, RECOIL STARTER (#5X55") (Honda Code 3678968). (NA USE ALT:08550-ZG921-11)

$

$

Currently unavailable

12

Honda 90004-ZE2-W01

SCREW, CENTER (Honda Code 3679024).

Note: Use from Engine SN 2049069.

$4.49

$

In Stock, Qty 10

0

13

Honda 96001-06010-00

SEE PART DETAILS - PRI; BOLT, FLANGE (6X10) (Honda Code 2154656).

Note: Use from Engine SN 2049069.

$2.49

$

Usually ships in 3-6 days

0

14

Honda 28469-ZE2-W01

GRIP, REINFORCEMENT (Honda Code 3678976).

$6.99

$

In Stock, only 1 left!

0
