GXV340 K1 DA33 (GJ02) - Honda Engine, Made in Japan (SN: GJ02-2000001 - GJ02-5999999) FAN COVER Parts Diagram

Engine, Made in Japan

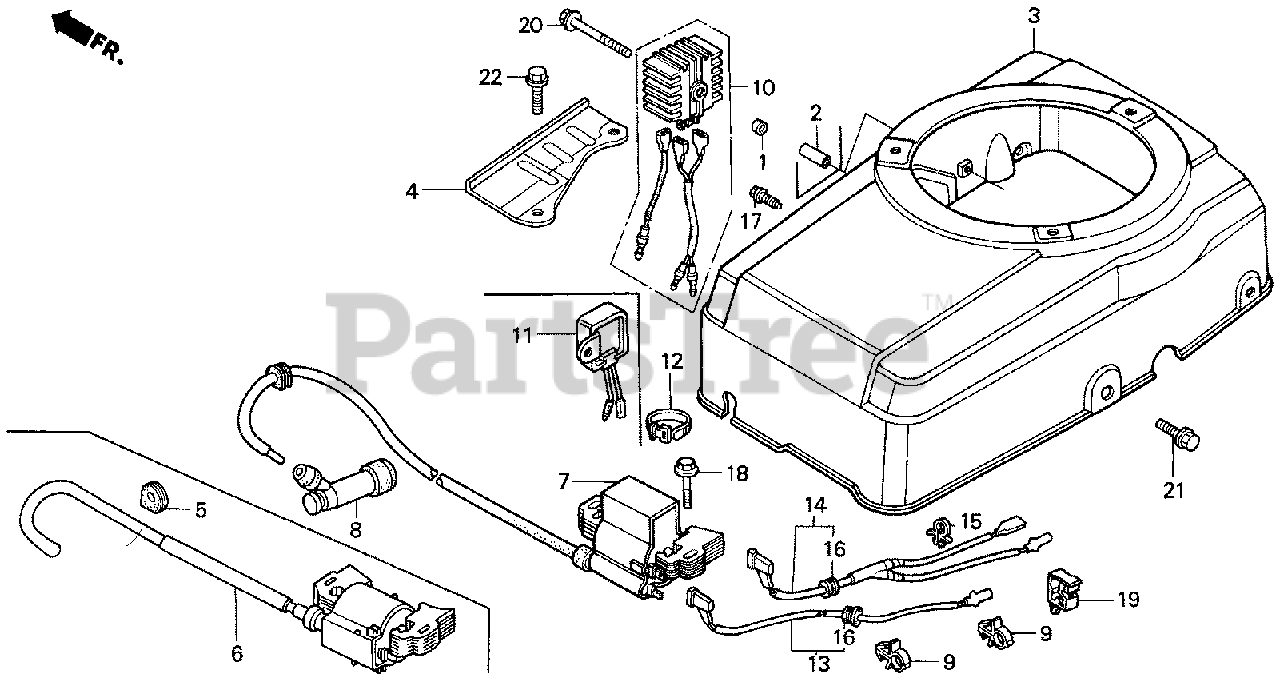

FAN COVER Parts Diagram

  • Title

3

Honda 19610-ZF5-010ZA

SEE PART DETAILS - PRI; COVER, FAN *R8* (Honda Code 4542494). (BRIGHT RED)

$

$

Not available

4

Honda 19612-ZF5-010

PLATE, SIDE (Honda Code 4221156).

$9.49

$

Usually ships in 3-6 days

0

5

Honda 19613-ZA8-000

GROMMET, WIRE (Honda Code 1787951).

$3.99

$

Usually ships in 3-6 days

0

6

Honda 30500-ZE9-L32

SEE PART DETAILS - SUP; COIL ASSY., IGNITION (Honda Code 4542528).
(Superseded to 30500-Z1C-023)

$56.99

$

In Stock, Qty 7

0

6

Honda 30500-ZE9-L33

SEE PART DETAILS - PRI; COIL ASSY., IGNITION (Honda Code 7088255).
(Superseded to 30500-Z1C-023)

$56.99

$

In Stock, Qty 7

0

8

Honda 30700-ZF5-013

SEE PART DETAILS - PRI; CAP ASSY., NOISE SUPPRESSOR (Honda Code 3803467).

$24.99

$

In Stock, only 1 left!

0

9

Honda 30701-883-000

CLIP, IGNITION WIRE (8MM) (Honda Code 0636787).

$3.99

$

In Stock, only 1 left!

0

14

Honda 36101-ZE8-810

WIRE, STOP SWITCH (Honda Code 2461739).

$27.99

$

Usually ships in 3-6 days

0

15

Honda 36103-ZE1-000

HOLDER, STOP SWITCH WIRE (Honda Code 1429141).

$2.49

$

In Stock, only 1 left!

0

16

Honda 80101-166-000

GROMMET, WIRE (Honda Code 1085471).

$3.49

$

Usually ships in 3-6 days

0

17

Honda 90013-883-000

SEE PART DETAILS - PRI; BOLT, FLANGE (6X12) (CT200) (Honda Code 0636845).

$1.99

$

In Stock, Qty 20+

0

18

Honda 90015-883-000

BOLT, FLANGE (6X28) (Honda Code 0636852).

$3.99

$

In Stock, Qty 8

0

21

Honda 95701-08016-00

SEE PART DETAILS - PRI; BOLT, FLANGE (8X16) (Honda Code 2298396).

$2.49

$

In Stock, Qty 20+

0

22

Honda 95701-08020-08

SEE PART DETAILS - PRI; BOLT, FLANGE (8X20) (Honda Code 2440477).

$2.49

$

Usually ships in 3-6 days

0

23

Honda 46391-VM0-003

CLIP A, BRAKE PIPE (Honda Code 1769652).

$3.49

$

Usually ships in 3-6 days

0
