GXV340 K1 DA (GJ02) - Honda Engine, Made in Japan (SN: GJ02-1100001 - GJ02-5999999) CYLINDER HEAD Parts Diagram

Engine, Made in Japan

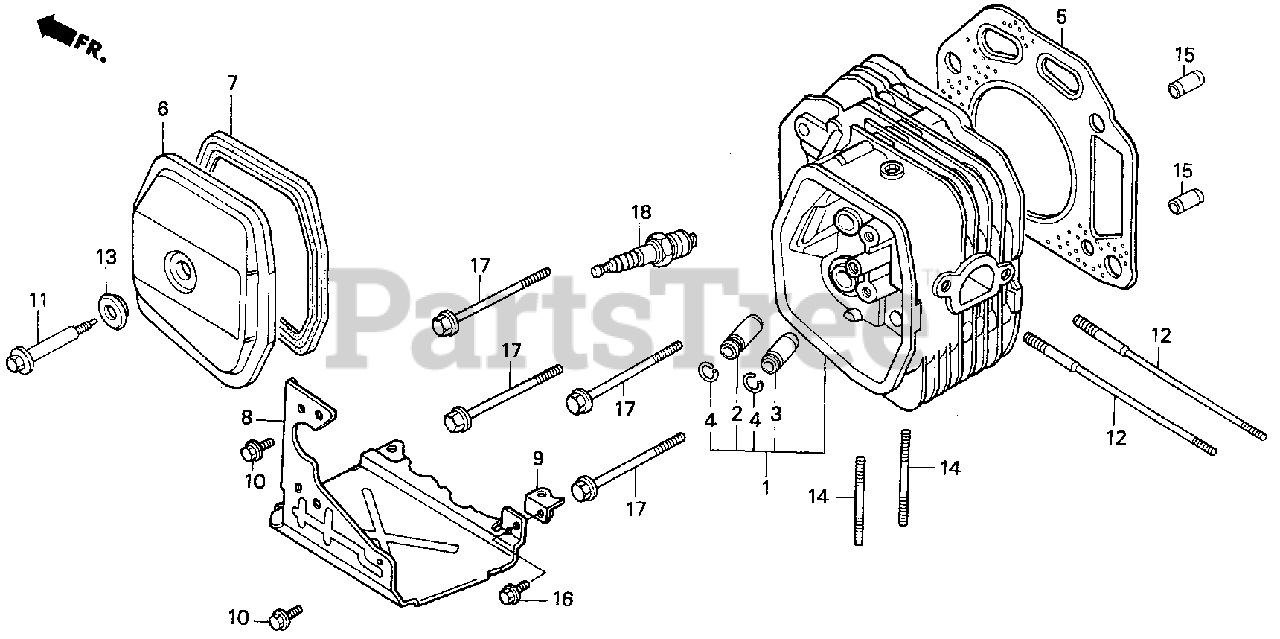

CYLINDER HEAD Parts Diagram

  • Title

1

Honda 122A0-ZE9-600

SEE PART DETAILS - SUP; CYLINDER HEAD (Honda Code 3131794).
(Superseded to 12200-Z1E-405)

$139.99

$

Usually ships in 3-6 days

0

2

Honda 12204-ZE2-306

SEE PART DETAILS - PRI; GUIDE, VALVE (OS) (Honda Code 4179164).

Note: (Optional).

$

$

Not available

3

Honda 12205-ZE2-305

SEE PART DETAILS - PRI; GUIDE, EX. VALVE (OS) (Honda Code 2089563).

Note: (Optional).

$

$

Not available

4

Honda 12216-ZE2-300

CLIP, VALVE GUIDE (Honda Code 2089597).

$2.49

$

In Stock, Qty 5

0

5

Honda 12251-ZE9-600

SEE PART DETAILS - PRI; GASKET, CYLINDER HEAD (Honda Code 3131810).

$26.99

$

In Stock, only 1 left!

0

6

Honda 12310-ZE8-000

COVER, HEAD (Honda Code 2089613).

$24.99

$

Usually ships in 3-6 days

0

7

Honda 12391-ZE8-000

GASKET, CYLINDER HEAD COVER (Honda Code 2089670).

$18.99

$

In Stock, only 2 left!

0

8

Honda 18345-ZF5-000

SEE PART DETAILS - SUP; COVER (LOWER) (Honda Code 3132065).

Note: Use up to Engine SN 2073679.

$

$

Currently unavailable

8

Honda 18345-ZF5-020

SEE PART DETAILS - PRI; COVER (LOWER) (Honda Code 4949848).
(Superseded to 18345-ZF5-030)

Note: Use from Engine SN 2073680 to 2099052.

$46.99

$

Usually ships in 3-6 days

0

8

Honda 18345-ZF5-020

SEE PART DETAILS - PRI; COVER (LOWER) (Honda Code 4949848).
(Superseded to 18345-ZF5-030)

Note: Use from Engine SN 2099053.

$46.99

$

Usually ships in 3-6 days

0

9

Honda 18347-ZE8-000

STAY, COVER (LOWER) (Honda Code 2278729).

$6.99

$

Usually ships in 3-6 days

0

10

Honda 90013-883-000

SEE PART DETAILS - PRI; BOLT, FLANGE (6X12) (CT200) (Honda Code 0636845).

$2.49

$

In Stock, Qty 17

0

11

Honda 90014-ZE8-000

BOLT, HEAD COVER (Honda Code 2092955).

$6.99

$

Usually ships in 3-6 days

0

12

Honda 90042-ZE8-000

BOLT, STUD (8X131.5) (Honda Code 2106656).

$9.49

$

In Stock, only 2 left!

0

13

Honda 90441-ZE2-010

SEE PART DETAILS - PRI; WASHER, HEAD COVER (Honda Code 2293918).

$6.99

$

In Stock, Qty 12

0

14

Honda 92900-08032-0B

SEE PART DETAILS - PRI; BOLT, STUD (8X32) (Honda Code 1803451).

$2.99

$

Usually ships in 3-6 days

0

15

Honda 94301-12200

SEE PART DETAILS - PRI; PIN A, DOWEL (12X20) (Honda Code 0165324).

$3.49

$

Usually ships in 3-6 days

0

16

Honda 95700-06012-00

SEE PART DETAILS - PRI; BOLT, FLANGE (6X12) (Honda Code 0487025).

$

$

Not available

16

Honda 95701-06012-00

SEE PART DETAILS - PRI; BOLT, FLANGE (6X12) (Honda Code 2105799).

$2.49

$

In Stock, Qty 20+

0

17

Honda 95701-10080-00

SEE PART DETAILS - PRI; BOLT, FLANGE (10X80) (Honda Code 2545341).

$4.49

$

In Stock, only 3 left!

0

18

Honda 98079-55846

SEE PART DETAILS - PRI; SPARK PLUG (BPR5ES) (NGK) (Honda Code 1672443).

$3.99

$

In Stock, Qty 20+

0

18

Honda 98079-55855

SEE PART DETAILS - PRI; SPARK PLUG (W16EPR-U) (DENSO) (Honda Code 1672450).

$3.49

$

Usually ships in 3-6 days

0
