GXV340 K1 DA (GJ02) - Honda Engine, Made in Japan (SN: GJ02-1100001 - GJ02-5999999) CRANKSHAFT Parts Diagram

Engine, Made in Japan

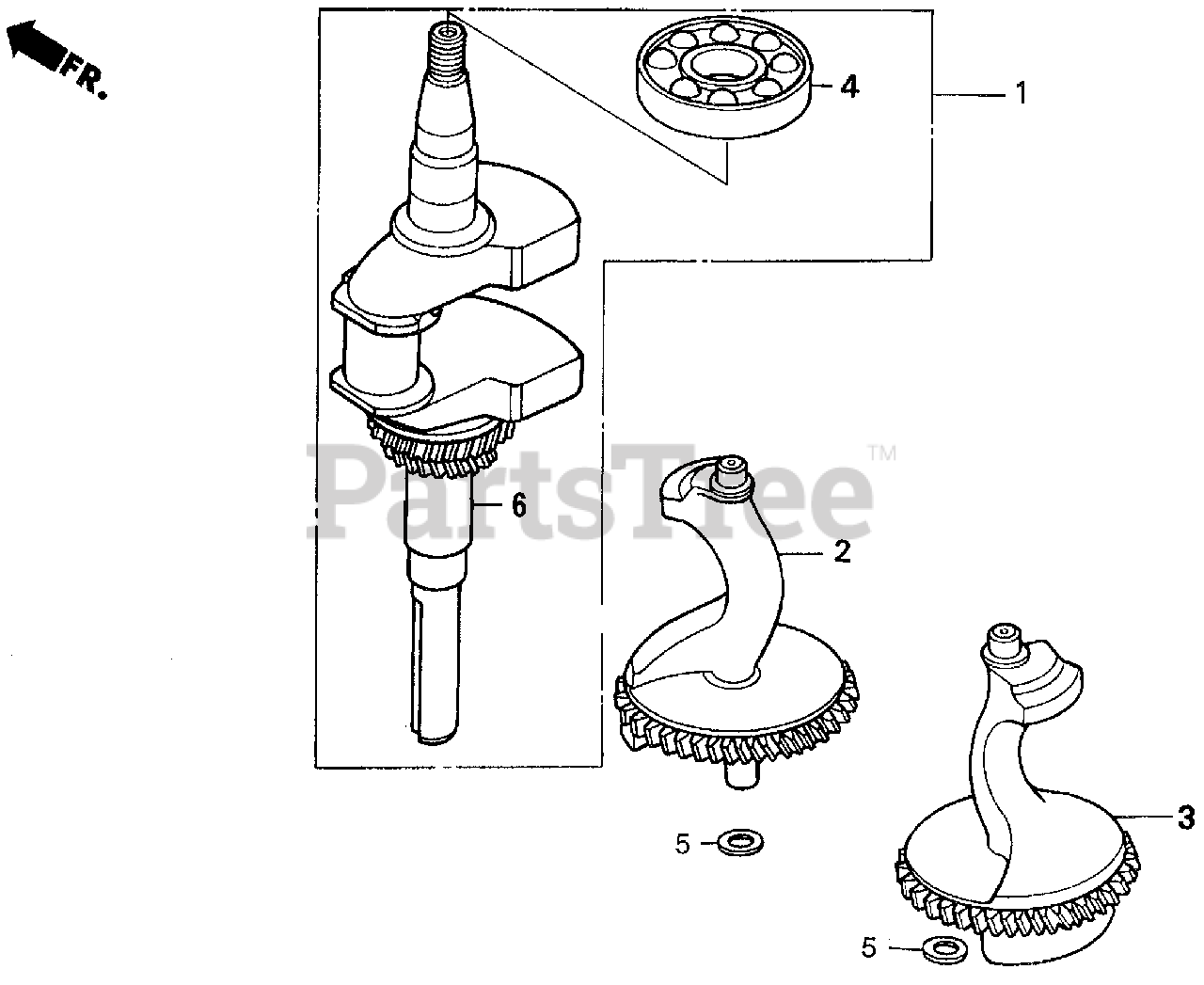

CRANKSHAFT Parts Diagram

  • Title
1

Honda 13310-ZF5-010

SEE PART DETAILS - PRI; CRANKSHAFT (Honda Code 3223781).

Note: Use up to Engine SN 1106370.

$

$

Currently unavailable

1

Honda 13310-ZF5-010

SEE PART DETAILS - PRI; CRANKSHAFT (Honda Code 3223781).

Note: Use up to Engine SN 2087311.

$

$

Currently unavailable

1

Honda 13310-ZF5-020

CRANKSHAFT (Honda Code 4618435).

Note: Use from Engine SN 2087312 to 2098293.

$

$

Not available

2

Honda 13351-ZE9-600

WEIGHT A, BALANCER (Honda Code 3131851).

Note: Use up to Engine SN 2086152.

$

$

Not available

2

Honda 13351-ZE9-601

WEIGHT A, BALANCER (Honda Code 4608394).

Note: Use from Engine SN 2086153 to 2100576.

$

$

Currently unavailable

2

Honda 13351-ZE9-603

SEE PART DETAILS - PRI; WEIGHT A, BALANCER (Honda Code 4949764).

Note: Use from Engine SN 2100577 to 2103046.

$258.99

$

Usually ships in 3-6 days

0

2

Honda 13351-ZE9-603

SEE PART DETAILS - PRI; WEIGHT A, BALANCER (Honda Code 4949764).

Note: Use from Engine SN 2103047.

$258.99

$

Usually ships in 3-6 days

0

3

Honda 13356-ZE9-600

WEIGHT B, BALANCER (Honda Code 3131877).

Note: Use up to Engine SN 2086152.

$

$

Not available

3

Honda 13356-ZE9-601

WEIGHT B, BALANCER (Honda Code 4608402).

Note: Use from Engine SN 2086153 to 2100576.

$

$

Not available

3

Honda 13356-ZE9-604

SEE PART DETAILS - PRI; WEIGHT B, BALANCER (Honda Code 4949772).

Note: Use from Engine SN 2100577 to 2100586.

$273.99

$

Usually ships in 3-6 days

0

3

Honda 13356-ZE9-604

SEE PART DETAILS - PRI; WEIGHT B, BALANCER (Honda Code 4949772).

Note: Use from Engine SN 2100577.

$273.99

$

Usually ships in 3-6 days

0

4

Honda 96100-62070-00

BEARING, RADIAL BALL (6207) (Honda Code 0997320).

Note: Use up to Engine SN 2098353.

$56.99

$

Usually ships in 3-6 days

0

5

Honda 13310-ZF5-030

SEE PART DETAILS - SUP; CRANKSHAFT (Honda Code 4788683).

Note: Use from Engine SN 2098294.

$

$

Currently unavailable

5

Honda 90417-HA0-000

WASHER, THRUST (14MM) (Honda Code 1824507).

Note: Use from Engine SN 2100577.

$4.99

$

Usually ships in 3-6 days

0
