GXV340 DAP4 (GJ02) - Honda Engine, Made in Japan (SN: GJ02-1000001 - GJ02-1009980) AIR CLEANER Parts Diagram

Engine, Made in Japan

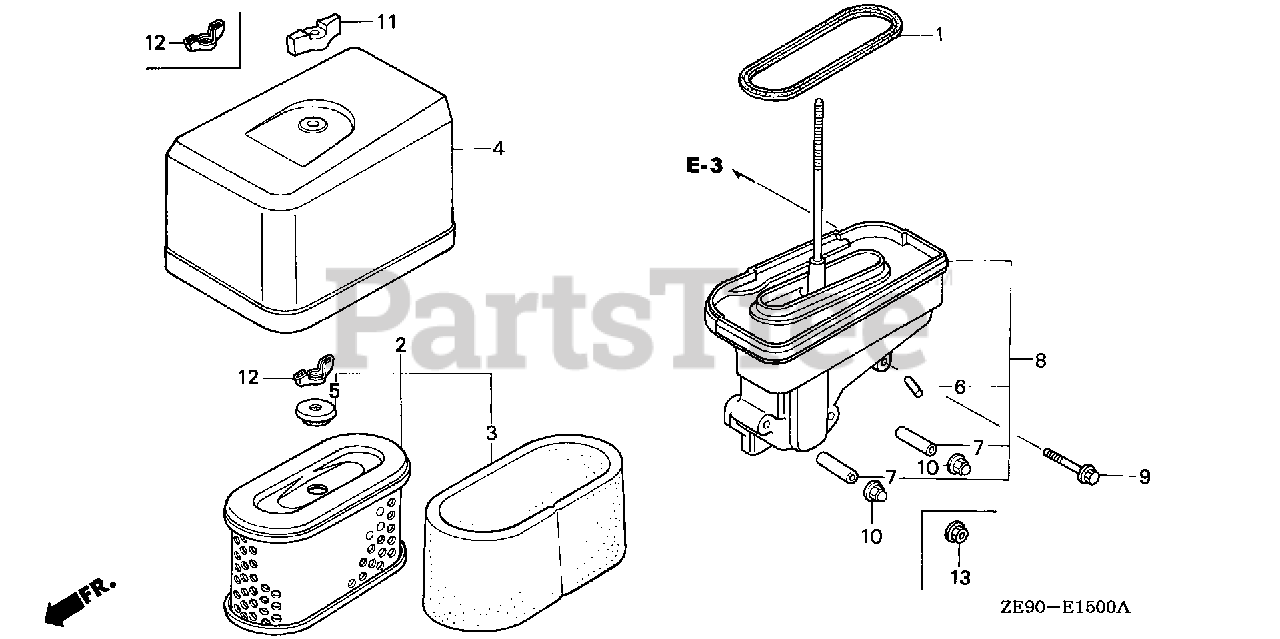

AIR CLEANER Parts Diagram

  • Title

1

Honda 16271-ZE8-000

GASKET, ELBOW

$5.49

$

Usually ships in 3-6 days

0

2

Honda 17210-ZF5-505

SEE PART DETAILS - PRI; ELEMENT, AIR CLEANER (METAL BASE)
(Superseded to 17210-ZF5-010)

$37.99

$

In Stock, Qty 11

0

3

Honda 17218-ZF5-505

FILTER (OUTER)
(Superseded to 17218-ZF5-305)

$9.49

$

In Stock, only 2 left!

0

4

Honda 17230-ZE8-013

COVER, AIR CLEANER (DUAL)

Note: Use up to Engine SN 1035689.

$39.99

$

Usually ships in 3-6 days

0

4

Honda 17230-ZE8-901

COVER, AIR CLEANER (DUAL)

Note: Use from Engine SN 1035690.

$40.99

$

Usually ships in 3-6 days

0

5

Honda 17232-891-000

GROMMET, AIR CLEANER

$6.49

$

In Stock, Qty 20+

0

6

Honda 17238-ZE1-000

COLLAR, AIR CLEANER

$6.49

$

Usually ships in 3-6 days

0

7

Honda 17238-ZE2-310

COLLAR, AIR CLEANER

$5.49

$

In Stock, Qty 10

0

8

Honda 17410-ZE8-013

ELBOW, AIR CLEANER

Note: Use up to Engine SN 1035689.

$50.99

$

In Stock, only 1 left!

0

8

Honda 17410-ZE8-901

ELBOW, AIR CLEANER

Note: Use from Engine SN 1035690.

$34.99

$

Usually ships in 3-6 days

0

9

Honda 90014-ZE6-000

BOLT, FLANGE (6X35) (CT200)

$2.99

$

In Stock, Qty 6

0

10

Honda 90201-415-000

NUT, CAP (6MM)

$2.99

$

In Stock, Qty 6

0

11

Honda 90301-ZV0-000

WINGNUT
(Superseded to 90301-ZVA-000)

$9.49

$

Usually ships in 3-6 days

0

12

Honda 90325-044-000

NUT, TOOL BOX SETTING

$5.99

$

In Stock, Qty 20+

0
