GXV340 DAP2 (GJ02) - Honda Engine, Made in Japan (SN: GJ02-1000001 - GJ02-1009980) MUFFLER Parts Diagram

Engine, Made in Japan

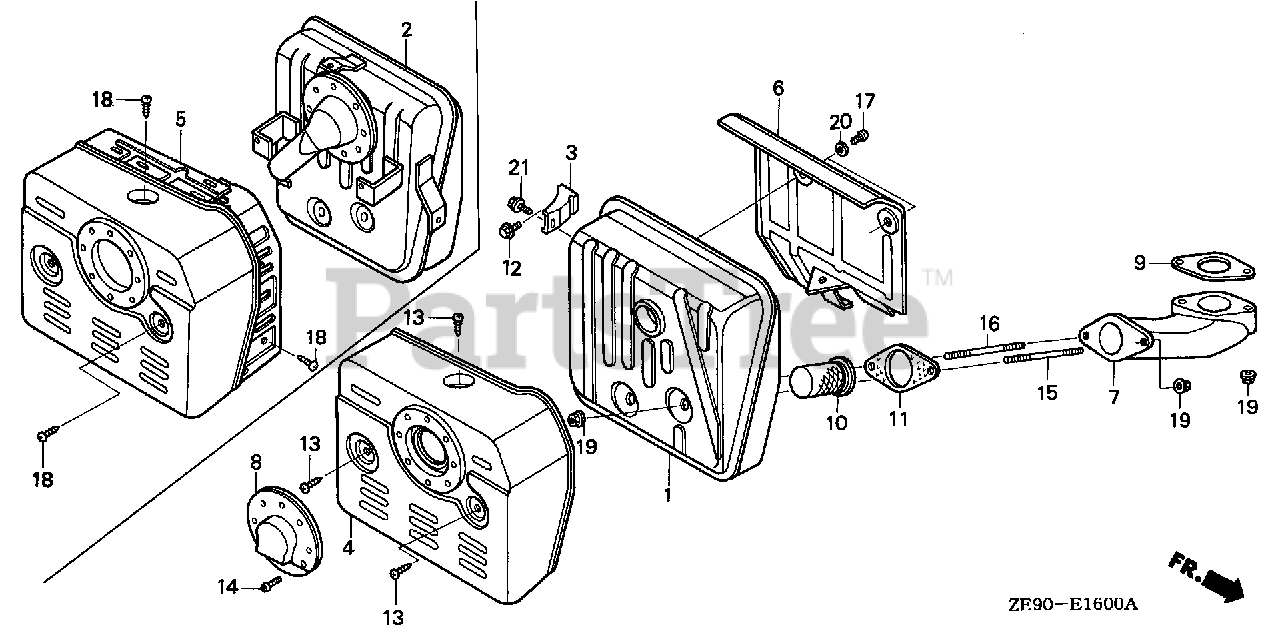

MUFFLER Parts Diagram

  • Title

2

Honda 18310-ZE9-901

MUFFLER

$

$

Not available

3

Honda 18318-ZE8-000

STAY, MUFFLER

$12.99

$

Usually ships in 3-6 days

0

5

Honda 18320-ZE9-901

PROTECTOR, MUFFLER

$61.99

$

Usually ships in 3-6 days

0

6

Honda 18325-ZE9-010

SEPARATOR, MUFFLER

$32.99

$

In Stock, only 1 left!

0

7

Honda 18330-ZE9-000

PIPE, EX.

Note: (Optional).

$90.99

$

Usually ships in 3-6 days

0

9

Honda 18333-ZE3-800

SEE PART DETAILS - SUP; GASKET, EX. PIPE
(Superseded to 18333-ZK6-Y00)

$5.49

$

In Stock, Qty 20+

0

9

Honda 18333-ZK6-Y00

SEE PART DETAILS - PRI; GASKET, EX. PIPE

$5.49

$

In Stock, Qty 20+

0

11

Honda 18382-ZE9-800

GASKET, EX. PIPE

$13.99

$

In Stock, only 2 left!

0

12

Honda 90031-883-000

BOLT, FLANGE (8X16)

Note: (Optional).

$6.49

$

In Stock, only 1 left!

0

15

Honda 92900-08060-1B

BOLT, STUD (8X60)

$4.49

$

In Stock, only 1 left!

0

16

Honda 92900-08070-1B

BOLT, STUD (8X70)

$3.99

$

In Stock, only 1 left!

0

17

Honda 93500-06006-0A

SCREW, PAN (6X6)

$1.49

$

Usually ships in 3-6 days

0

18

Honda 93903-35010

SCREW, TAPPING (5X8)

$0.99

$

Usually ships in 3-6 days

0

19

Honda 94050-08000

NUT, FLANGE (8MM)

$1.49

$

In Stock, Qty 20+

0

20

Honda 94101-06800

WASHER, PLAIN (6MM)

$0.99

$

In Stock, Qty 20+

0

21

Honda 95701-08014-00

BOLT, FLANGE (8X14)

$2.49

$

In Stock, Qty 20+

0

21

Honda 95800-08014-00

BOLT, FLANGE (8X14)

$2.49

$

Usually ships in 3-6 days

0
