GXV340 DAE2 (GJ02) - Honda Engine, Made in Japan (SN: GJ02-1000001 - GJ02-1009980) CYLINDER Parts Diagram

Engine, Made in Japan

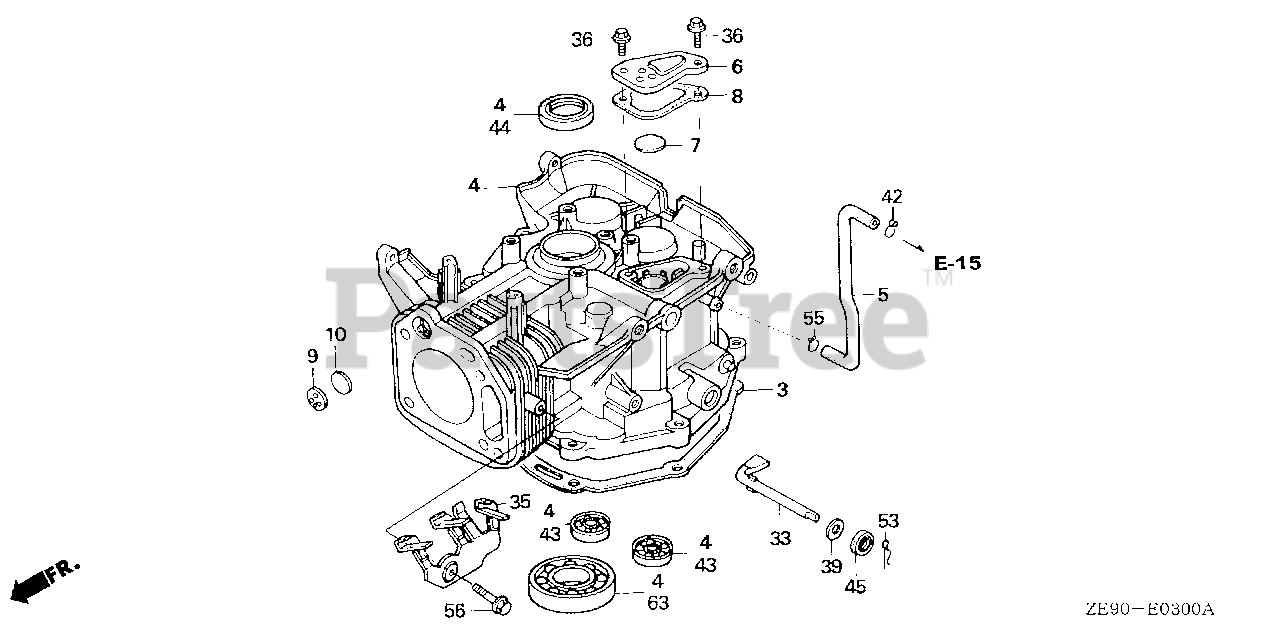

CYLINDER Parts Diagram

  • Title

3

Honda 11381-ZE9-306

SEE PART DETAILS - SUP; GASKET, OIL PAN
(Superseded to 11381-ZE9-801)

$16.99

$

In Stock, only 3 left!

0

3

Honda 11381-ZE9-800

SEE PART DETAILS - PRI; GASKET, OIL PAN
(Superseded to 11381-ZE9-801)

$16.99

$

In Stock, only 3 left!

0

4

Honda 120A0-ZE9-000

CYLINDER ASSY.

$

$

Not available

5

Honda 12315-ZE9-000

TUBE, BREATHER (NOT AVAILABLE)

$

$

Not available

6

Honda 12370-ZE8-000

CAP, BREATHER CHAMBER

$

$

Not available

7

Honda 12372-ZE2-300

VALVE, BREATHER

$3.99

$

In Stock, Qty 5

0

8

Honda 12373-ZE8-000

GASKET, BREATHER CAP

$3.49

$

Usually ships in 3-6 days

0

33

Honda 16541-ZE8-010

SHAFT, GOVERNOR ARM

$14.99

$

Usually ships in 3-6 days

0

35

Honda 30615-ZE8-000

STAY, SWITCH WIRE CLAMP (NOT AVAILABLE)

$

$

Currently unavailable

36

Honda 90013-883-000

BOLT, FLANGE (6X12) (CT200)

$1.99

$

In Stock, Qty 20+

0

39

Honda 90406-VM6-000

WASHER, THRUST (8.1MM)

$3.99

$

Usually ships in 3-6 days

0

42

Honda 95002-70000

CLIP, TUBE (C11)

$2.49

$

In Stock, Qty 5

0

43

Honda 96100-62020-00

BEARING, RADIAL BALL (6202)

$12.99

$

Usually ships in 3-6 days

0

44

Honda 91201-ZE3-004

OIL SEAL (35X52X8)

$10.99

$

In Stock, Qty 8

0

45

Honda 91201-ZE9-003

SEE PART DETAILS - PRI; OIL SEAL (8X14X5)

$5.49

$

In Stock, Qty 11

0

53

Honda 94251-08000

PIN, LOCK (8MM)

$1.99

$

In Stock, Qty 13

0

55

Honda 95002-70000

CLIP, TUBE (C11)

$2.49

$

In Stock, Qty 5

0

56

Honda 95701-06012-00

SEE PART DETAILS - PRI; BOLT, FLANGE (6X12)

$2.49

$

In Stock, Qty 20+

0
