GXV270 DN (GJ01) - Honda Engine, Made in Japan (SN: GJ01-1000001 - GJ01-1034654) RECOIL STARTER Parts Diagram

Engine, Made in Japan

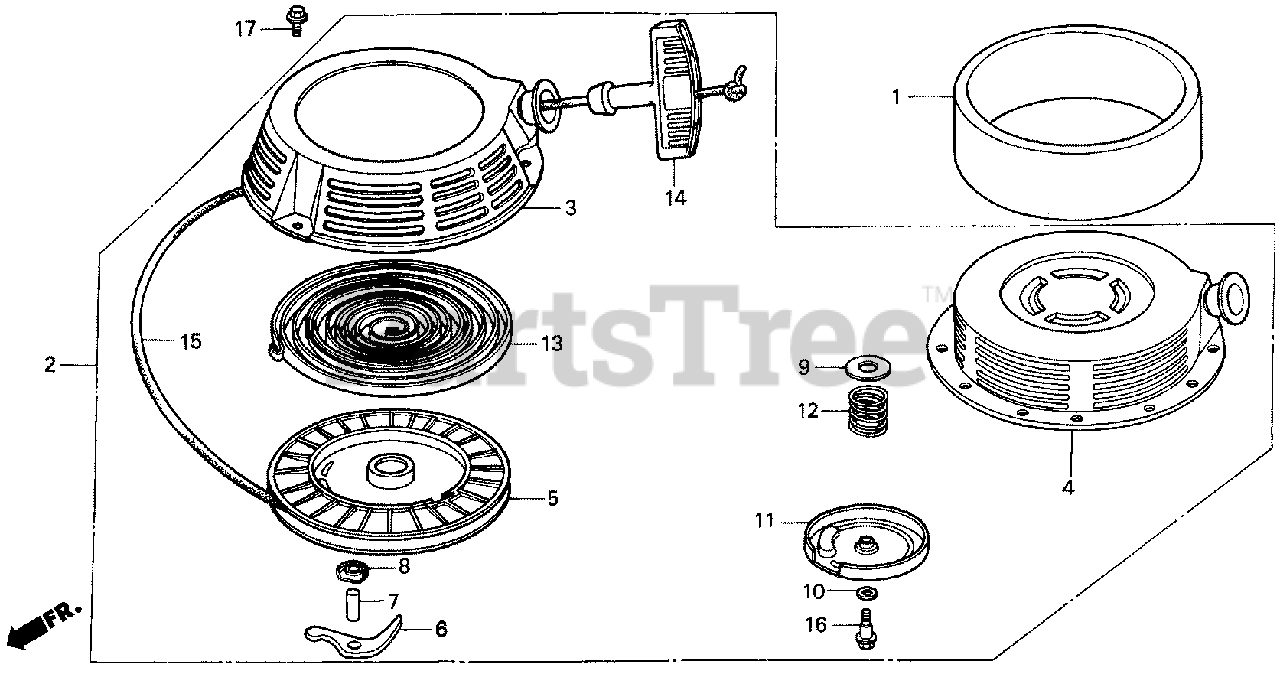

RECOIL STARTER Parts Diagram

  • Title
2

Honda 28400-ZE8-003ZA

STARTER ASSY., RECOIL (Honda Code 4224879).

$

$

Not available

3

Honda 28410-ZE8-003ZA

CASE, RECOIL STARTER *R8* (Honda Code 3625571). (BRIGHT RED)

$

$

Currently unavailable

5

Honda 28420-889-631

REEL, STARTER (Honda Code 1956572).

$34.99

$

Usually ships in 3-6 days

0

6

Honda 28422-ZE1-711

RATCHET, STARTER (Honda Code 1950807).

$5.49

$

Usually ships in 3-6 days

0

7

Honda 28423-ZE1-711

SHAFT, RATCHET (Honda Code 1950815).

$8.99

$

Usually ships in 3-6 days

0

8

Honda 28424-ZE1-711

PLATE, GUIDE (Honda Code 1956580).
(Superseded to 28424-ZE1-712)

$4.99

$

Usually ships in 3-6 days

0

8

Honda 28424-ZE1-712

PLATE, GUIDE (Honda Code 4590527).

$4.99

$

Usually ships in 3-6 days

0

9

Honda 28431-ZE1-711

PLATE A, FRICTION (Honda Code 1950823).

$3.99

$

Usually ships in 3-6 days

0

10

Honda 28432-ZG0-003

PLATE B, FRICTION (Honda Code 1795459).

$2.99

$

Usually ships in 3-6 days

0

11

Honda 28434-ZE1-711

COVER, REEL STARTER (Honda Code 1950831).

$

$

Not available

12

Honda 28441-ZE1-711

SPRING, FRICTION (Honda Code 1950849).

$3.49

$

Usually ships in 3-6 days

0

13

Honda 28442-ZE1-711

SEE PART DETAILS - SUP; SPRING, RETURN (Honda Code 1950856).
(Superseded to 28442-ZE1-713)

$21.99

$

Usually ships in 3-6 days

0

13

Honda 28442-ZE1-713

SEE PART DETAILS - PRI; SPRING, RETURN (Honda Code 4617403).

$21.99

$

Usually ships in 3-6 days

0

14

Honda 28461-889-631

GRIP, STARTER (Honda Code 1956606).

$10.99

$

In Stock, Qty 14

0

15

Honda 28462-ZE2-003

SEE PART DETAILS - SUP; ROPE, STARTER (#5X59") (Honda Code 2026367). (N/A: USE ALT. PNO 08550-ZG921-11)

$

$

Currently unavailable

16

Honda 90003-ZG0-003

BOLT, REEL COVER (Honda Code 1795715).

$

$

Not available

17

Honda 90002-ZE8-810

BOLT, FLANGE (6X10) (Honda Code 2832061). (NOT AVAILABLE)

Note: Use from Engine SN 1059681.

$

$

Currently unavailable

17

Honda 90012-ZE6-000

BOLT, FLANGE (6X8) (Honda Code 1454743).

Note: Use up to Engine SN 1059680.

$2.49

$

In Stock, only 3 left!

0
