GXV270 DAT (GJ01) - Honda Engine, Made in Japan (SN: GJ01-1000001 - GJ01-1034654) PISTON Parts Diagram

Engine, Made in Japan

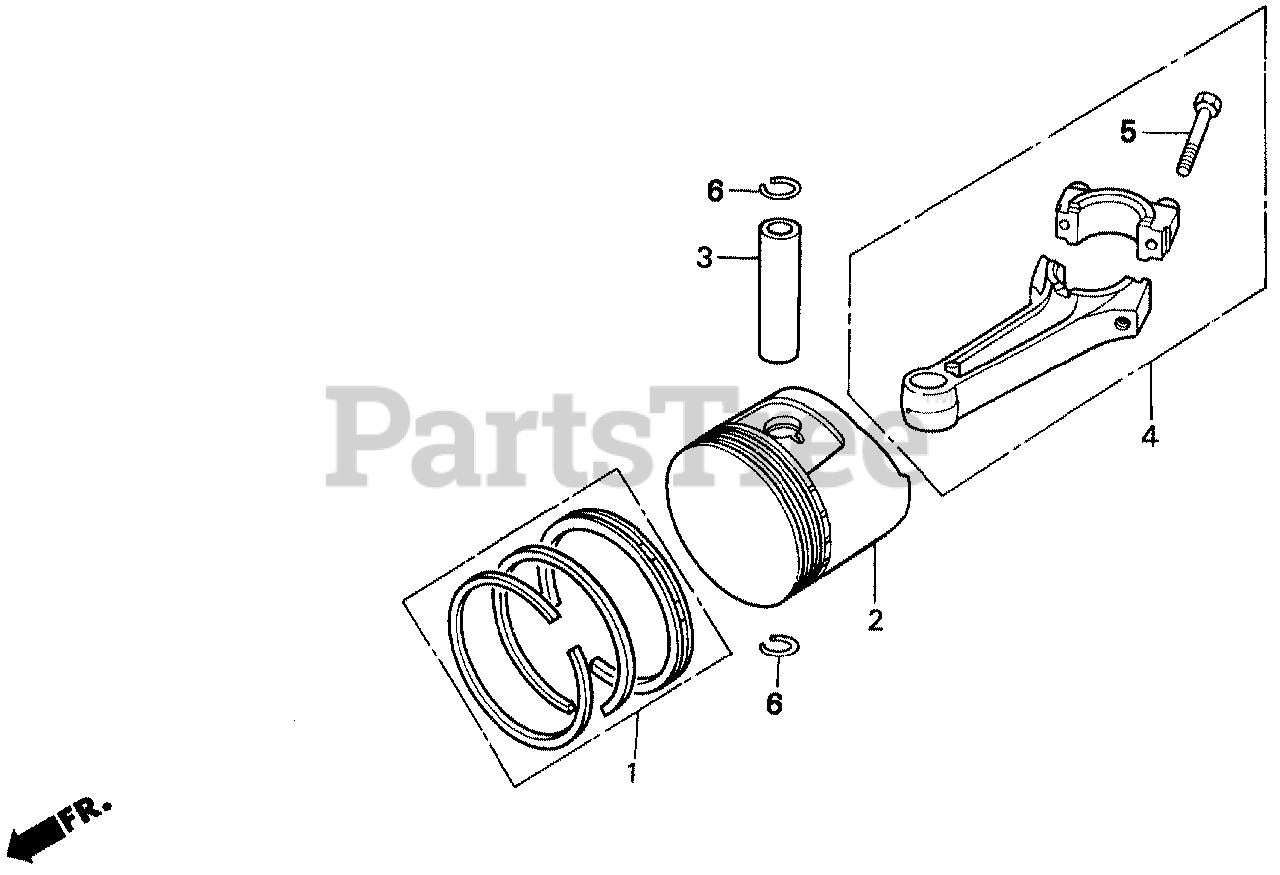

PISTON Parts Diagram

  • Title

1

Honda 13010-ZE8-003

SEE PART DETAILS - SUP; RING SET, PISTON (STD) (Honda Code 2379857).
(Superseded to 13010-ZE8-013)

Note: Use up to Engine SN 1065100.

$

$

Not available

1

Honda 13010-ZE8-004

SEE PART DETAILS - SUP; RING SET, PISTON (STD) (Honda Code 2379865).
(Superseded to 13010-ZE8-013)

Note: Use up to Engine SN 1065100.

$

$

Not available

1

Honda 13010-ZE8-013

SEE PART DETAILS - PRI; RING SET, PISTON (STD) (Honda Code 3023546).

$

$

Not available

1

Honda 13011-ZE8-003

SEE PART DETAILS - SUP; RING SET, PISTON (OS 0.25) (Honda Code 2379873).
(Superseded to 13011-ZE8-013)

Note: (Optional). Use up to Engine SN 1065100.

$

$

Not available

1

Honda 13011-ZE8-004

SEE PART DETAILS - SUP; RING SET, PISTON (OS 0.25) (Honda Code 2379881).
(Superseded to 13011-ZE8-013)

Note: (Optional). Use up to Engine SN 1065100.

$

$

Not available

1

Honda 13011-ZE8-013

SEE PART DETAILS - PRI; RING SET, PISTON (OS 0.25) (Honda Code 3023553).

Note: (Optional).

$

$

Not available

1

Honda 13012-ZE8-003

SEE PART DETAILS - SUP; RING SET, PISTON (OS 0.50) (Honda Code 2379899).

Note: (Optional). Use up to Engine SN 1065100.

$

$

Not available

1

Honda 13012-ZE8-004

SEE PART DETAILS - SUP; RING SET, PISTON (OS 0.50) (Honda Code 2379907).

Note: (Optional). Use up to Engine SN 1065100.

$

$

Not available

1

Honda 13012-ZE8-013

SEE PART DETAILS - PRI; RING SET, PISTON (OS 0.50) (Honda Code 3017985).

Note: (Optional).

$

$

Currently unavailable

1

Honda 13013-ZE8-003

SEE PART DETAILS - SUP; RING SET, PISTON (0.75) (Honda Code 2379915).
(Superseded to 13013-ZE8-013)

Note: (Optional). Use up to Engine SN 1065100.

$

$

Not available

1

Honda 13013-ZE8-004

SEE PART DETAILS - SUP; RING SET, PISTON (0.75) (Honda Code 2379923).
(Superseded to 13013-ZE8-013)

Note: (Optional). Use up to Engine SN 1065100.

$

$

Not available

1

Honda 13013-ZE8-013

SEE PART DETAILS - PRI; RING SET, PISTON (0.75) (Honda Code 3018009).

Note: (Optional).

$

$

Not available

1

Honda 13013-ZE8-014

SEE PART DETAILS - SUP; RING SET, PISTON (0.75) (Honda Code 3018017).

Note: (Optional).

$

$

Currently unavailable

2

Honda 13101-ZE8-010

PISTON (STD) (Honda Code 2962082).

$

$

Not available

2

Honda 13102-ZE8-010

PISTON (OS 0.25) (Honda Code 3013349).

Note: (Optional).

$73.99

$

Usually ships in 3-6 days

0

2

Honda 13103-ZE8-010

PISTON (OS 0.50) (Honda Code 3008315).

Note: (Optional).

$66.99

$

Usually ships in 3-6 days

0

2

Honda 13104-ZE8-010

PISTON (0.75) (Honda Code 3194388).

Note: (Optional).

$73.99

$

Usually ships in 3-6 days

0

3

Honda 13111-ZE2-000

PIN, PISTON (Honda Code 2025484).

$13.99

$

In Stock, only 1 left!

0

4

Honda 13200-ZE8-010

SEE PART DETAILS - PRI; ROD ASSY., CONNECTING (Honda Code 6820351).

$

$

Not available

4

Honda 13200-ZE8-305

ROD ASSY., CONNECTING (US) (Honda Code 2379964).

Note: (Optional).

$

$

Not available

5

Honda 90001-ZE8-000

BOLT, CONNECTING ROD (Honda Code 2160489).

$4.49

$

In Stock, only 1 left!

0

6

Honda 90551-ZE1-000

CLIP, PISTON PIN (18MM) (Honda Code 2539120).

Note: Use from Engine SN 1060086.

$1.49

$

In Stock, Qty 18

0

6

Honda 94601-18000

CLIP, PISTON PIN (18MM) (Honda Code 0317305).

Note: Use up to Engine SN 1060085.

$1.49

$

Usually ships in 3-6 days

0
