GXV270 DAP4 (GJ01) - Honda Engine, Made in Japan (SN: GJ01-1000001 - GJ01-1034654) CARBURETOR Parts Diagram

Engine, Made in Japan

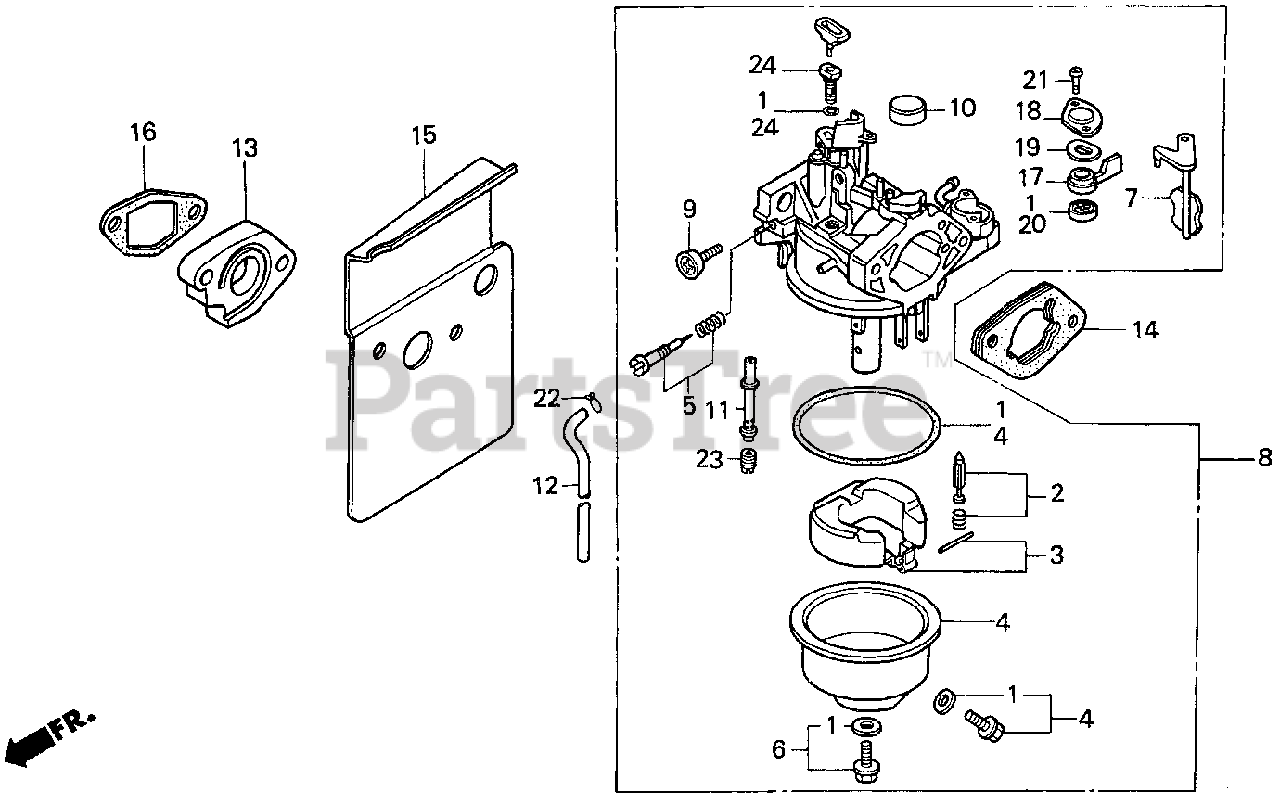

CARBURETOR Parts Diagram

  • Title
1

Honda 16010-ZE8-901

GASKET SET (Honda Code 2324044).

$

$

Not available

2

Honda 16011-ZA0-931

VALVE SET, FLOAT (Honda Code 2059236).

$45.99

$

In Stock, only 1 left!

0

3

Honda 16013-ZA0-931

FLOAT SET (Honda Code 2059244).

$51.99

$

In Stock, only 1 left!

0

4

Honda 16015-ZE8-005

SEE PART DETAILS - PRI; CHAMBER SET, FLOAT (Honda Code 2089993).

$46.99

$

Usually ships in 3-6 days

0

5

Honda 16016-ZE8-901

SCREW SET (Honda Code 2324051).

$

$

Not available

6

Honda 16028-ZE0-005

SEE PART DETAILS - PRI; SCREW SET B (Honda Code 1441518).
(Superseded to 16028-ZK7-S91)

$13.99

$

In Stock, only 1 left!

0

7

Honda 16044-ZE2-005

CHOKE SET (Honda Code 2090017).

$37.99

$

Usually ships in 3-6 days

0

8

Honda 16100-ZE8-902

SEE PART DETAILS - SUP; CARBURETOR ASSY. (BE41A B) (Honda Code 2461788).

$

$

Not available

9

Honda 16124-ZE0-005

SCREW, THROTTLE STOP (Honda Code 1441559).

$17.99

$

In Stock, only 1 left!

0

10

Honda 16148-141-881

CAP, CHOKE LEVER DUST (Honda Code 2110468).

$6.99

$

In Stock, only 1 left!

0

11

Honda 16166-ZE8-901

NOZZLE, MAIN (Honda Code 2324077).

$

$

Not available

13

Honda 16211-ZE8-000

INSULATOR, CARBURETOR (Honda Code 2090041).

$

$

Not available

14

Honda 16220-ZA0-702

SEE PART DETAILS - PRI; SPACER, CARBURETOR (Honda Code 2686533).

Note: Use up to Engine SN 1060085.

$11.99

$

In Stock, only 4 left!

0

14

Honda 16220-ZA0-702

SEE PART DETAILS - PRI; SPACER, CARBURETOR (Honda Code 2686533).

Note: Use from Engine SN 1060086.

$11.99

$

In Stock, only 4 left!

0

15

Honda 16221-ZE8-800

SEE PART DETAILS - PRI; GASKET, CARBURETOR (Honda Code 5784616).

$

$

Not available

16

Honda 16223-ZE8-000

GASKET, INSULATOR (Honda Code 2090074). (NOT AVAILABLE)

$

$

Currently unavailable

23

Honda 99101-ZE8-0800

JET, MAIN (#80) (Honda Code 2489722).

Note: (Optional).

$12.99

$

Usually ships in 3-6 days

0

23

Honda 99101-ZE8-0820

JET, MAIN (#82) (Honda Code 2488575).

Note: (Optional).

$11.99

$

Usually ships in 3-6 days

0

23

Honda 99101-ZE8-0850

JET, MAIN (#85) (Honda Code 2324309).

$11.99

$

Usually ships in 3-6 days

0

24

Honda 99204-ZA0-0450

JET SET, PILOT (#45) (Honda Code 2060465).

$25.99

$

In Stock, only 1 left!

0
