GXV270 DAP2 (GJ01) - Honda Engine, Made in Japan (SN: GJ01-1000001 - GJ01-1034654) CRANKSHAFT + PISTON Parts Diagram

Engine, Made in Japan

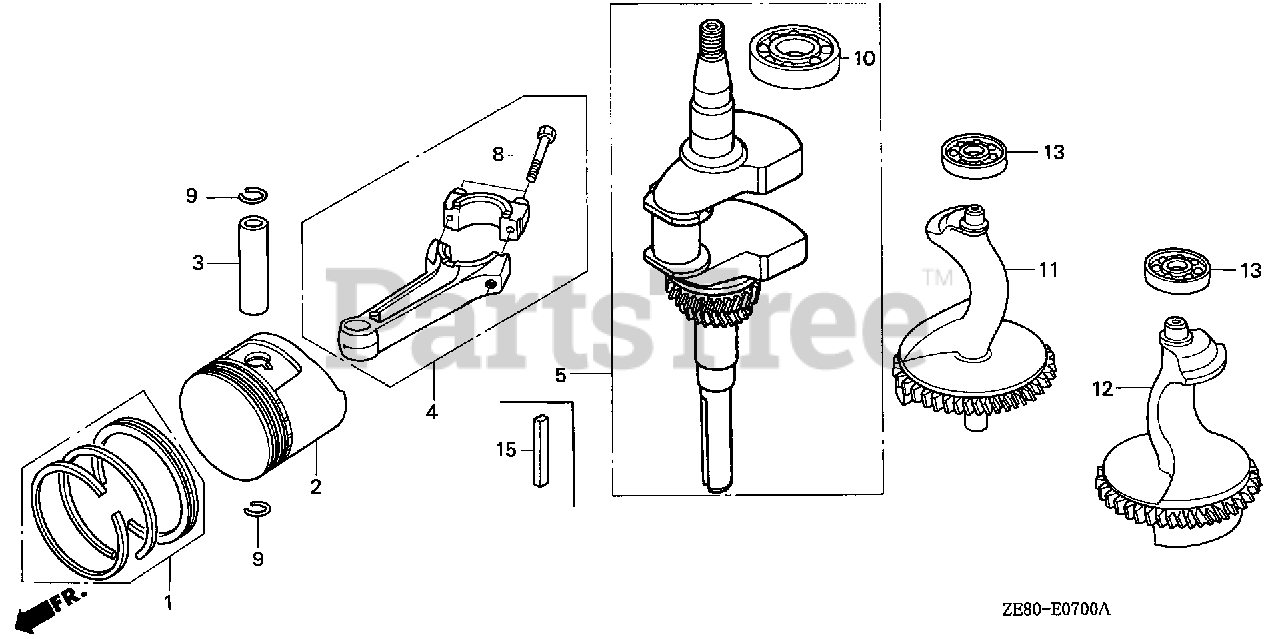

CRANKSHAFT + PISTON Parts Diagram

  • Title

1

Honda 13010-ZE8-003

SEE PART DETAILS - SUP; RING SET, PISTON (STD) (NIPPON)
(Superseded to 13010-ZE8-013)

Note: Use up to Engine SN 1065100.

$

$

Not available

1

Honda 13010-ZE8-004

SEE PART DETAILS - SUP; RING SET, PISTON (STD)
(Superseded to 13010-ZE8-013)

Note: Use up to Engine SN 1065100.

$

$

Not available

1

Honda 13010-ZE8-013

SEE PART DETAILS - PRI; RING SET, PISTON (STD) (NIPPON) (NOT AVAILABLE)

Note: Use from Engine SN 1065101.

$

$

Not available

1

Honda 13010-ZE8-014

SEE PART DETAILS - SUP; RING SET, PISTON (STD)
(Superseded to 13010-ZE8-013)

Note: Use from Engine SN 1065101.

$

$

Not available

1

Honda 13011-ZE8-003

SEE PART DETAILS - SUP; RING SET, PISTON (0.25) (NIPPON)
(Superseded to 13011-ZE8-013)

Note: (Optional). Use up to Engine SN 1065100.

$

$

Not available

1

Honda 13011-ZE8-004

SEE PART DETAILS - SUP; RING SET, PISTON (0.25)
(Superseded to 13011-ZE8-013)

Note: (Optional). Use up to Engine SN 1065100.

$

$

Not available

1

Honda 13011-ZE8-013

SEE PART DETAILS - PRI; RING SET, PISTON (0.25) (NIPPON) (NOT AVAILABLE)

Note: (Optional). Use from Engine SN 1065101.

$

$

Not available

1

Honda 13011-ZE8-014

RING SET, PISTON (0.25)

Note: (Optional). Use from Engine SN 1065101.

$

$

Currently unavailable

1

Honda 13012-ZE8-003

SEE PART DETAILS - SUP; RING SET, PISTON (0.50) (NIPPON)

Note: (Optional). Use up to Engine SN 1065100.

$

$

Not available

1

Honda 13012-ZE8-004

SEE PART DETAILS - SUP; RING SET, PISTON (0.50)

Note: (Optional). Use up to Engine SN 1065100.

$

$

Not available

1

Honda 13012-ZE8-013

SEE PART DETAILS - PRI; RING SET, PISTON (0.50) (NIPPON) (NOT AVAILABLE)

Note: (Optional). Use from Engine SN 1065101.

$

$

Currently unavailable

1

Honda 13012-ZE8-014

RING SET, PISTON (0.50)

Note: (Optional). Use from Engine SN 1065101.

$

$

Currently unavailable

1

Honda 13013-ZE8-003

SEE PART DETAILS - SUP; RING SET, PISTON (0.75) (NIPPON)
(Superseded to 13013-ZE8-013)

Note: (Optional). Use up to Engine SN 1065100.

$

$

Not available

1

Honda 13013-ZE8-004

SEE PART DETAILS - SUP; RING SET, PISTON (0.75)
(Superseded to 13013-ZE8-013)

Note: (Optional). Use up to Engine SN 1065100.

$

$

Not available

1

Honda 13013-ZE8-013

SEE PART DETAILS - PRI; RING SET, PISTON (0.75) (NIPPON)

Note: (Optional).

$

$

Not available

2

Honda 13101-ZE8-010

PISTON (STD)

$

$

Not available

2

Honda 13102-ZE8-010

PISTON (0.25)

Note: (Optional).

$73.99

$

Usually ships in 3-6 days

0

2

Honda 13103-ZE8-010

PISTON (0.50)

Note: (Optional).

$66.99

$

Usually ships in 3-6 days

0

2

Honda 13104-ZE8-010

PISTON (0.75)

Note: (Optional).

$73.99

$

Usually ships in 3-6 days

0

3

Honda 13111-ZE2-000

PIN, PISTON

$13.99

$

In Stock, only 1 left!

0

4

Honda 13200-ZE8-010

ROD ASSY., CONNECTING

$

$

Not available

4

Honda 13200-ZE8-305

ROD ASSY., CONNECTING (0.25 LOWER SIZE)

Note: (Optional).

$

$

Not available

5

Honda 13310-ZE8-000

CRANKSHAFT (NOT AVAILABLE)

$

$

Currently unavailable

8

Honda 90001-ZE8-000

BOLT, CONNECTING ROD

$4.49

$

In Stock, only 1 left!

0

9

Honda 90551-ZE1-000

CLIP, PISTON PIN (18MM)

Note: Use from Engine SN 1060086.

$1.49

$

In Stock, Qty 20+

0

9

Honda 94601-18000

CLIP, PISTON PIN (18MM)

Note: Use up to Engine SN 1060085.

$1.49

$

Usually ships in 3-6 days

0

10

Honda 96100-62060-00

BEARING, RADIAL BALL (6206)

$30.99

$

In Stock, only 1 left!

0

11

Honda 13351-ZE8-000

WEIGHT A, BALANCER

$

$

Currently unavailable

12

Honda 13356-ZE8-000

WEIGHT B, BALANCER

$

$

Currently unavailable

13

Honda 96100-62020-00

BEARING, RADIAL BALL (6202)

$12.99

$

In Stock, only 1 left!

0
