GXV270 DAP2 (GJ01) - Honda Engine, Made in Japan (SN: GJ01-1000001 - GJ01-1034654) CAMSHAFT + VALVE Parts Diagram

Engine, Made in Japan

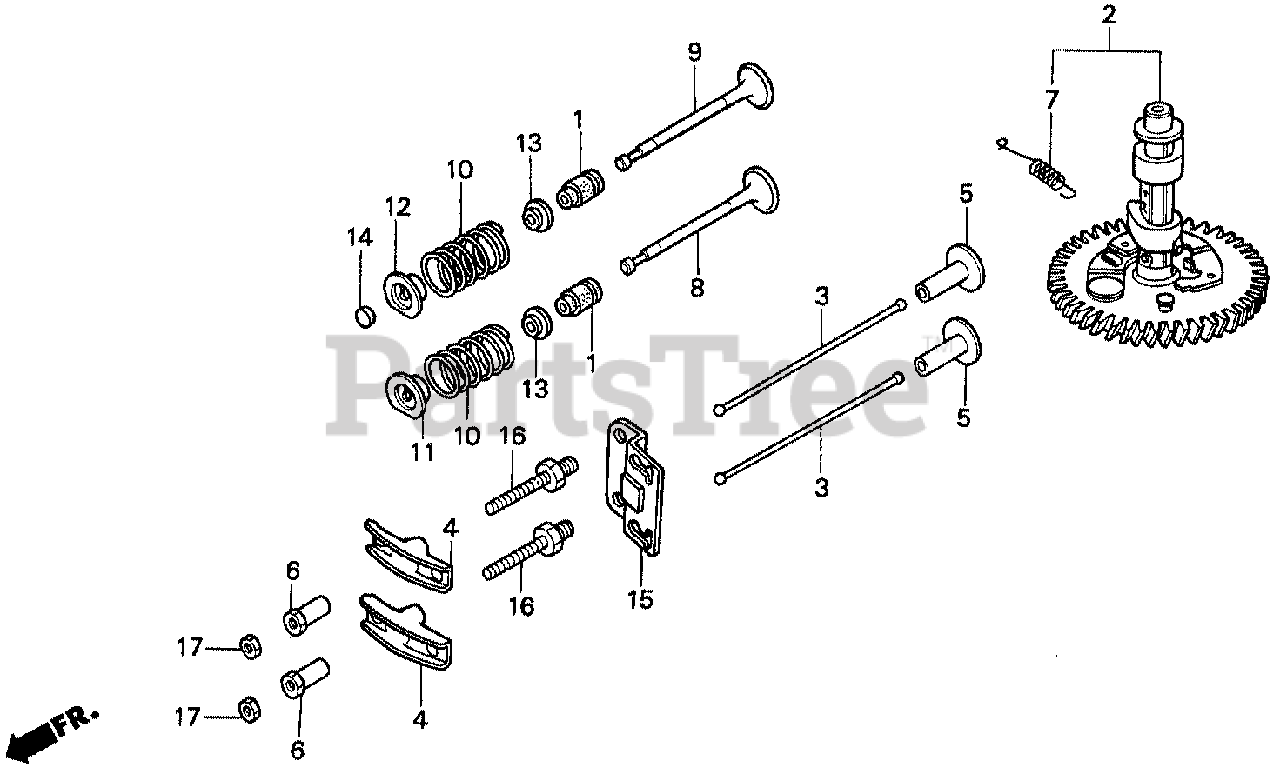

CAMSHAFT + VALVE Parts Diagram

  • Title
1

Honda 12209-ZE8-003

SEAL, VALVE STEM (Honda Code 2089571).

$8.49

$

In Stock, Qty 16

0

2

Honda 14100-ZE8-010

CAMSHAFT ASSY. (NOT AVAILABLE) (Honda Code 2461721).

$

$

Not available

3

Honda 14410-ZE2-013

ROD, PUSH (Honda Code 3337169).

$9.99

$

In Stock, only 3 left!

0

4

Honda 14431-ZE2-000

SEE PART DETAILS - SUP; ARM, VALVE ROCKER (Honda Code 2025591).
(Superseded to 14431-ZE2-010)

$9.49

$

In Stock, Qty 20+

0

4

Honda 14431-ZE2-010

SEE PART DETAILS - PRI; ARM, VALVE ROCKER (Honda Code 6206254).

$9.49

$

In Stock, Qty 20+

0

5

Honda 14441-ZE2-000

LIFTER, VALVE (Honda Code 2025609).

$16.99

$

In Stock, only 2 left!

0

6

Honda 14451-ZE1-003

SEE PART DETAILS - SUP; PIVOT, ROCKER ARM (Honda Code 1540764).
(Superseded to 14451-Z4M-000)

$5.99

$

In Stock, Qty 5

0

6

Honda 14451-ZE1-013

SEE PART DETAILS - PRI; PIVOT, ROCKER ARM (Honda Code 4300901).
(Superseded to 14451-Z4M-000)

$5.99

$

In Stock, Qty 5

0

7

Honda 14568-ZE1-000

SPRING, WEIGHT RETURN (Honda Code 1426907).

$3.49

$

In Stock, only 2 left!

0

8

Honda 14711-ZE2-W00

SEE PART DETAILS - PRI; VALVE, IN. (Honda Code 6224091).

$27.99

$

Usually ships in 3-6 days

0

8

Honda 14711-ZE8-900

SEE PART DETAILS - SUP; VALVE, IN. (Honda Code 2324028).

$

$

Currently unavailable

9

Honda 14721-ZE8-900

VALVE, EX. (STELITE) (Honda Code 2324036).

$

$

Currently unavailable

10

Honda 14751-ZE2-003

SPRING, VALVE (Honda Code 2025633).

$5.49

$

In Stock, only 2 left!

0

11

Honda 14771-ZE2-000

RETAINER, IN. VALVE SPRING (Honda Code 2025641).
(Superseded to 14771-Z8S-000)

$2.49

$

In Stock, Qty 12

0

12

Honda 14771-ZE2-000

RETAINER, IN. VALVE SPRING (Honda Code 2025641).
(Superseded to 14771-Z8S-000)

$2.49

$

In Stock, Qty 12

0

13

Honda 14775-ZE2-010

SEAT, VALVE SPRING (Honda Code 2157485).

$3.99

$

In Stock, only 2 left!

0

15

Honda 14791-ZE8-000

SEE PART DETAILS - SUP; GUIDE, PUSH ROD (Honda Code 2089878).
(Superseded to 14791-ZE8-010)

Note: Use up to Engine SN 1055461.

$

$

Not available

15

Honda 14791-ZE8-010

SEE PART DETAILS - PRI; GUIDE, PUSH ROD (Honda Code 2648913).

$

$

Not available

16

Honda 90012-ZE0-010

BOLT, PIVOT (8MM) (Honda Code 1756964).

$8.49

$

In Stock, only 2 left!

0

17

Honda 90206-ZE1-000

NUT, PIVOT ADJ. (Honda Code 1431287).

$4.49

$

In Stock, Qty 6

0
