GXV270 DAE2 (GJ01) - Honda Engine, Made in Japan (SN: GJ01-1000001 - GJ01-1034654) MUFFLER Parts Diagram

Engine, Made in Japan

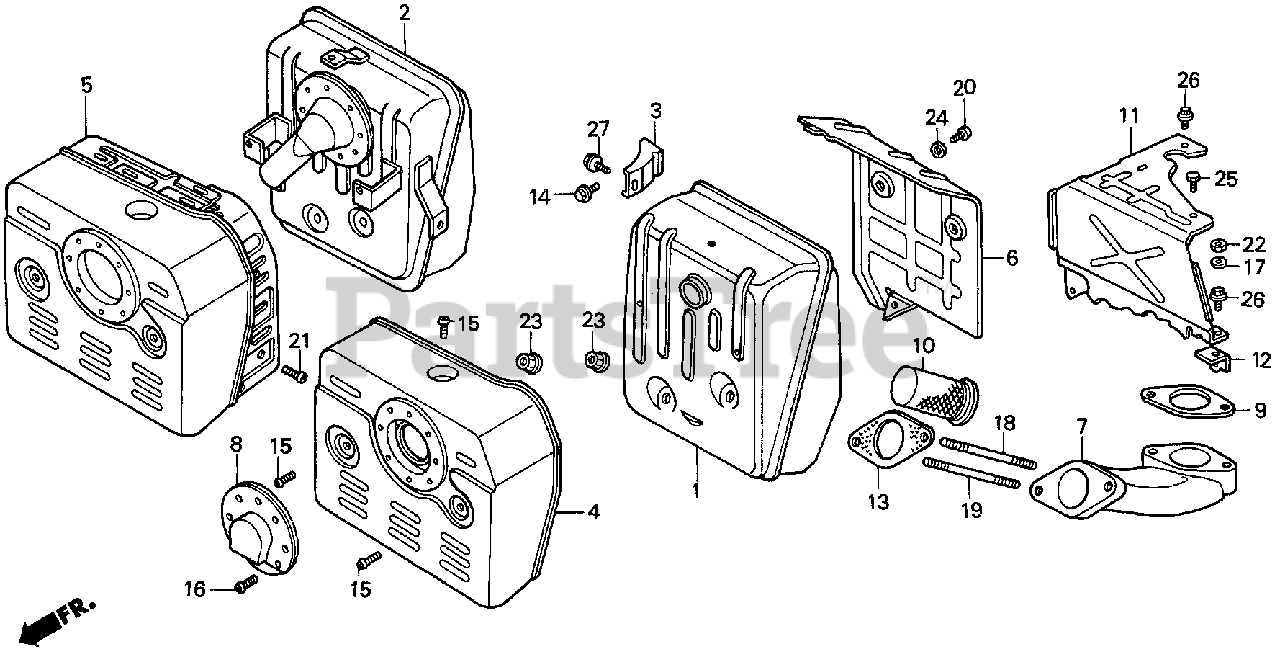

MUFFLER Parts Diagram

  • Title

1

Honda 18310-ZE8-003

MUFFLER (Honda Code 2106276).

$

$

Not available

3

Honda 18318-ZE8-000

STAY, MUFFLER (Honda Code 2106284).

$11.99

$

Usually ships in 3-6 days

0

4

Honda 18320-ZE8-000

PROTECTOR, MUFFLER (Honda Code 2106292). (NOT AVAILABLE)

$

$

Not available

6

Honda 18325-ZE8-000

SEPARATOR, MUFFLER (Honda Code 2106300).

$21.99

$

Usually ships in 3-6 days

0

7

Honda 18330-ZE8-000

PIPE, EX. (Honda Code 2106318).

$

$

Currently unavailable

8

Honda 18331-ZE2-810

CAP, MUFFLER (Honda Code 2026227).

$11.99

$

In Stock, only 2 left!

0

9

Honda 18333-ZE3-800

SEE PART DETAILS - SUP; GASKET, EX. PIPE (Honda Code 3520194).
(Superseded to 18333-ZK6-Y00)

$5.49

$

In Stock, Qty 20+

0

9

Honda 18333-ZK6-Y00

SEE PART DETAILS - PRI; GASKET, EX. PIPE (WACKER) (Honda Code 5164199).

$5.49

$

In Stock, Qty 20+

0

10

Honda 18335-ZE8-000

ARRESTER, SPARK (Honda Code 2106326).

$15.99

$

Usually ships in 3-6 days

0

11

Honda 18345-ZE8-000

COVER (LOWER) (Honda Code 2324119).

$

$

Not available

12

Honda 18347-ZE8-000

STAY, COVER (LOWER) (Honda Code 2278729).

$6.99

$

Usually ships in 3-6 days

0

13

Honda 18333-ZB4-800

SEE PART DETAILS - PRI; GASKET, EX. PIPE (Honda Code 3755220).

$

$

Not available

14

Honda 90031-883-000

BOLT, FLANGE (8X16) (Honda Code 0674473).

$5.99

$

In Stock, only 1 left!

0

15

Honda 90050-ZE1-000

SCREW, TAPPING (5X8) (Honda Code 1431105).

$2.49

$

In Stock, Qty 20+

0

16

Honda 90055-ZE1-000

SCREW, TAPPING (4X6) (Honda Code 1431121).

$1.49

$

In Stock, Qty 20+

0

17

Honda 90899-ZE8-000

RUBBER (LOWER) (Honda Code 2410629).

$

$

Not available

18

Honda 92900-08060-1B

BOLT, STUD (8X60) (Honda Code 1869692).

$3.99

$

In Stock, only 1 left!

0

19

Honda 92900-08070-1B

BOLT, STUD (8X70) (Honda Code 2106680).

$3.99

$

In Stock, only 1 left!

0

20

Honda 93500-06006-0A

SCREW, PAN (6X6) (Honda Code 1808013).

$1.49

$

Usually ships in 3-6 days

0

22

Honda 94002-06200

NUT, HEX. (6MM) (Honda Code 1317015).

$

$

Currently unavailable

22

Honda 94002-06200-0S

NUT, HEX. (6MM) (Honda Code 1314467).

$

$

Not available

23

Honda 94050-08000

SEE PART DETAILS - PRI; NUT, FLANGE (8MM) (Honda Code 0481143).

$1.49

$

In Stock, Qty 20+

0

24

Honda 94101-06800

WASHER, PLAIN (6MM) (Honda Code 0345900).

$0.99

$

In Stock, Qty 20+

0

25

Honda 95701-06010-00

BOLT, FLANGE (6X10) (Honda Code 2410876).

$1.99

$

In Stock, Qty 7

0

26

Honda 95700-06012-00

BOLT, FLANGE (6X12) (Honda Code 0487025).

$

$

Not available

26

Honda 95701-06012-00

BOLT, FLANGE (6X12) (Honda Code 2105799).

$2.49

$

In Stock, Qty 20+

0

27

Honda 95701-08014-00

BOLT, FLANGE (8X14) (Honda Code 2529105).

$2.49

$

In Stock, Qty 20+

0

27

Honda 95800-08014-00

BOLT, FLANGE (8X14) (Honda Code 1085711).

$2.49

$

Usually ships in 3-6 days

0

27

Honda 95801-08014-00

BOLT, FLANGE (8X14) (Honda Code 3039773).

$

$

Currently unavailable
