GXV160 UH2 TBE (GJABH) - Honda Engine, Made in China (SN: GJABH-1000001 - GJABH-2003435) FUEL TANK Parts Diagram

Engine, Made in China

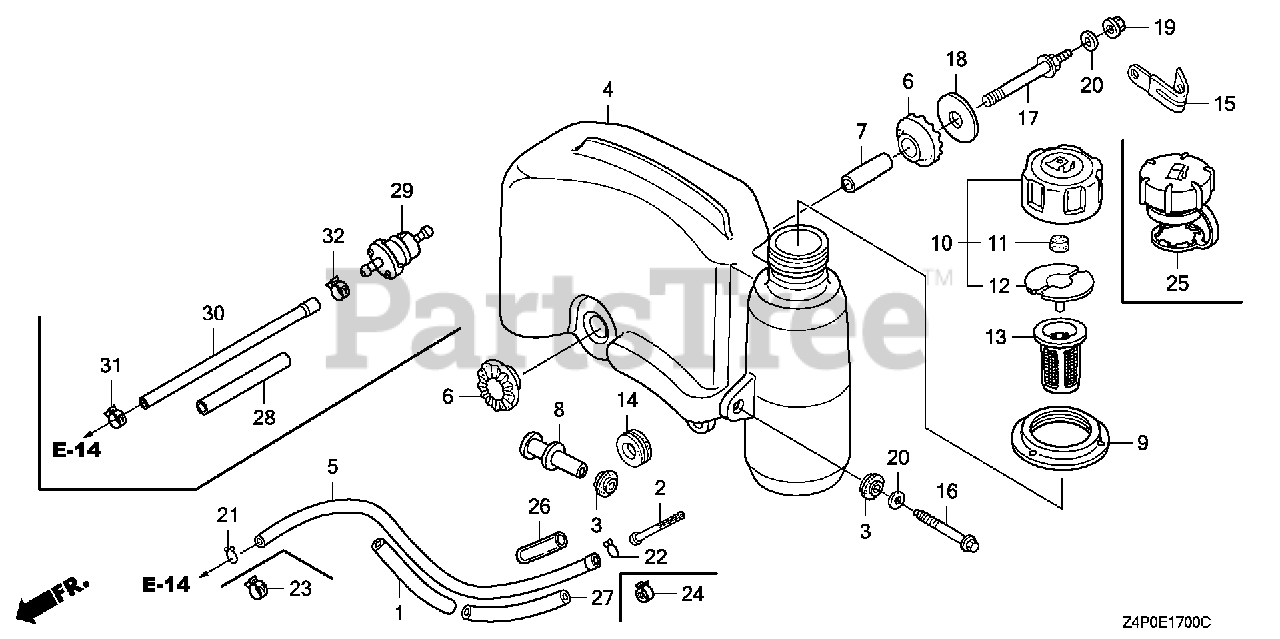

FUEL TANK Parts Diagram

  • Title

20

Honda 94103-06000

WASHER, PLAIN (6MM) (Honda Code 0450122).

$1.49

$

In Stock, Qty 9

0

28

Honda 16854-ZH8-000

SEE PART DETAILS - PRI; RUBBER, SUPPORTER (107MM) (Honda Code 3683646).

$5.49

$

In Stock, Qty 6

0

29

Honda 16910-ZBH-821

STRAINER, FUEL

Note: Use from Engine SN 1275953 to 1281785.

$15.99

$

Usually ships in 3-6 days

0

29

Honda 16910-ZE8-015

SEE PART DETAILS - PRI; FILTER, FUEL (Honda Code 4287553).

Note: Use up to Engine SN 1275952.

$15.99

$

In Stock, Qty 5

0

29

Honda 16910-ZE8-015

SEE PART DETAILS - PRI; FILTER, FUEL (Honda Code 4287553).

Note: Use from Engine SN 1281786.

$15.99

$

In Stock, Qty 5

0

30

Honda 17512-Z4P-801

TUBE, FUEL (FKM)

Note: Use up to Engine SN 1275952.

$25.99

$

Usually ships in 3-6 days

0

30

Honda 91424-ZBC-801

TUBE, FUEL (4.2X210) (FKM)
(Superseded to 91424-ZBC-802)

Note: Use from Engine SN 1275953.

$11.99

$

Usually ships in 3-6 days

0

31

Honda 95002-40800-08

SEE PART DETAILS - PRI; CLIP, TUBE (D8) (Honda Code 0660811).

$3.49

$

In Stock, Qty 20+

0

32

Honda 95002-40800-08

SEE PART DETAILS - PRI; CLIP, TUBE (D8) (Honda Code 0660811).

Note: Use from Engine SN 1275953.

$3.49

$

In Stock, Qty 20+

0

32

Honda 95002-40850-08

CLIP, TUBE (D8.5) (Honda Code 0665240).

Note: Use up to Engine SN 1275952.

$3.49

$

In Stock, Qty 7

0
