GXV160 UH2 T1AT (GJABH) - Honda Engine, Made in China (SN: GJABH-1000001 - GJABH-2003435) FAN COVER (2) Parts Diagram

Engine, Made in China

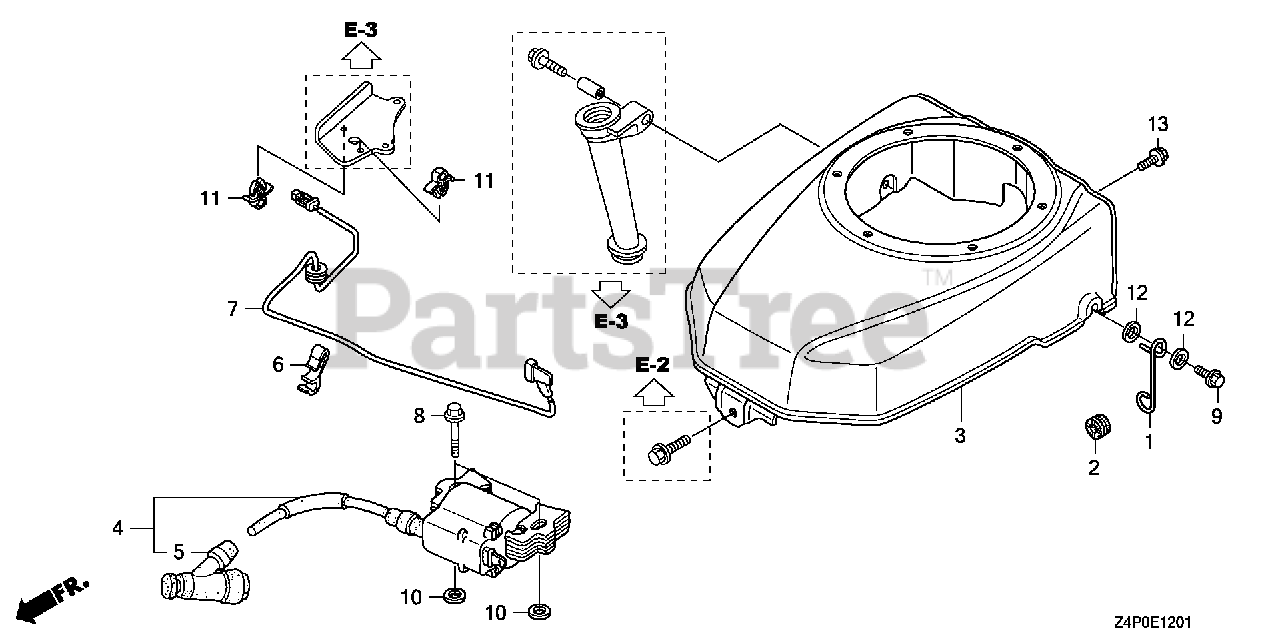

FAN COVER (2) Parts Diagram

  • Title

1

Honda 17224-Z4P-800

STAY, FUEL TUBE

$3.99

$

Usually ships in 3-6 days

0

2

Honda 19051-KA3-830

RUBBER, RADIATOR MOUNTING

$4.99

$

Usually ships in 3-6 days

0

3

Honda 19610-Z4P-800ZA

COVER, FAN *NH1* (BLACK)

$153.99

$

Usually ships in 3-6 days

0

3

Honda 19610-Z4P-800ZB

COVER, FAN *R280* (POWER RED)

$143.99

$

Usually ships in 3-6 days

0

4

Honda 30500-Z1V-013

COIL ASSY., IGNITION
(Superseded to 30100-Z1V-601)

$95.99

$

In Stock, only 2 left!

0

5

Honda 30700-Z1V-003

CAP ASSY., NOISE SUPPRESSOR
(Superseded to 30700-Z1V-601)

$24.99

$

In Stock, only 4 left!

0

6

Honda 32763-PA0-000

CLAMP, WIRE

$13.99

$

Usually ships in 3-6 days

0

7

Honda 36101-Z4P-800

WIRE, STOP SWITCH

$7.99

$

Usually ships in 3-6 days

0

8

Honda 90015-883-000

BOLT, FLANGE (6X28) (CT200)

$3.99

$

In Stock, Qty 8

0

9

Honda 90029-888-000

BOLT, FLANGE (6X16) (CT200)

$2.99

$

Usually ships in 3-6 days

0

10

Honda 90581-Z1V-000

WASHER, PLAIN (6MM)

$3.49

$

Usually ships in 3-6 days

0

11

Honda 90681-959-003

CLIP A, CABLE (3.8MM BLACK) (NIFCO)

$3.99

$

Usually ships in 3-6 days

0

12

Honda 94103-06000

WASHER, PLAIN (6MM)

$1.49

$

In Stock, Qty 20+

0

13

Honda 95701-06012-00

BOLT, FLANGE (6X12)

$2.49

$

In Stock, Qty 20+

0
