GXV160 UH2 N1F2 (GJABH) - Honda Engine, Made in China (SN: GJABH-1000001 - GJABH-9999999) CAMSHAFT Parts Diagram

Engine, Made in China

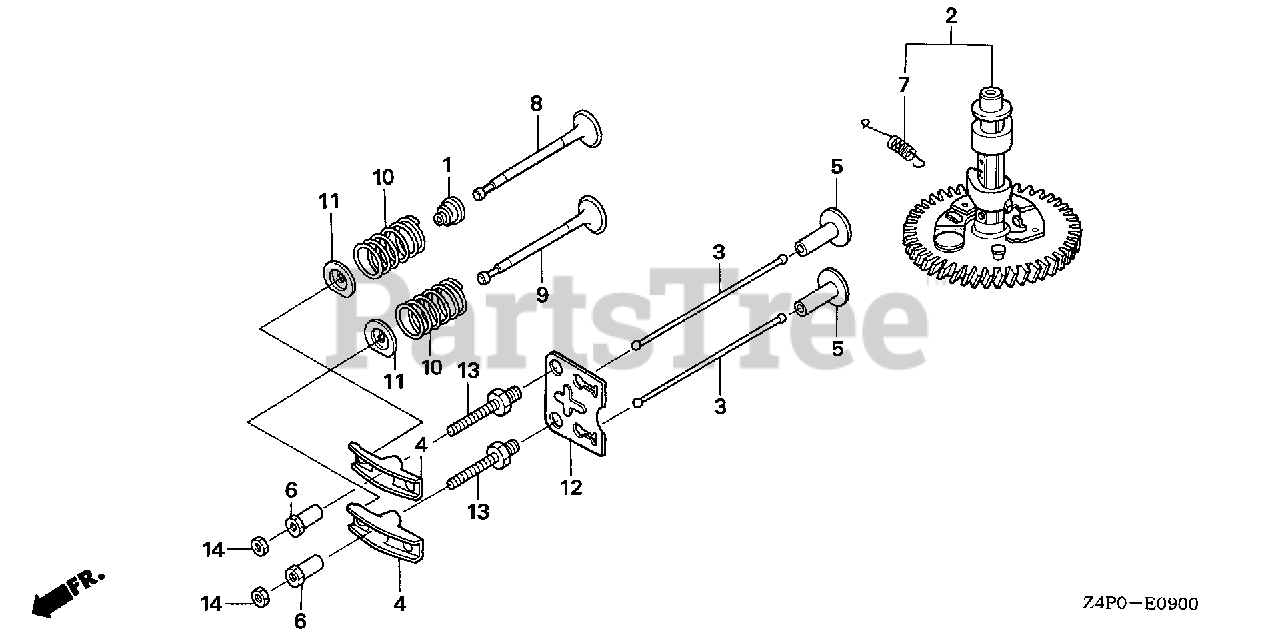

CAMSHAFT Parts Diagram

  • Title

1

Honda 12209-ZE6-003

SEAL, VALVE STEM

$4.99

$

Usually ships in 3-6 days

0

2

Honda 14100-ZE7-000

CAMSHAFT ASSY.

$125.99

$

Usually ships in 3-6 days

0

3

Honda 14410-ZE1-010

ROD, PUSH

$8.99

$

In Stock, only 2 left!

0

4

Honda 14431-ZE1-000

ARM, VALVE ROCKER

$8.49

$

In Stock, only 2 left!

0

4

Honda 14431-Z1T-000

ARM, VALVE ROCKER

Note: Use from Engine SN 1345333.

$6.99

$

Usually ships in 3-6 days

0

5

Honda 14441-ZE1-010

LIFTER, VALVE

$14.99

$

Usually ships in 3-6 days

0

6

Honda 14451-ZE1-013

SEE PART DETAILS - SUP; PIVOT, ROCKER ARM
(Superseded to 14451-Z4M-000)

$6.49

$

In Stock, Qty 5

0

6

Honda 14451-Z4M-000

SEE PART DETAILS - PRI; PIVOT, ROCKER ARM

$6.49

$

In Stock, Qty 5

0

7

Honda 14568-ZE1-000

SPRING, WEIGHT RETURN

$3.49

$

In Stock, only 1 left!

0

8

Honda 14711-ZF1-000

SEE PART DETAILS - PRI; VALVE, IN.

$21.99

$

In Stock, only 2 left!

0

9

Honda 14721-ZE7-000

VALVE, EX.

$36.99

$

In Stock, only 1 left!

0

10

Honda 14751-ZE1-000

SPRING, VALVE

$3.99

$

In Stock, only 3 left!

0

11

Honda 14771-ZE1-000

SEE PART DETAILS - SUP; RETAINER, IN. VALVE SPRING
(Superseded to 14771-Z0T-900)

$1.49

$

In Stock, Qty 14

0

11

Honda 14771-Z0T-900

SEE PART DETAILS - PRI; RETAINER, VALVE SPRING

$1.49

$

In Stock, Qty 14

0

12

Honda 14791-ZE1-010

PLATE, PUSH ROD GUIDE

$4.49

$

Usually ships in 3-6 days

0

13

Honda 90012-ZE0-010

BOLT, PIVOT (8MM)

$8.99

$

In Stock, only 2 left!

0

14

Honda 90206-ZE1-000

NUT, PIVOT ADJUSTING

$4.49

$

In Stock, Qty 6

0
