GXV160 UH2 N1AB (GJABH) - Honda Engine, Made in China (SN: GJABH-1000001 - GJABH-2003435) CONTROL (3) Parts Diagram
Engine, Made in China

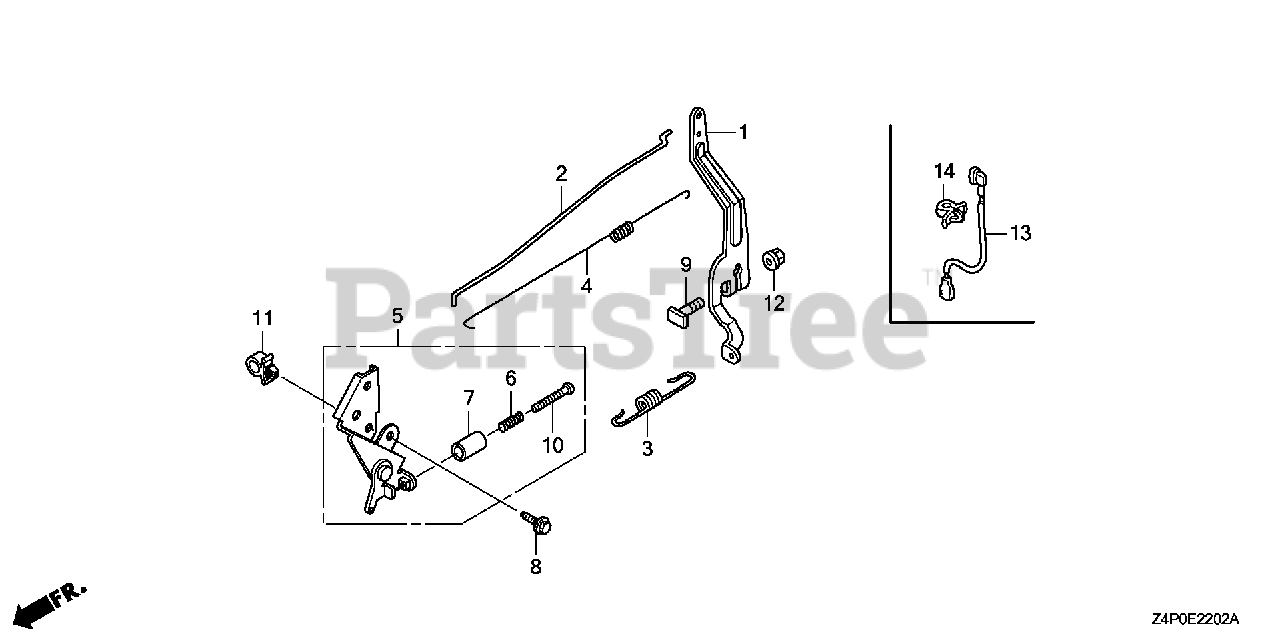

CONTROL (3) Parts Diagram
Honda 16551-ZE7-000
ARM, GOVERNOR
$20.99
$
Usually ships in 3-6 days
Honda 16555-ZE7-000
ROD, GOVERNOR
$5.49
$
Usually ships in 3-6 days
Honda 16561-ZE7-020
SPRING, GOVERNOR
$4.49
$
In Stock, only 2 left!
Honda 16562-ZE6-000
SPRING, THROTTLE RETURN
$5.49
$
Usually ships in 3-6 days
Honda 16570-Z4P-800
CONTROL
$46.99
$
Usually ships in 3-6 days
Honda 16584-883-300
SPRING, CONTROL ADJUSTING
$5.49
$
In Stock, Qty 6
Honda 16599-ZG1-M10
COLLAR, STOPPER
$3.99
$
Usually ships in 3-6 days
Honda 90013-883-000
BOLT, FLANGE (6X12) (CT200)
$2.49
$
In Stock, Qty 17
Honda 90015-ZE5-010
BOLT, GOVERNOR ARM
$3.49
$
In Stock, only 3 left!
Honda 90016-ZG1-M10
SCREW, RECESSED (5X35)
$2.99
$
Usually ships in 3-6 days
Honda 90659-Z1V-003
CLIP, HARNESS
$2.99
$
Usually ships in 3-6 days
Honda 94050-06000
SEE PART DETAILS - PRI; NUT, FLANGE (6MM)
$0.99
$
In Stock, Qty 20+
