GXV160 N62 (GJ03) - Honda Engine, Made in Japan (SN: GJ03-1000001 - GJ03-1366578) FUEL TANK Parts Diagram

Engine, Made in Japan

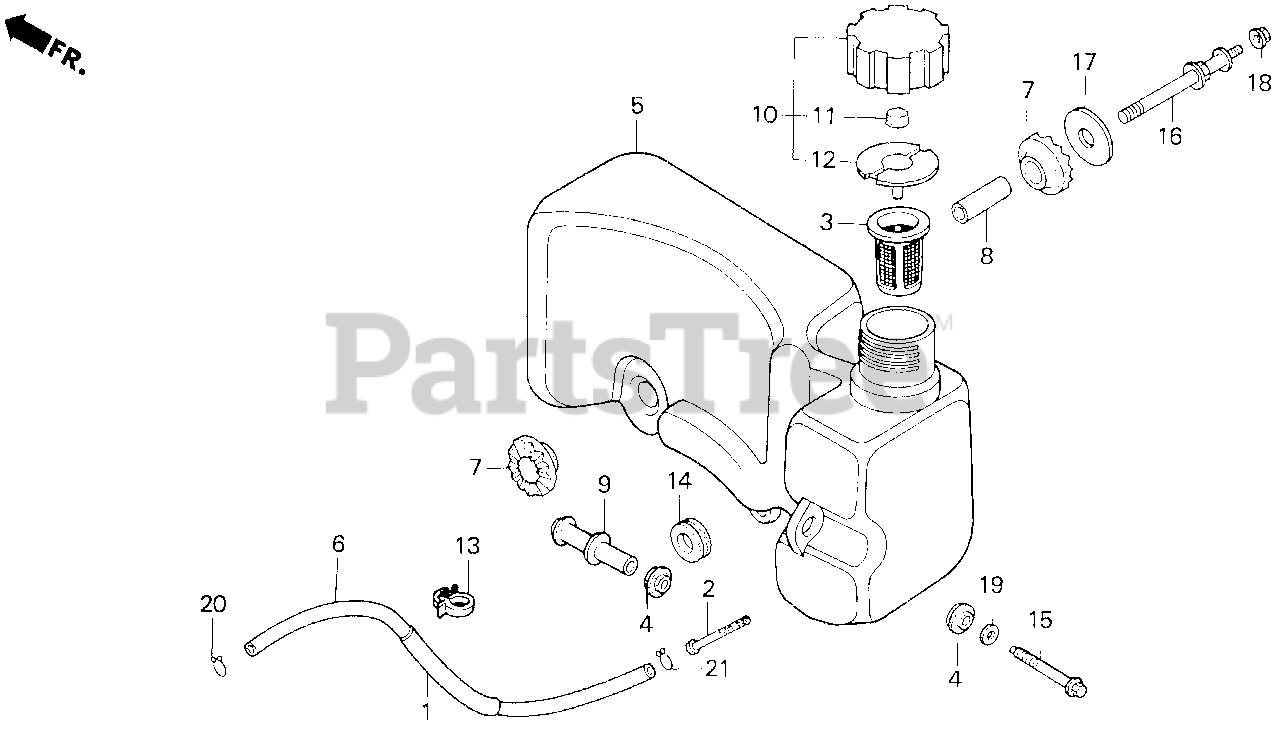

FUEL TANK Parts Diagram

  • Title

1

Honda 16854-ZH8-000

SEE PART DETAILS - PRI; RUBBER, SUPPORTER (107MM)

Note: (Honda Code 3683646).

$4.99

$

In Stock, Qty 14

0

2

Honda 16952-ZA8-800

FILTER, FUEL

Note: (Honda Code 2084903).

$8.99

$

In Stock, Qty 20+

0

4

Honda 17506-ZE7-000

RUBBER, TANK SETTING

Note: (Honda Code 2289775).

$4.49

$

In Stock, Qty 12

0

5

Honda 17510-ZE7-020

SEE PART DETAILS - PRI; TANK, FUEL

Note: (Honda Code 2608529).

$

$

Not available

6

Honda 17512-ZE7-000

TUBE, FUEL
(Superseded to 17512-ZE7-010)

Note: (Honda Code 2289791).

$13.99

$

Usually ships in 3-6 days

0

7

Honda 17516-896-700

RUBBER B, TANK MOUNTING

Note: (Honda Code 0933416).

$8.99

$

In Stock, Qty 12

0

8

Honda 17518-ZE7-000

COLLAR, TANK SETTING

Note: (Honda Code 2289817).

$

$

Not available

9

Honda 17519-ZE7-000

COLLAR, TANK

Note: (Honda Code 2289825).

$

$

Not available

10

Honda 17620-ZE7-000

SEE PART DETAILS - PRI; CAP ASSY., FUEL TANK
(Superseded to 17620-ZG9-000)

Note: (Honda Code 2289833).

$12.99

$

In Stock, only 1 left!

0

11

Honda 17622-888-010

SEE PART DETAILS - PRI; SPONGE, FUEL CAP BREATHER

Note: (Honda Code 0810341).

$2.49

$

In Stock, only 4 left!

0

12

Honda 17624-ZE7-000

GASKET, FUEL CAP

Note: (Honda Code 2507689).

$4.99

$

Usually ships in 3-6 days

0

14

Honda 80103-MG2-000

RUBBER, RR. FENDER

Note: (Honda Code 1490408).

$4.49

$

In Stock, only 2 left!

0

15

Honda 90014-888-000

BOLT, FLANGE (6X50)

Note: (Honda Code 0671537).

$5.49

$

Usually ships in 3-6 days

0

16

Honda 90016-ZE7-000

BOLT, TANK STAY

Note: (Honda Code 2291128).

$13.99

$

Usually ships in 3-6 days

0

17

Honda 90455-896-700

WASHER, TANK MOUNTING

Note: (Honda Code 0933325).

$3.99

$

In Stock, only 2 left!

0

18

Honda 94050-06000

SEE PART DETAILS - PRI; NUT, FLANGE (6MM)

Note: (Honda Code 0471623).

$0.99

$

In Stock, Qty 20+

0

19

Honda 94103-06000

WASHER, PLAIN (6MM)

Note: (Honda Code 0450122).

$1.49

$

In Stock, Qty 19

0

20

Honda 95002-02080

CLIP, TUBE (B8)

Note: (Honda Code 0250647).

$2.49

$

In Stock, Qty 20+

0

21

Honda 95002-70000

CLIP, TUBE (C11)

Note: (Honda Code 0053595).

$2.49

$

In Stock, Qty 5

0
