GXV160 N42 (GJ03) - Honda Engine, Made in Japan (SN: GJ03-1000001 - GJ03-1366578) GOVERNOR ARM + CONTROL Parts Diagram

Engine, Made in Japan

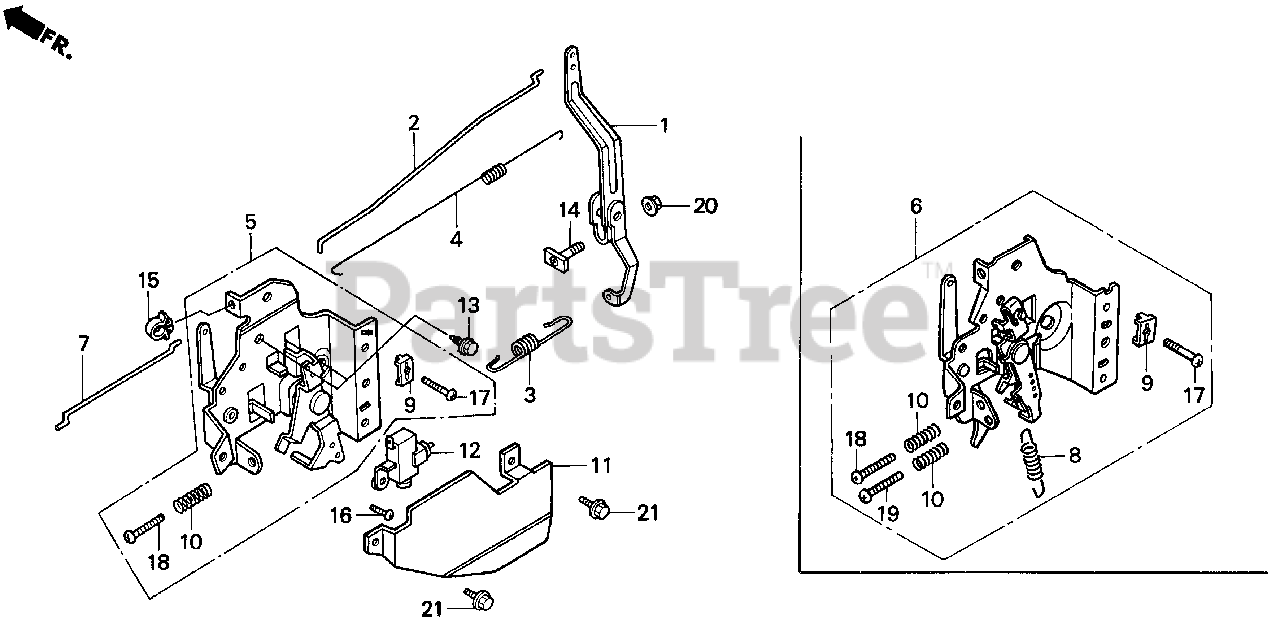

GOVERNOR ARM + CONTROL Parts Diagram

  • Title

1

Honda 16551-ZE7-000

ARM, GOVERNOR

Note: (Honda Code 2289650).

$19.99

$

Usually ships in 3-6 days

0

2

Honda 16555-ZE7-000

ROD, GOVERNOR

Note: (Honda Code 2289668).

$5.49

$

Usually ships in 3-6 days

0

3

Honda 16561-ZE7-020

SEE PART DETAILS - PRI; SPRING, GOVERNOR (STD)

Note: (Honda Code 4186268).

$4.49

$

In Stock, only 2 left!

0

4

Honda 16562-ZE6-000

SPRING, THROTTLE RETURN

Note: (Honda Code 1452911).

$4.99

$

Usually ships in 3-6 days

0

6

Honda 16570-ZE7-020

CONTROL ASSY.

Note: (Honda Code 4507968).

$50.99

$

In Stock, only 3 left!

0

7

Honda 16573-ZE7-000

ROD, CHOKE

Note: (Honda Code 2289700).

$2.99

$

Usually ships in 3-6 days

0

8

Honda 16576-ZE7-300

SPRING, LEVER

Note: (Honda Code 4439428).

$4.99

$

In Stock, Qty 10

0

9

Honda 16576-891-000

HOLDER, CABLE

Note: (Honda Code 0800466).

$4.99

$

Usually ships in 3-6 days

0

10

Honda 16584-883-300

SPRING, CONTROL ADJUSTING

Note: (Honda Code 0636431).

$4.99

$

In Stock, Qty 7

0

11

Honda 16585-ZE7-000

PROTECTOR, CONTROL

Note: (Honda Code 2289718).

$15.99

$

Usually ships in 3-6 days

0

12

Honda 36100-ZE7-003

SEE PART DETAILS - SUP; SWITCH ASSY., ENGINE STOP
(Superseded to 36100-ZE7-013)

Note: (Honda Code 2290542).

$20.99

$

In Stock, only 1 left!

0

12

Honda 36100-ZE7-013

SEE PART DETAILS - PRI; SWITCH ASSY., ENGINE STOP

Note: (Honda Code 7120959).

$20.99

$

In Stock, only 1 left!

0

13

Honda 90013-883-000

SEE PART DETAILS - PRI; BOLT, FLANGE (6X12) (CT200)

Note: (Honda Code 0636845).

$1.99

$

In Stock, Qty 20+

0

14

Honda 90015-ZE5-010

SEE PART DETAILS - PRI; BOLT, GOVERNOR ARM

Note: (Honda Code 2418671).

$3.49

$

In Stock, only 3 left!

0

15

Honda 90659-680-013

CLIP, WIRE HARNESS

Note: (Honda Code 1965425).

$8.49

$

Usually ships in 3-6 days

0

16

Honda 93500-04008-0A

SEE PART DETAILS - PRI; SCREW, PAN (4X8)

Note: (Honda Code 0156463).

$1.49

$

In Stock, only 4 left!

0

17

Honda 93500-05016-0A

SEE PART DETAILS - PRI; SCREW, PAN (5X16)

Note: (Honda Code 0145557).

$1.49

$

In Stock, Qty 7

0

18

Honda 93500-05020-0A

SEE PART DETAILS - PRI; SCREW, PAN (5X20)

Note: (Honda Code 0197731).

$1.49

$

Usually ships in 3-6 days

0

19

Honda 93500-05028-0A

SCREW, PAN (5X28)

Note: (Honda Code 0171819).

$1.49

$

In Stock, Qty 5

0

20

Honda 94050-06000

SEE PART DETAILS - PRI; NUT, FLANGE (6MM)

Note: (Honda Code 0471623).

$0.99

$

In Stock, Qty 20+

0

21

Honda 95701-06010-00

SEE PART DETAILS - PRI; BOLT, FLANGE (6X10)

Note: (Honda Code 2410876).

$1.99

$

In Stock, Qty 13

0
