GXV160 N1E2 (GJ03) - Honda Engine, Made in Japan (SN: GJ03-1000001 - GJ03-1366578) STARTER MOTOR Parts Diagram

Engine, Made in Japan

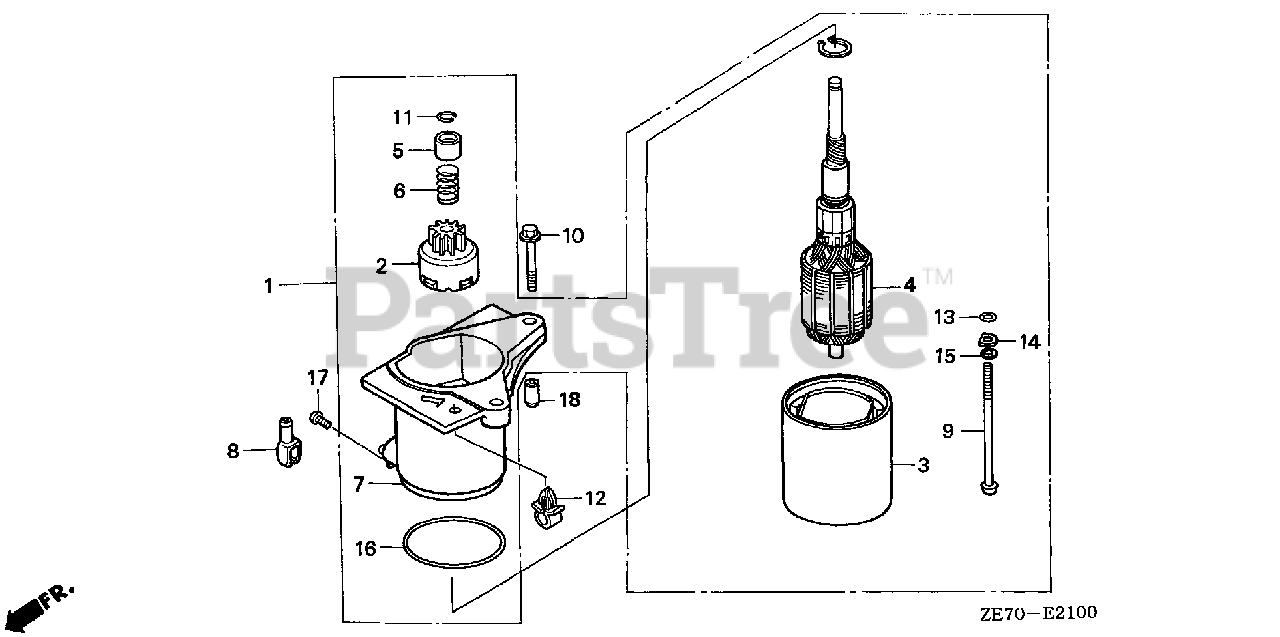

STARTER MOTOR Parts Diagram

  • Title
1

Honda 31210-ZE7-023

STARTER MOTOR UNIT

$565.99

$

Usually ships in 3-6 days

0

2

Honda 31214-ZE7-003

GEAR ASSY., PINION

$

$

Not available

3

Honda 31216-ZE1-721

YOKE ASSY.

$53.99

$

Usually ships in 3-6 days

0

4

Honda 31217-ZE7-013

SEE PART DETAILS - PRI; ROTOR ASSY.

$120.99

$

Usually ships in 3-6 days

0

5

Honda 31221-ZE7-003

PIECE, STOPPER

$

$

Not available

6

Honda 31223-ZE7-003

SPRING, RETURN

$

$

Not available

7

Honda 31235-ZE7-013

BRACKET, FR.

$

$

Not available

8

Honda 32411-ZE7-003

COVER, TERMINAL

$

$

Not available

9

Honda 90012-ZE6-003

BOLT, SETTING

$2.99

$

Usually ships in 3-6 days

0

10

Honda 90017-883-000

BOLT, FLANGE (6X32)

$3.49

$

In Stock, only 2 left!

0

11

Honda 90602-ZE7-003

CIRCLIP, OUTER (8.3MM)

$

$

Not available

$2.49

$

Usually ships in 3-6 days

0

14

Honda 91402-ZE6-003

WASHER, SPECIAL

$2.99

$

Usually ships in 3-6 days

0

15

Honda 91403-ZE6-003

WASHER, SPRING

$2.49

$

Usually ships in 3-6 days

0

$3.49

$

Usually ships in 3-6 days

0

18

Honda 94301-08140

PIN, DOWEL (8X14)

$2.99

$

In Stock, Qty 8

0
