GXV160 K1 N62 (GJ03) - Honda Engine, Made in USA (SN: GJ03-6100001 - GJ03-7999999) RECOIL STARTER (2) Parts Diagram

Engine, Made in USA

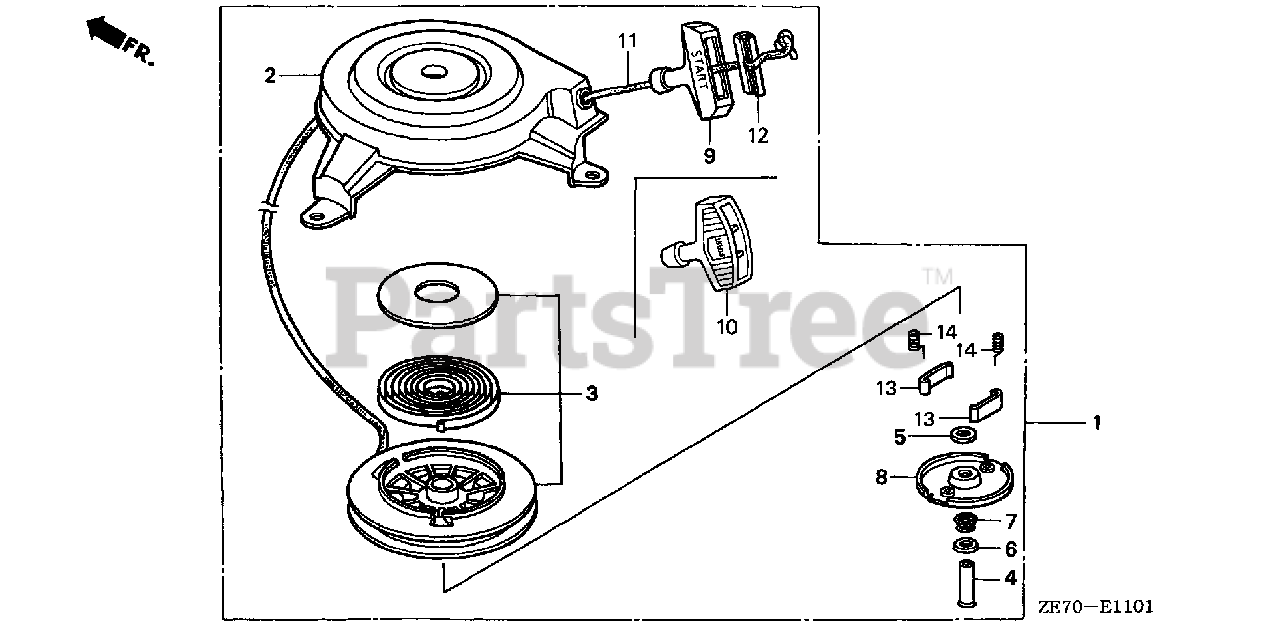

RECOIL STARTER (2) Parts Diagram

  • Title

1

Honda 28400-ZG9-803

SEE PART DETAILS - PRI; STARTER ASSY., RECOIL

Note: (Honda Code 6387351).

$139.99

$

In Stock, only 1 left!

0

2

Honda 28402-ZG9-802

HOUSING ASSY.

Note: (Honda Code 4327417).

$

$

Currently unavailable

3

Honda 28415-ZG9-802

PULLEY & SPRING ASSY.

Note: (Honda Code 4327425).

$20.99

$

Usually ships in 3-6 days

0

4

Honda 28419-ZG9-802

PIN, CENTER

Note: (Honda Code 4327433).

$2.49

$

In Stock, only 2 left!

0

5

Honda 28431-ZG9-802

PLATE A, FRICTION

Note: (Honda Code 4327441).

$5.99

$

Usually ships in 3-6 days

0

6

Honda 28432-ZG9-802

PLATE B, FRICTION

Note: (Honda Code 4327458).

$6.49

$

Usually ships in 3-6 days

0

7

Honda 28441-ZG9-802

SPRING, FRICTION

Note: (Honda Code 4327466).

$

$

Not available

8

Honda 28444-ZG9-802

RETAINER

Note: (Honda Code 4327474).

$2.99

$

In Stock, only 2 left!

0

9

Honda 28461-ZE6-T02

HANDLE

Note: (Honda Code 3979887).

$5.99

$

In Stock, only 4 left!

0

11

Honda 28462-ZG9-802

ROPE, RECOIL STARTER (#4X85")

Note: (Honda Code 4327482).

$11.99

$

Usually ships in 3-6 days

0

12

Honda 28463-ZE6-T02

HANDLE, REINFORCEMENT

Note: (Honda Code 3979879).

$4.99

$

In Stock, only 3 left!

0

13

Honda 28485-ZE6-T02

RATCHET, STARTER

Note: (Honda Code 3979937).

$3.49

$

Usually ships in 3-6 days

0

14

Honda 28486-ZE6-T02

SPRING, DOG

Note: (Honda Code 3979929).

$2.49

$

In Stock, only 2 left!

0
