GXV160 K1 N62 (GJ03) - Honda Engine, Made in USA (SN: GJ03-6100001 - GJ03-7999999) CYLINDER BARREL Parts Diagram

Engine, Made in USA

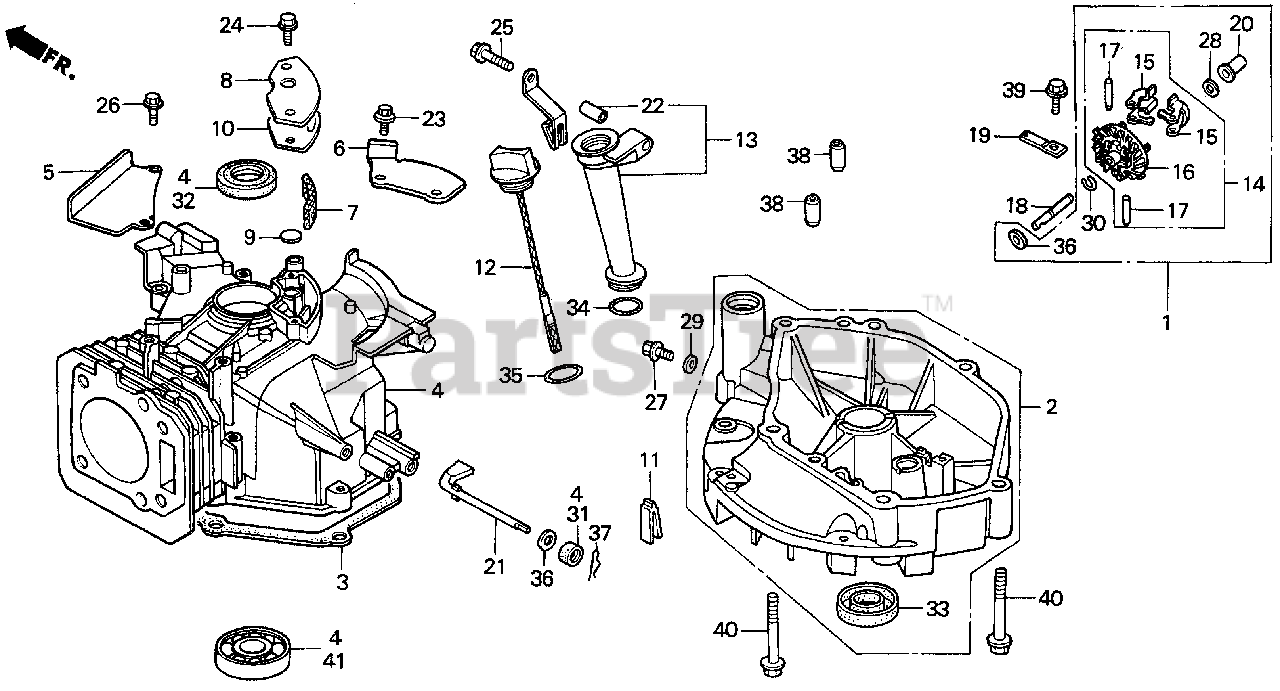

CYLINDER BARREL Parts Diagram

  • Title

1

Honda 06165-ZE6-000

SEE PART DETAILS - SUP; GOVERNOR KIT

Note: (Optional). (Honda Code 3313640).

$

$

Not available

2

Honda 11300-ZE7-W00

PAN ASSY., OIL (PUSH TYPE)

Note: (Honda Code 4724423).

$237.99

$

Usually ships in 3-6 days

0

3

Honda 11381-ZE7-M10

SEE PART DETAILS - PRI; GASKET, OIL PAN

Note: (Honda Code 4424180).

$15.99

$

In Stock, only 3 left!

0

4

Honda 12000-ZE7-W00

SEE PART DETAILS - SUP; CYLINDER ASSY.

Note: (Honda Code 4713004).

$

$

Currently unavailable

5

Honda 12125-ZE7-000

PLATE, GUIDE

Note: (Honda Code 2289346).

$11.99

$

Usually ships in 3-6 days

0

6

Honda 12126-ZE7-W00

PLATE A, GUIDE

Note: (Honda Code 4724449).

$8.49

$

Usually ships in 3-6 days

0

7

Honda 12367-883-003

SEE PART DETAILS - PRI; FILTER, BREATHER

Note: (Honda Code 1083484).

$3.99

$

Usually ships in 3-6 days

0

8

Honda 12370-ZE7-000

COVER, BREATHER

Note: (Honda Code 2289403).

$11.99

$

Usually ships in 3-6 days

0

9

Honda 12372-ZE7-000

VALVE, BREATHER

Note: (Honda Code 2310266).

$4.99

$

Usually ships in 3-6 days

0

10

Honda 12373-ZE7-000

GASKET, BREATHER COVER

Note: (Honda Code 2289411).

$3.49

$

Usually ships in 3-6 days

0

11

Honda 15335-ZE7-000

RUBBER, OIL RETURN

Note: (Honda Code 2289536).

$4.49

$

Usually ships in 3-6 days

0

12

Honda 15620-ZE6-810

SEE PART DETAILS - PRI; DIPSTICK, OIL

Note: (Honda Code 3337862).

$12.99

$

In Stock, only 1 left!

0

13

Honda 15630-ZE6-810

EXTENSION, OIL FILLER (106MM)

Note: (Honda Code 3337870).

$56.99

$

In Stock, only 1 left!

0

14

Honda 16510-ZE6-000

GOVERNOR ASSY.

Note: (Honda Code 3337904).

$25.99

$

In Stock, only 1 left!

0

15

Honda 16511-ZE1-000

WEIGHT, GOVERNOR

Note: (Honda Code 1427228).

$4.49

$

Usually ships in 3-6 days

0

16

Honda 16512-ZE6-000

HOLDER, GOVERNOR WEIGHT

Note: (Honda Code 1452846).

$15.99

$

Usually ships in 3-6 days

0

17

Honda 16513-ZE1-000

PIN, GOVERNOR WEIGHT

Note: (Honda Code 1427244).

$2.49

$

Usually ships in 3-6 days

0

18

Honda 16515-ZE6-000

SEE PART DETAILS - SUP; SHAFT, GOVERNOR HOLDER
(Superseded to 16515-ZE6-010)

Note: (Honda Code 1452853).

$7.49

$

Usually ships in 3-6 days

0

19

Honda 16525-ZE6-010

SEE PART DETAILS - PRI; PLATE, GOVERNOR SHAFT HOLDER

Note: (Honda Code 3337912).

$7.49

$

Usually ships in 3-6 days

0

20

Honda 16531-ZE1-000

SLIDER, GOVERNOR

Note: (Honda Code 1427251).

$3.49

$

In Stock, Qty 8

0

21

Honda 16541-ZE7-000

SHAFT, GOVERNOR ARM

Note: (Honda Code 2289643).

$15.99

$

Usually ships in 3-6 days

0

22

Honda 17240-ZE6-000

COLLAR, EXTENSION

Note: (Honda Code 1453000).

$4.99

$

In Stock, only 1 left!

0

23

Honda 90013-883-000

SEE PART DETAILS - PRI; BOLT, FLANGE (6X12) (CT200)

Note: (Honda Code 0636845).

$2.49

$

In Stock, Qty 17

0

24

Honda 90014-952-000

BOLT, FLANGE (6X14)

Note: (Honda Code 0803619).

$3.49

$

In Stock, only 3 left!

0

25

Honda 90017-883-000

SEE PART DETAILS - PRI; BOLT, FLANGE (6X32)

Note: (Honda Code 0636076).

$3.49

$

In Stock, only 2 left!

0

26

Honda 90022-888-010

BOLT, FLANGE (6X20) (CT200)

Note: (Honda Code 0671552).

$2.99

$

In Stock, only 2 left!

0

27

Honda 90131-ZE1-000

BOLT, DRAIN PLUG

Note: (Honda Code 1431246).

$3.49

$

In Stock, only 2 left!

0

28

Honda 90451-ZE1-000

SEE PART DETAILS - PRI; WASHER, THRUST (6MM)

Note: (Honda Code 2413862).

$2.49

$

In Stock, only 2 left!

0

28

Honda 90451-898-000

SEE PART DETAILS - SUP; WASHER, THRUST (6MM)

Note: (Honda Code 1106764).

$

$

Currently unavailable

29

Honda 90601-ZE1-000

WASHER, DRAIN PLUG (10.2MM)

Note: (Honda Code 1436583).

$1.49

$

In Stock, Qty 20+

0

30

Honda 90602-ZE1-000

SEE PART DETAILS - PRI; CLIP, GOVERNOR HOLDER

Note: (Honda Code 2456697).

$1.99

$

In Stock, only 3 left!

0

31

Honda 91231-891-003

OIL SEAL (6X11X4)

Note: (Honda Code 0801043).

$3.49

$

In Stock, only 1 left!

0

32

Honda 91201-ZG9-U71

SEE PART DETAILS - PRI; OIL SEAL (25X38X7)

Note: (Honda Code 5230073).

$4.99

$

In Stock, Qty 7

0

32

Honda 91252-888-003

SEE PART DETAILS - SUP; OIL SEAL (25X38X7) (ARAI)
(Superseded to 91201-ZG9-U71)

Note: (Honda Code 0671628).

$4.99

$

In Stock, Qty 7

0

33

Honda 91252-894-004

SEE PART DETAILS - PRI; OIL SEAL (25.4X40X7)

Note: (Honda Code 0821140).

$13.99

$

In Stock, only 1 left!

0

34

Honda 91301-ZE9-003

O-RING (22.5X2.2)

Note: (Honda Code 2280006).

$2.49

$

In Stock, Qty 12

0

35

Honda 91301-805-000

SEE PART DETAILS - PRI; O-RING (26X2.7)

Note: (Honda Code 0065185).

$5.49

$

In Stock, Qty 10

0

36

Honda 94101-06800

SEE PART DETAILS - PRI; WASHER, PLAIN (6MM)

Note: (Honda Code 0345900).

$0.99

$

In Stock, Qty 20+

0

37

Honda 94251-08000

SEE PART DETAILS - PRI; PIN, LOCK (8MM)

Note: (Honda Code 0115527).

$1.99

$

In Stock, Qty 9

0

38

Honda 94301-08140

SEE PART DETAILS - PRI; PIN A, DOWEL (8X14)

Note: (Honda Code 0069310).

$2.99

$

In Stock, Qty 8

0

39

Honda 95701-06012-08

SEE PART DETAILS - PRI; BOLT, FLANGE (6X12)

Note: (Honda Code 2170793).

$2.49

$

In Stock, only 1 left!

0

40

Honda 95701-08050-00

SEE PART DETAILS - PRI; BOLT, FLANGE (8X50)

Note: (Honda Code 2935740).

$3.49

$

In Stock, Qty 5

0

41

Honda 96100-62050-00

SEE PART DETAILS - PRI; BEARING, RADIAL BALL (6205)

Note: (Honda Code 0636977).

$25.99

$

In Stock, only 1 left!

0
