GXV160 K1 N62 (GJ03) - Honda Engine, Made in USA (SN: GJ03-6100001 - GJ03-7999999) CRANKSHAFT + PISTON Parts Diagram

Engine, Made in USA

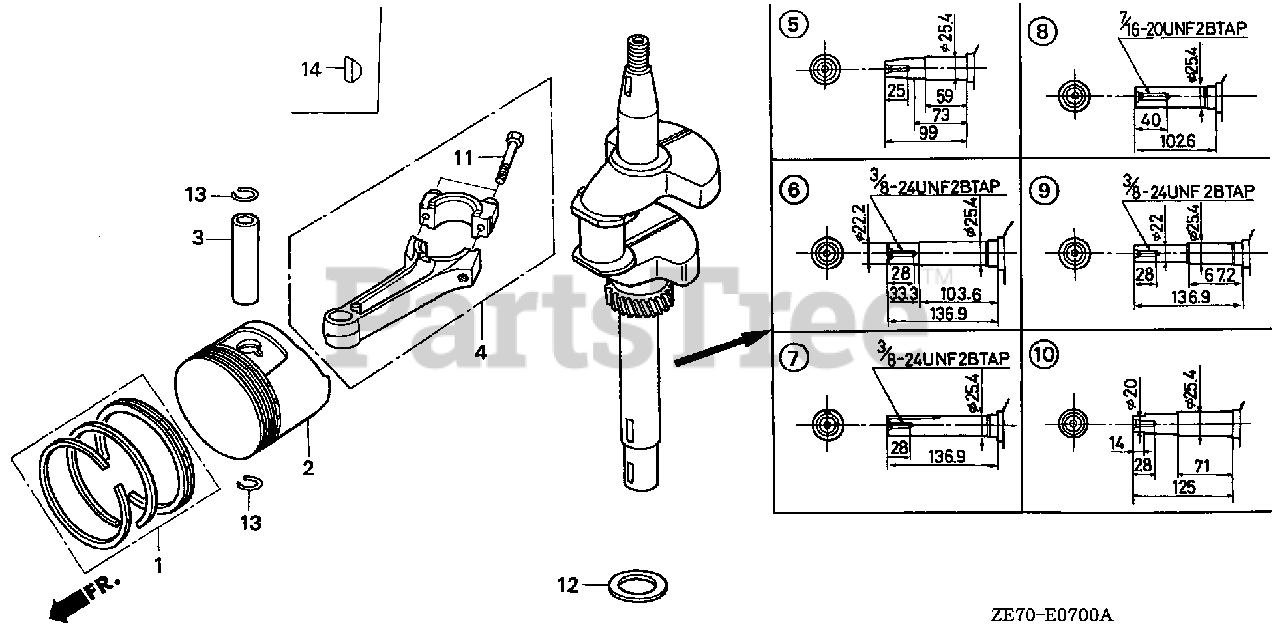

CRANKSHAFT + PISTON Parts Diagram

  • Title
1

Honda 13010-ZF1-023

SEE PART DETAILS - PRI; RING SET, PISTON (STD)

Note: (Honda Code 3011285).

$35.99

$

In Stock, only 1 left!

0

1

Honda 13011-ZF1-023

SEE PART DETAILS - PRI; RING SET, PISTON (OS 0.25)

Note: (Optional). (Honda Code 3018025).

$50.99

$

Usually ships in 3-6 days

0

1

Honda 13012-ZF1-023

SEE PART DETAILS - PRI; RING SET, PISTON (OS 0.50)

Note: (Optional). (Honda Code 3018033).

$

$

Not available

1

Honda 13013-ZF1-023

SEE PART DETAILS - PRI; RING SET, PISTON (0.75)
(Superseded to 13013-ZF1-024)

Note: (Optional). (Honda Code 3018058).

$

$

Not available

2

Honda 13101-ZE7-010

SEE PART DETAILS - SUP; PISTON (STD)
(Superseded to 13101-ZE7-020)

Note: (Honda Code 3081718).

$

$

Not available

2

Honda 13102-ZE7-010

SEE PART DETAILS - SUP; PISTON (OS 0.25)

Note: (Optional). (Honda Code 3076924).

$

$

Not available

2

Honda 13103-ZE7-010

SEE PART DETAILS - SUP; PISTON (OS 0.50)

Note: (Optional). (Honda Code 3352622).

$50.99

$

Usually ships in 3-6 days

0

2

Honda 13104-ZE7-010

SEE PART DETAILS - PRI; PISTON (0.75)

Note: (Optional). (Honda Code 3352630).

$

$

Currently unavailable

3

Honda 13111-ZE1-000

PIN, PISTON

Note: (Honda Code 1426584).

$13.99

$

Usually ships in 3-6 days

0

4

Honda 13200-ZE7-000

ROD ASSY., CONNECTING
(Superseded to 13200-Z1V-600)

Note: (Honda Code 2289445).

$135.99

$

In Stock, only 1 left!

0

4

Honda 13200-ZE7-305

ROD ASSY., CONNECTING (US 0.25)

Note: (Optional). (Honda Code 2399913).

$

$

Not available

9

Honda 13310-ZE7-681

SEE PART DETAILS - PRI; CRANKSHAFT (HR215 TYPE)

Note: (Honda Code 4618427).

$288.99

$

Usually ships in 3-6 days

0

11

Honda 90001-ZE1-000

BOLT, CONNECTING ROD

Note: (Honda Code 1431055).

$3.99

$

In Stock, only 2 left!

0

12

Honda 90401-ZE7-W00

WASHER, THRUST (25.6MM)

Note: (Honda Code 4724555).

$7.49

$

In Stock, only 2 left!

0

13

Honda 90551-ZE1-000

CLIP, PISTON PIN (18MM)

Note: (Honda Code 2539120).

$1.49

$

In Stock, Qty 14

0
