GXV160 K1 N62 (GJ03) - Honda Engine, Made in USA (SN: GJ03-6100001 - GJ03-7999999) CARBURETOR Parts Diagram

Engine, Made in USA

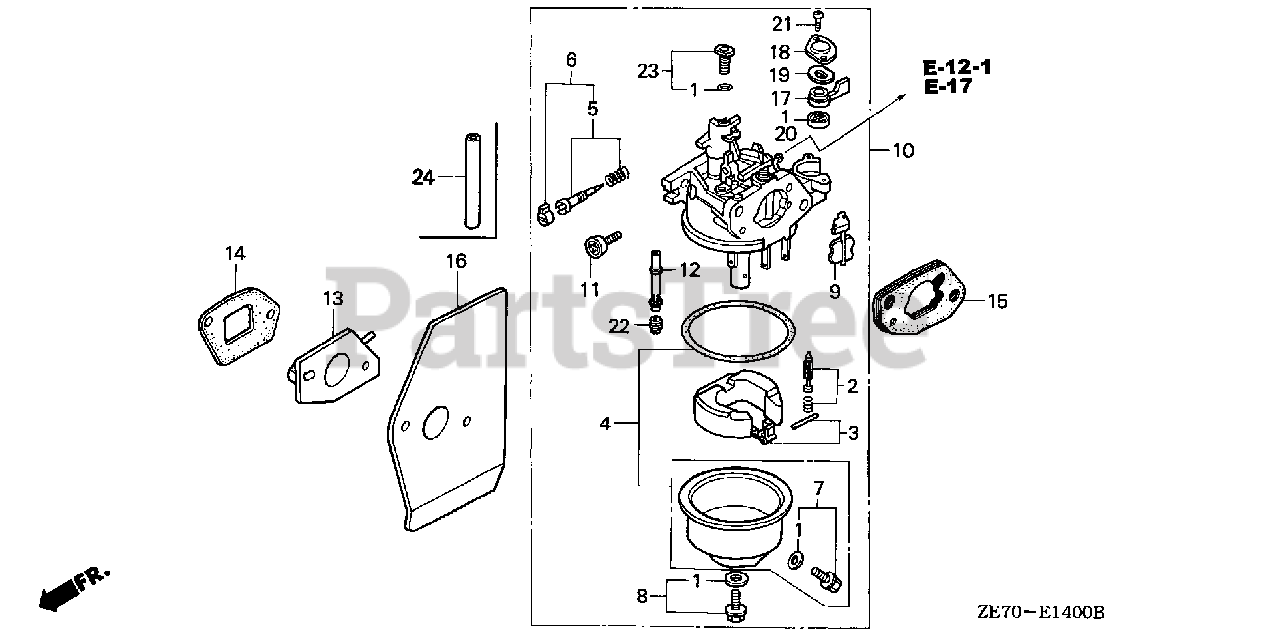

CARBURETOR Parts Diagram

  • Title

1

Honda 16010-ZE0-025

SEE PART DETAILS - PRI; GASKET SET

Note: (Honda Code 3440674).

$20.99

$

In Stock, Qty 6

0

2

Honda 16011-ZE0-005

VALVE SET, FLOAT

Note: (Honda Code 1441476).

$30.99

$

In Stock, only 1 left!

0

3

Honda 16013-ZE0-005

FLOAT SET

Note: (Honda Code 1441492).

$31.99

$

In Stock, only 1 left!

0

4

Honda 16015-ZE0-831

CHAMBER SET, FLOAT

Note: (Honda Code 2455608).

$38.99

$

In Stock, only 2 left!

0

6

Honda 16016-ZH7-W01

SEE PART DETAILS - PRI; SCREW SET

Note: (Honda Code 4219879).

$21.99

$

Usually ships in 3-6 days

0

7

Honda 16024-ZE1-811

SCREW SET, DRAIN

Note: (Honda Code 1672187).

$10.99

$

In Stock, only 3 left!

0

8

Honda 16028-ZE0-005

SEE PART DETAILS - PRI; SCREW SET B
(Superseded to 16028-ZK7-S91)

Note: (Honda Code 1441518).

$13.99

$

In Stock, only 1 left!

0

9

Honda 16045-ZE7-005

CHOKE SET

Note: (Honda Code 3352671).

$35.99

$

Usually ships in 3-6 days

0

10

Honda 16100-ZE7-W21

SEE PART DETAILS - PRI; CARBURETOR ASSY. (BE66C B)

Note: (Honda Code 5176193).

$115.99

$

Usually ships in 3-6 days

0

11

Honda 16124-ZE0-005

SCREW, THROTTLE STOP

Note: (Honda Code 1441559).

$17.99

$

In Stock, only 1 left!

0

12

Honda 16166-ZE7-W10

NOZZLE, MAIN

Note: (Honda Code 4713160).

$32.99

$

Usually ships in 3-6 days

0

13

Honda 16211-ZE7-000

INSULATOR, CARBURETOR

Note: (Honda Code 2289619).

$16.99

$

In Stock, only 2 left!

0

14

Honda 16212-ZE7-M10

SEE PART DETAILS - PRI; GASKET, INSULATOR

Note: (Honda Code 4479721).

$3.49

$

In Stock, Qty 11

0

15

Honda 16220-ZE6-010

SEE PART DETAILS - PRI; SPACER, CARBURETOR

Note: (Honda Code 2455640).

$8.49

$

In Stock, Qty 8

0

16

Honda 16221-ZE7-M11

SEE PART DETAILS - PRI; GASKET, CARBURETOR

Note: (Honda Code 4618443).

$17.99

$

In Stock, only 3 left!

0

17

Honda 16953-ZE1-406

SEE PART DETAILS - PRI; LEVER, VALVE

Note: Use up to Engine SN BE66C A. (Honda Code 5167358).

$14.99

$

Usually ships in 3-6 days

0

17

Honda 16953-ZE1-811

SEE PART DETAILS - SUP; LEVER, VALVE
(Superseded to 16953-ZE1-406)

Note: Use up to Engine SN BE66C A. (Honda Code 1819986).

$14.99

$

Usually ships in 3-6 days

0

17

Honda 16953-ZE1-812

LEVER, VALVE

Note: Use from Engine SN BE66C B. (Honda Code 5140876).

$10.99

$

In Stock, Qty 10

0

18

Honda 16954-ZE1-811

SEE PART DETAILS - SUP; PLATE, LEVER SETTING

Note: Use up to Engine SN BE66C A. (Honda Code 1807791).

$4.49

$

Usually ships in 0 days

0

18

Honda 16954-ZE1-812

SEE PART DETAILS - PRI; PLATE, LEVER SETTING

Note: Use from Engine SN BE66C B. (Honda Code 5148135).

$4.49

$

In Stock, only 1 left!

0

19

Honda 16956-ZE1-811

SPRING, VALVE LEVER

Note: (Honda Code 1807809).

$4.49

$

Usually ships in 3-6 days

0

20

Honda 16957-ZE1-812

SEE PART DETAILS - PRI; GASKET, VALVE

Note: (Honda Code 3440708).

$4.49

$

In Stock, Qty 20+

0

21

Honda 93500-03006-0H

SEE PART DETAILS - PRI; SCREW, PAN (3X6)

Note: Use from Engine SN BE66C B. (Honda Code 0561654).

$1.49

$

In Stock, only 3 left!

0

21

Honda 93500-03008-0G

SEE PART DETAILS - PRI; SCREW, PAN (3X8)

Note: Use up to Engine SN BE66C A. (Honda Code 0420505).

$

$

Not available

22

Honda 99101-ZH8-0600

SEE PART DETAILS - PRI; JET, MAIN (#60)

Note: (Optional). (Honda Code 6126650).

$

$

Not available

22

Honda 99101-ZH8-0620

SEE PART DETAILS - PRI; JET, MAIN (#62)

Note: (Optional). (Honda Code 6010227).

$

$

Currently unavailable

22

Honda 99101-ZH8-0650

JET, MAIN (#65)

Note: (Honda Code 5519988).

$

$

Not available

23

Honda 99204-ZE0-0350

JET SET, PILOT (#35)

Note: (Honda Code 1441609).

$23.99

$

In Stock, only 1 left!

0
