GXV160 K1 N62 (GJ03) - Honda Engine, Made in USA (SN: GJ03-6100001 - GJ03-7999999) CAMSHAFT Parts Diagram

Engine, Made in USA

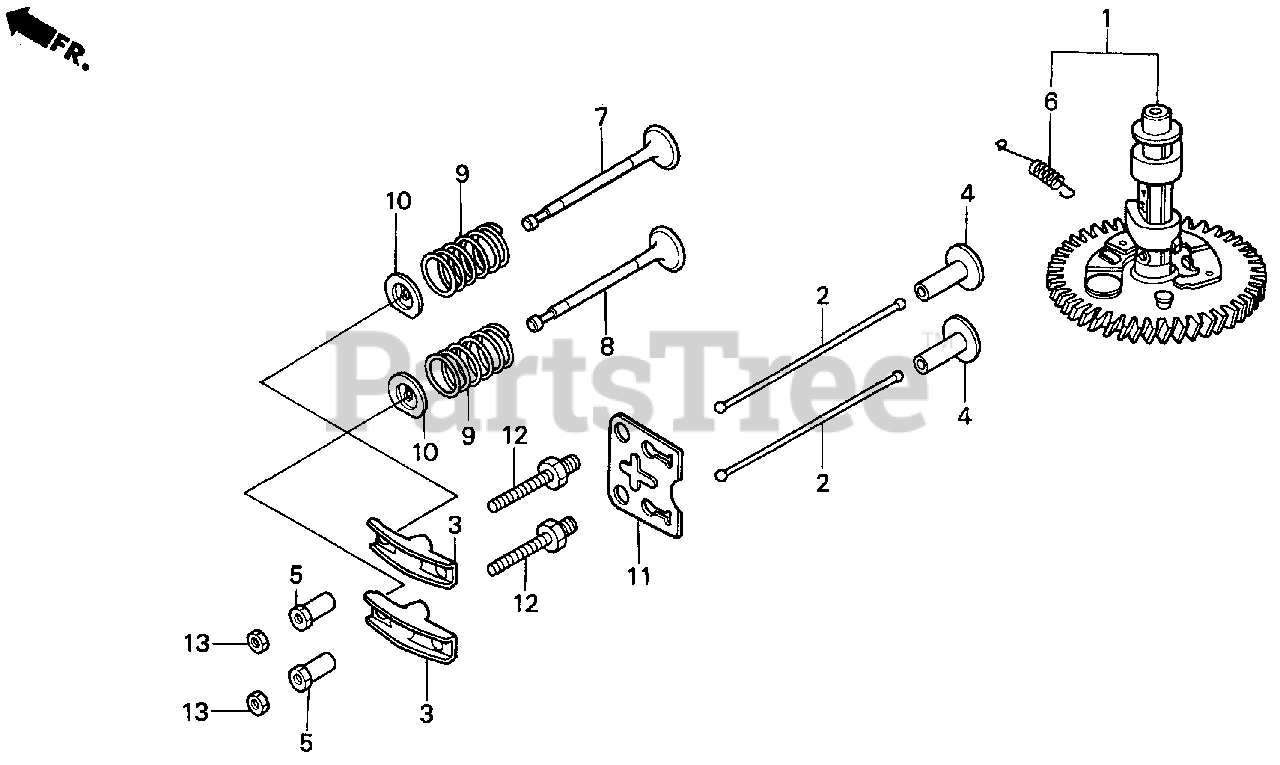

CAMSHAFT Parts Diagram

  • Title

1

Honda 14100-ZE7-000

CAMSHAFT ASSY.

Note: (Honda Code 2289502).

$125.99

$

Usually ships in 3-6 days

0

2

Honda 14410-ZE1-010

SEE PART DETAILS - PRI; ROD, PUSH

Note: (Honda Code 3352655).

$8.99

$

In Stock, only 2 left!

0

3

Honda 14431-ZE1-000

ARM, VALVE ROCKER

Note: (Honda Code 1426824).

$8.49

$

In Stock, only 2 left!

0

4

Honda 14441-ZE1-000

SEE PART DETAILS - SUP; LIFTER, VALVE
(Superseded to 14441-ZE1-010)

Note: (Honda Code 1426832).

$14.99

$

Usually ships in 3-6 days

0

4

Honda 14441-ZE1-010

SEE PART DETAILS - PRI; LIFTER, VALVE

Note: (Honda Code 5181383).

$14.99

$

Usually ships in 3-6 days

0

5

Honda 14451-ZE1-013

SEE PART DETAILS - PRI; PIVOT, ROCKER ARM
(Superseded to 14451-Z4M-000)

Note: (Honda Code 4300901).

$6.49

$

In Stock, Qty 5

0

6

Honda 14568-ZE1-000

SPRING, WEIGHT RETURN

Note: (Honda Code 1426907).

$3.49

$

In Stock, only 1 left!

0

7

Honda 14711-ZE7-000

SEE PART DETAILS - SUP; VALVE, IN.
(Superseded to 14711-ZF1-000)

Note: (Honda Code 2289510).

$21.99

$

In Stock, only 2 left!

0

7

Honda 14711-ZF1-000

SEE PART DETAILS - PRI; VALVE, IN.

Note: (Honda Code 3683455).

$21.99

$

In Stock, only 2 left!

0

8

Honda 14721-ZE7-000

VALVE, EX.

Note: (Honda Code 2289528).

$36.99

$

In Stock, only 1 left!

0

9

Honda 14751-ZE1-000

SPRING, VALVE

Note: (Honda Code 1426972).

$3.99

$

In Stock, only 3 left!

0

10

Honda 14771-ZE1-000

SEE PART DETAILS - PRI; RETAINER, IN. VALVE SPRING
(Superseded to 14771-Z0T-900)

Note: (Honda Code 1426980).

$1.49

$

In Stock, Qty 14

0

11

Honda 14791-ZE1-010

PLATE, PUSH ROD GUIDE

Note: (Honda Code 1899947).

$4.49

$

Usually ships in 3-6 days

0

12

Honda 90012-ZE0-010

BOLT, PIVOT (8MM)

Note: (Honda Code 1756964).

$8.99

$

In Stock, only 2 left!

0

13

Honda 90206-ZE1-000

NUT, PIVOT ADJ.

Note: (Honda Code 1431287).

$4.49

$

In Stock, Qty 6

0
