GXV160 K1 N42 (GJ03) - Honda Engine, Made in USA (SN: GJ03-6100001 - GJ03-7999999) CYLINDER HEAD Parts Diagram

Engine, Made in USA

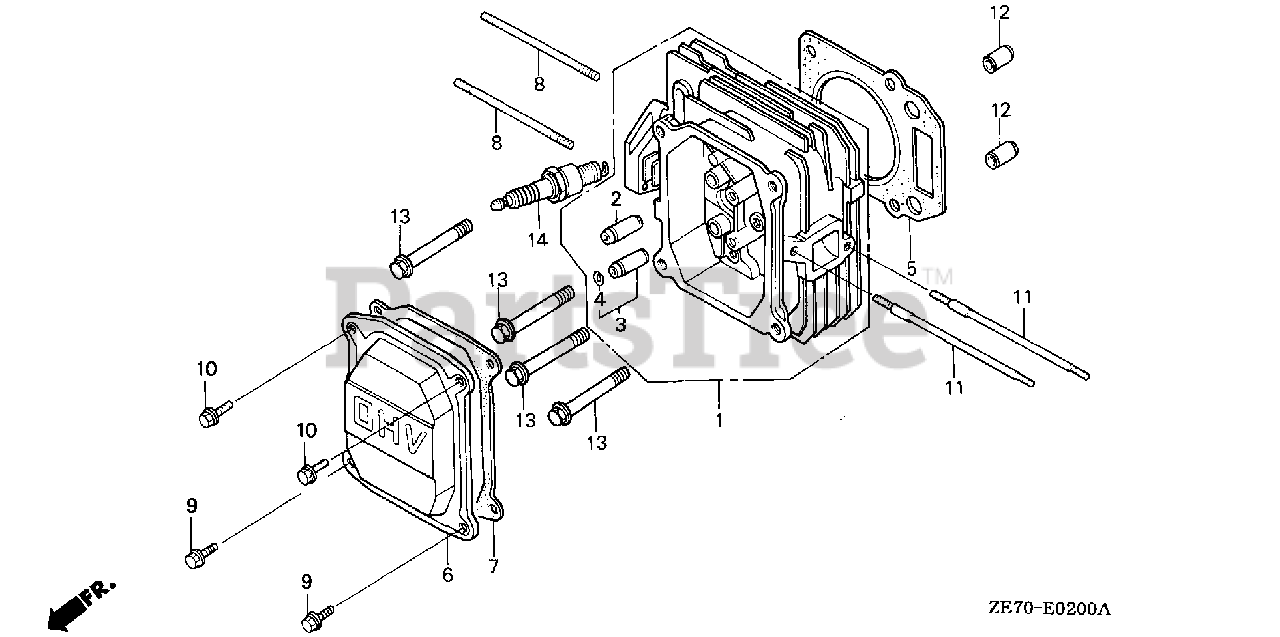

CYLINDER HEAD Parts Diagram

  • Title

1

Honda 122A0-ZE7-000

SEE PART DETAILS - SUP; CYLINDER HEAD

Note: (Honda Code 2289353).

$

$

Currently unavailable

1

Honda 12200-ZE7-405

SEE PART DETAILS - PRI; CYLINDER HEAD

Note: (Honda Code 7297773).

$205.99

$

Usually ships in 3-6 days

0

2

Honda 12204-ZE1-306

GUIDE, VALVE (OS)

Note: (Optional). (Honda Code 4165874).

$

$

Not available

3

Honda 12205-ZE1-315

SEE PART DETAILS - PRI; GUIDE, EX. VALVE (OS)

Note: (Optional). (Honda Code 1899848).

$10.99

$

In Stock, only 3 left!

0

4

Honda 12216-ZE5-300

CLIP, VALVE GUIDE

Note: (Honda Code 2399780).

$1.99

$

In Stock, Qty 18

0

5

Honda 12251-ZE7-000

GASKET, CYLINDER HEAD

Note: (Honda Code 2289361).

$10.99

$

In Stock, only 1 left!

0

6

Honda 12311-ZG9-800

COVER, HEAD

Note: (Honda Code 4428165).

$9.99

$

In Stock, only 2 left!

0

7

Honda 12391-ZE7-T00

GASKET, CYLINDER HEAD COVER

Note: (Honda Code 4311437).

$6.49

$

In Stock, only 2 left!

0

8

Honda 90048-ZC3-000

BOLT, STUD (6X85)

Note: (Honda Code 2734846).

$4.49

$

In Stock, only 3 left!

0

9

Honda 90013-883-000

SEE PART DETAILS - PRI; BOLT, FLANGE (6X12) (CT200)

Note: (Honda Code 0636845).

$1.99

$

In Stock, Qty 20+

0

10

Honda 90013-883-000

SEE PART DETAILS - PRI; BOLT, FLANGE (6X12) (CT200)

Note: (Honda Code 0636845).

$1.99

$

In Stock, Qty 20+

0

11

Honda 90043-ZE6-000

BOLT, STUD (6X109)

Note: (Honda Code 4618625).

$7.49

$

In Stock, only 2 left!

0

12

Honda 94301-10160

SEE PART DETAILS - PRI; PIN A, DOWEL (10X16)

Note: (Honda Code 0058206).

$3.49

$

In Stock, only 3 left!

0

13

Honda 95701-08050-00

SEE PART DETAILS - PRI; BOLT, FLANGE (8X50)

Note: (Honda Code 2935740).

$3.49

$

In Stock, Qty 5

0

14

Honda 98079-54846

SPARK PLUG (BPR4ES) (NGK)

Note: (Optional). (Honda Code 1521756).

$3.49

$

In Stock, only 2 left!

0

14

Honda 98079-54855

SEE PART DETAILS - PRI; SPARK PLUG (W14EPR-U) (DENSO)

Note: (Optional). (Honda Code 1521764).

$3.99

$

In Stock, only 3 left!

0

14

Honda 98079-55846

SEE PART DETAILS - PRI; SPARK PLUG (BPR5ES) (NGK)

Note: (Honda Code 1672443).

$3.49

$

In Stock, Qty 20+

0

14

Honda 98079-55855

SEE PART DETAILS - PRI; SPARK PLUG (W16EPR-U) (DENSO)

Note: (Honda Code 1672450).

$3.49

$

Usually ships in 3-6 days

0

14

Honda 98079-56846

SEE PART DETAILS - PRI; SPARK PLUG (BPR6ES) (NGK)

Note: (Optional). (Honda Code 1441112).

$3.49

$

In Stock, Qty 20+

0

14

Honda 98079-56855

SPARK PLUG (W20EPR-U) (DENSO)

Note: (Optional). (Honda Code 1441120).

$3.99

$

In Stock, Qty 11

0
