GXV160 K1 N1E2 (GJ03) - Honda Engine, Made in USA (SN: GJ03-6100001 - GJ03-7999999) FAN COVER Parts Diagram

Engine, Made in USA

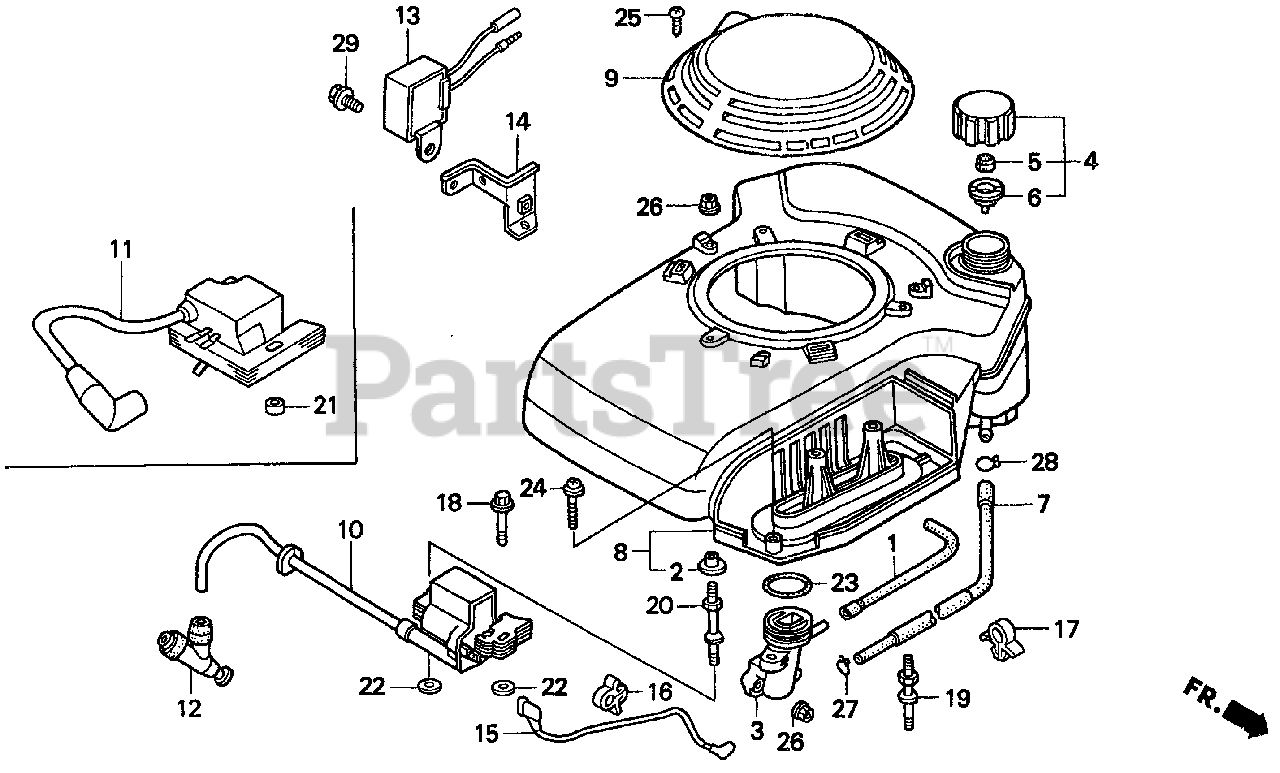

FAN COVER Parts Diagram

  • Title

1

Honda 15721-ZE7-000

TUBE, BREATHER

Note: (Honda Code 2289551).

$11.99

$

In Stock, only 2 left!

0

2

Honda 17216-PE2-003

COLLAR, AIR CLEANER

Note: (Honda Code 2029346).

$8.99

$

Usually ships in 3-6 days

0

3

Honda 17410-ZE7-W00

ELBOW, AIR CLEANER

Note: (Honda Code 4722526).

$32.99

$

In Stock, only 2 left!

0

4

Honda 17620-ZE7-000

SEE PART DETAILS - PRI; CAP ASSY., FUEL TANK
(Superseded to 17620-ZG9-000)

Note: (Honda Code 2289833).

$12.99

$

In Stock, only 1 left!

0

5

Honda 17622-888-010

SEE PART DETAILS - PRI; SPONGE, FUEL CAP BREATHER

Note: (Honda Code 0810341).

$2.49

$

In Stock, only 4 left!

0

6

Honda 17624-ZE7-000

GASKET, FUEL CAP

Note: (Honda Code 2507689).

$4.99

$

Usually ships in 3-6 days

0

7

Honda 17700-ZE7-W00

TUBE ASSY., FUEL TANK

Note: (Honda Code 4724464).

$13.99

$

Usually ships in 3-6 days

0

8

Honda 19610-ZE7-W01ZA

COVER, FAN *NH1* (BLACK)

Note: (Honda Code 5031455).

$26.99

$

Usually ships in 3-6 days

0

8

Honda 19610-ZE7-W01ZB

COVER, FAN *R8* (TEXTURED) (BRIGHT RED)

Note: (Honda Code 5031463).

$

$

Currently unavailable

9

Honda 19615-ZG9-800ZA

SEE PART DETAILS - SUP; HOOD, FAN COVER *NH1* (TEXTURED) (BLACK)
(Superseded to 19615-ZG9-801ZA)

Note: (Honda Code 4536967).

$28.99

$

In Stock, only 1 left!

0

9

Honda 19615-ZG9-800ZB

HOOD, FAN COVER *R8* (TEXTURED) (BRIGHT RED)

Note: (Honda Code 4536975).

$

$

Not available

9

Honda 19615-ZG9-801ZB

HOOD, FAN COVER *R8* (BRIGHT RED)

Note: (Honda Code 6128516).

$48.99

$

Usually ships in 3-6 days

0

10

Honda 30500-ZE7-033

SEE PART DETAILS - SUP; COIL ASSY., IGNITION
(Superseded to 30500-ZE7-063)

Note: (Honda Code 4572293).

$91.99

$

In Stock, only 1 left!

0

12

Honda 30700-ZE6-023

SEE PART DETAILS - PRI; CAP ASSY., NOISE SUPPRESSOR

Note: (Honda Code 3808649).

$24.99

$

Usually ships in 3-6 days

0

13

Honda 31700-ZE7-003

RECTIFIER, SILICON

Note: (Honda Code 2290187).

$64.99

$

Usually ships in 3-6 days

0

14

Honda 31710-ZE7-000

STAY, RECTIFIER

Note: (Honda Code 2400125).

$11.99

$

Usually ships in 3-6 days

0

15

Honda 36101-ZE7-020

WIRE, STOP SWITCH

Note: (Honda Code 4608527).

$16.99

$

Usually ships in 3-6 days

0

16

Honda 36103-ZE1-000

HOLDER, STOP SWITCH WIRE

Note: (Honda Code 1429141).

$2.49

$

In Stock, only 1 left!

0

17

Honda 46392-SC2-003

CLAMP, BRAKE PIPE

Note: (Honda Code 4547576).

$5.49

$

Usually ships in 3-6 days

0

18

Honda 90015-883-000

BOLT, FLANGE (6X28)

Note: (Honda Code 0636852).

$3.99

$

In Stock, only 3 left!

0

19

Honda 90041-ZE7-W00

BOLT A, STUD

Note: (Honda Code 4717070).

$5.99

$

Usually ships in 3-6 days

0

20

Honda 90042-ZE7-W00

BOLT, STUD (IGN COIL)

Note: (Honda Code 4717088).

$6.99

$

Usually ships in 3-6 days

0

22

Honda 90581-GB5-610

WASHER, PLAIN (6MM)

Note: (Honda Code 2401198).

$3.49

$

Usually ships in 3-6 days

0

23

Honda 91301-ZG9-800

O-RING (33.3X3.5)

Note: (Honda Code 4429056).

$

$

Not available

24

Honda 93891-06035-10

SCREW-WASHER (6X35)

Note: (Honda Code 4809265).

$1.49

$

In Stock, Qty 7

0

25

Honda 93913-24580

SCREW, TAPPING (4X20)

Note: (Honda Code 4311718).

$0.99

$

In Stock, Qty 7

0

26

Honda 94050-06000

SEE PART DETAILS - PRI; NUT, FLANGE (6MM)

Note: (Honda Code 0471623).

$0.99

$

In Stock, Qty 20+

0

27

Honda 95002-02080

CLIP, TUBE (B8)

Note: (Honda Code 0250647).

$2.49

$

In Stock, Qty 11

0

28

Honda 95002-02100

SEE PART DETAILS - PRI; CLIP, TUBE (B10)

Note: Use up to Engine SN 6149216. (Honda Code 0250985).

$2.49

$

In Stock, only 2 left!

0

28

Honda 95002-50000

SEE PART DETAILS - PRI; CLIP, TUBE (C9)

Note: Use from Engine SN 6149217. (Honda Code 0053447).

$1.99

$

In Stock, only 3 left!

0

29

Honda 95701-06010-00

SEE PART DETAILS - PRI; BOLT, FLANGE (6X10)

Note: (Honda Code 2410876).

$1.99

$

In Stock, Qty 14

0
