GXV160 K1 N12 (GJ03) - Honda Engine, Made in USA (SN: GJ03-6100001 - GJ03-7999999) CYLINDER Parts Diagram

Engine, Made in USA

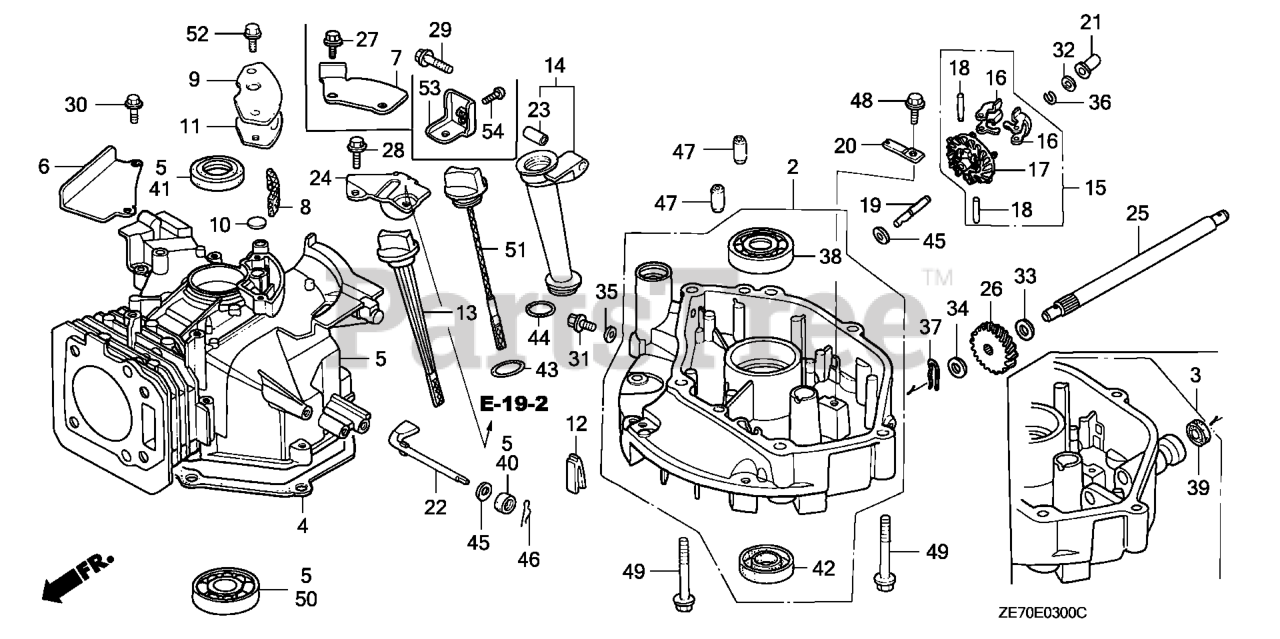

CYLINDER Parts Diagram

  • Title

2

Honda 11300-Z1V-406

PAN ASSY., OIL

$175.99

$

In Stock, only 1 left!

0

4

Honda 11381-ZE7-M10

SEE PART DETAILS - PRI; GASKET, OIL PAN

$15.99

$

In Stock, only 3 left!

0

5

Honda 12000-Z2J-405

SEE PART DETAILS - PRI; CYLINDER ASSY.

$536.99

$

In Stock, only 2 left!

0

6

Honda 12125-ZE7-000

PLATE, GUIDE

$11.99

$

Usually ships in 3-6 days

0

7

Honda 12126-ZE7-W00

PLATE A, GUIDE

$8.49

$

Usually ships in 3-6 days

0

8

Honda 12367-883-003

SEE PART DETAILS - PRI; FILTER, BREATHER (Honda Code 1083484).

$3.99

$

Usually ships in 3-6 days

0

9

Honda 12370-ZE7-000

COVER, BREATHER

$11.99

$

Usually ships in 3-6 days

0

10

Honda 12372-ZE7-000

VALVE, BREATHER

$4.99

$

Usually ships in 3-6 days

0

11

Honda 12373-ZE7-000

GASKET, BREATHER COVER

$3.49

$

Usually ships in 3-6 days

0

12

Honda 15335-ZE7-000

RUBBER, OIL RETURN

$4.49

$

Usually ships in 3-6 days

0

13

Honda 15620-ZE6-810

SEE PART DETAILS - PRI; GAUGE, OIL LEVEL Use up to Engine SN 1257294.

$12.99

$

In Stock, only 1 left!

0

14

Honda 15630-ZE6-810

EXTENSION, OIL FILLER (106MM) (Honda Code 3337870).

$56.99

$

In Stock, only 1 left!

0

15

Honda 16510-ZE6-000

GOVERNOR ASSY. (Honda Code 3337904).

$25.99

$

In Stock, only 1 left!

0

16

Honda 16511-ZE1-000

WEIGHT, GOVERNOR (Honda Code 1427228).

$4.49

$

Usually ships in 3-6 days

0

17

Honda 16512-ZE6-000

HOLDER, GOVERNOR WEIGHT (Honda Code 1452846).

$15.99

$

Usually ships in 3-6 days

0

18

Honda 16513-ZE1-000

PIN, GOVERNOR WEIGHT (Honda Code 1427244).

$2.49

$

Usually ships in 3-6 days

0

19

Honda 16515-ZE6-010

SEE PART DETAILS - PRI; SHAFT, GOVERNOR HOLDER (Honda Code 7338890).

$7.49

$

Usually ships in 3-6 days

0

20

Honda 16525-ZE6-010

SEE PART DETAILS - PRI; PLATE, GOVERNOR SHAFT HOLDER (Honda Code 3337912).

$7.49

$

Usually ships in 3-6 days

0

21

Honda 16531-ZE1-000

SEE PART DETAILS - PRI; SLIDER, GOVERNOR

$3.49

$

In Stock, Qty 8

0

22

Honda 16541-ZE7-000

SHAFT, GOVERNOR ARM (Honda Code 2289643).

$15.99

$

Usually ships in 3-6 days

0

23

Honda 17240-ZE6-000

COLLAR, EXTENSION Use up to Engine SN 1257294.

$4.99

$

In Stock, only 1 left!

0

27

Honda 90013-883-000

SEE PART DETAILS - PRI; BOLT, FLANGE (6X12) (CT200) (Honda Code 0636845).

$2.49

$

In Stock, Qty 17

0

29

Honda 90017-883-000

SEE PART DETAILS - PRI; BOLT, FLANGE (6X32) (Honda Code 0636076).

$3.49

$

In Stock, only 2 left!

0

30

Honda 90022-888-010

BOLT, FLANGE (6X20) (CT200) (Honda Code 0671552).

$2.99

$

In Stock, only 2 left!

0

31

Honda 90131-ZE1-000

SEE PART DETAILS - PRI; BOLT, DRAIN PLUG

$3.49

$

In Stock, only 2 left!

0

32

Honda 90451-ZE1-000

SEE PART DETAILS - PRI; WASHER, THRUST (6MM) (Honda Code 2413862).

$2.49

$

In Stock, only 2 left!

0

35

Honda 90601-ZE1-000

WASHER, DRAIN PLUG (10.2MM) (Honda Code 1436583).

$1.49

$

In Stock, Qty 20+

0

36

Honda 90602-ZE1-000

SEE PART DETAILS - PRI; CLIP, GOVERNOR HOLDER (Honda Code 2456697).

$1.99

$

In Stock, only 3 left!

0

40

Honda 91231-891-003

OIL SEAL (6X11X4) (Honda Code 0801043).

$3.49

$

In Stock, only 1 left!

0

41

Honda 91201-ZG9-U71

SEE PART DETAILS - PRI; OIL SEAL (25X38X7) (Honda Code 5230073).

$4.99

$

In Stock, Qty 7

0

41

Honda 91252-888-003

SEE PART DETAILS - SUP; OIL SEAL (25X38X7) (ARAI) (Honda Code 0671628).
(Superseded to 91201-ZG9-U71)

$4.99

$

In Stock, Qty 7

0

42

Honda 91252-894-004

SEE PART DETAILS - PRI; OIL SEAL (25.4X40X7) (Honda Code 0821140).

$13.99

$

In Stock, only 1 left!

0

43

Honda 91301-ZE9-003

SEE PART DETAILS - PRI; O-RING (22.5X2.2) Use from Engine SN 1257295.

$2.49

$

In Stock, Qty 12

0

44

Honda 91301-805-000

SEE PART DETAILS - PRI; O-RING (26X2.7) (Honda Code 0065185).

$5.49

$

In Stock, Qty 10

0

45

Honda 94101-06800

SEE PART DETAILS - PRI; WASHER, PLAIN (6MM) (Honda Code 0345900).

$0.99

$

In Stock, Qty 20+

0

46

Honda 94251-08000

SEE PART DETAILS - PRI; PIN, LOCK (8MM) (Honda Code 0115527).

$1.99

$

In Stock, Qty 9

0

47

Honda 94301-08140

SEE PART DETAILS - PRI; PIN A, DOWEL (8X14) (Honda Code 0069310).

$2.99

$

In Stock, Qty 8

0

48

Honda 95701-06012-08

SEE PART DETAILS - PRI; BOLT, FLANGE (6X12) Use from Engine SN 2086984.

$2.49

$

In Stock, only 1 left!

0

49

Honda 95701-08050-00

SEE PART DETAILS - PRI; BOLT, FLANGE (8X50) (Honda Code 2935740).

$3.49

$

In Stock, Qty 5

0

50

Honda 96100-62050-00

SEE PART DETAILS - PRI; BEARING, RADIAL BALL (6205) (Honda Code 0636977).

$25.99

$

In Stock, only 1 left!

0

52

Honda 90014-952-000

BOLT, FLANGE (6X14) (Honda Code 0803619).

$3.49

$

In Stock, only 3 left!

0
