GXV160 K1 A1T (GJ03) - Honda Engine, Made in USA (SN: GJ03-6100001 - GJ03-7999999) CRANKSHAFT@PISTON Parts Diagram

Engine, Made in USA

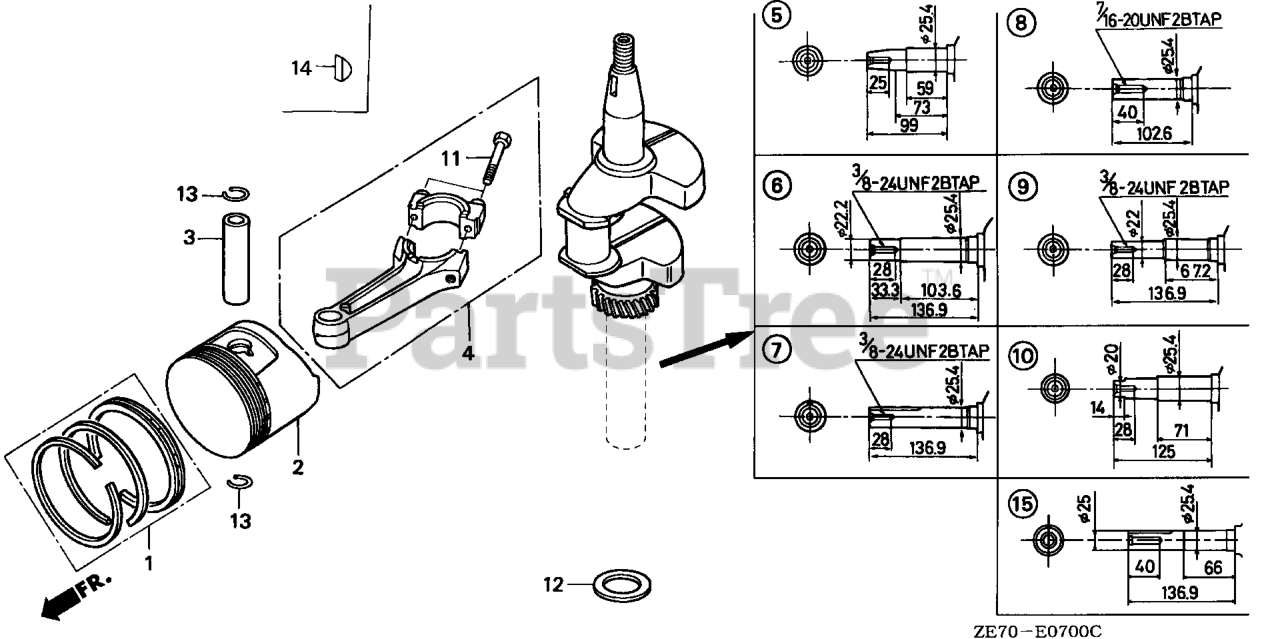

CRANKSHAFT@PISTON Parts Diagram

  • Title

1

Honda 13010-ZL0-003

SEE PART DETAILS - PRI; RING SET, PISTON (STD) (TEIKOKU)

$54.99

$

In Stock, only 2 left!

0

1

Honda 13010-ZL0-004

RING SET, PISTON (STD.) (NIPPON)

$35.99

$

In Stock, only 2 left!

0

1

Honda 13011-ZL0-003

SEE PART DETAILS - PRI; RING SET, PISTON (OS 0.25) Use from Engine SN 7603339.

Note: (Optional)

$60.99

$

Usually ships in 3-6 days

0

1

Honda 13011-ZL0-004

RING SET, PISTON (0.25) (NIPPON) Use up to Engine SN 1314912.

Note: (Optional)

$

$

Not available

1

Honda 13012-ZL0-003

SEE PART DETAILS - PRI; RING SET, PISTON (OS 0.50) Use from Engine SN 7603339.

Note: (Optional)

$60.99

$

Usually ships in 3-6 days

0

1

Honda 13012-ZL0-004

RING SET, PISTON (0.50) (NIPPON) Use up to Engine SN 1314912.

Note: (Optional)

$

$

Not available

1

Honda 13013-ZL0-003

SEE PART DETAILS - PRI; RING SET, PISTON (0.75) (TEIKOKU) Use up to Engine SN 1314912.

Note: (Optional)

$60.99

$

Usually ships in 3-6 days

0

1

Honda 13013-ZL0-004

RING SET, PISTON (0.75) (NIPPON) Use up to Engine SN 1314912.

Note: (Optional)

$39.99

$

In Stock, only 1 left!

0

2

Honda 13102-ZE7-020

SEE PART DETAILS - PRI; PISTON (0.25)

Note: (Optional)

$47.99

$

Usually ships in 3-6 days

0

2

Honda 13104-ZE7-020

SEE PART DETAILS - PRI; PISTON (0.75)

Note: (Optional)

$47.99

$

Usually ships in 3-6 days

0

2

Honda 13101-ZE7-020

SEE PART DETAILS - PRI; PISTON (STD)

$

$

Not available

2

Honda 13103-ZE7-020

SEE PART DETAILS - PRI; PISTON (OS 0.50)

Note: (Optional)

$50.99

$

Usually ships in 3-6 days

0

3

Honda 13111-ZE1-000

PIN, PISTON (Honda Code 1426584).

$12.99

$

Usually ships in 3-6 days

0

4

Honda 13200-ZE7-305

ROD ASSY., CONNECTING (0.25 LOWER SIZE) (NOT AVAILABLE)

Note: (Optional)

$

$

Not available

4

Honda 13200-Z1V-600

SEE PART DETAILS - PRI; ROD ASSY., CONNECTING (IDENT MARK Z)

$130.99

$

In Stock, only 1 left!

0

11

Honda 90001-ZE1-000

BOLT, CONNECTING ROD (Honda Code 1431055).

$3.99

$

In Stock, only 2 left!

0

12

Honda 90401-ZE7-W00

WASHER, THRUST (25.6MM)

$6.99

$

In Stock, only 2 left!

0

13

Honda 90551-ZE1-000

CLIP, PISTON PIN (18MM) (Honda Code 2539120).

$1.49

$

In Stock, Qty 20+

0

15

Honda 13310-ZE7-V10

CRANKSHAFT

$204.99

$

Usually ships in 3-6 days

0
